Sale!

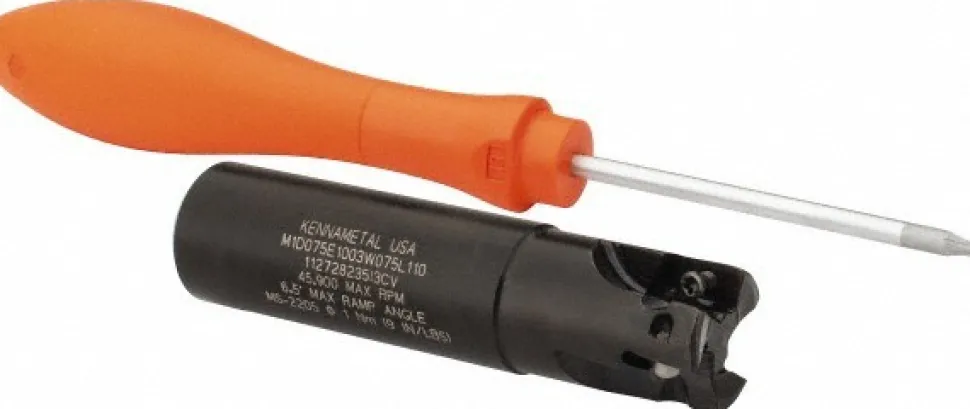

Indexable Square-Shoulder End Mill: M1D075E1003W075L110, 3/4″ Cut Dia, 0.398″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
Original price was: 521,00 $.134,89 $Current price is: 134,89 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter: 3/4 |
| Overall Length (Decimal Inch): 3.1300 | Maximum Depth of Cut (Decimal Inch): 0.3980 |
| Cutter Style: Mill 1-10 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Insert Holding Method: Screw | Lead Angle: 0 |
| Head Length (Decimal Inch): 1.1000 | Maximum RPM: 45900 |
| Coolant Hole Diameter (Decimal Inch): 0.2360 | Insert Compatibility: EP10..; EC10.. |
| ISO Number: M1D075E1003W075L110 | UNSPSC Code: 27112803 |
| Number Of Flutes: 3 | Number Of Cutter Inserts: 3 |
| Coolant Through: Yes | Country of Origin: Bulgaria |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 3.1300 | |
| Maximum Depth of Cut (Decimal Inch): 0.3980 | |
| Cutter Style: Mill 1-10 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0 | |
| Head Length (Decimal Inch): 1.1000 | |
| Maximum RPM: 45900 | |
| Coolant Hole Diameter (Decimal Inch): 0.2360 | |
| Insert Compatibility: EP10..; EC10.. | |
| ISO Number: M1D075E1003W075L110 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 74022948 |
| Mfr# | 3742554 |
| Big Book# | 709 |
