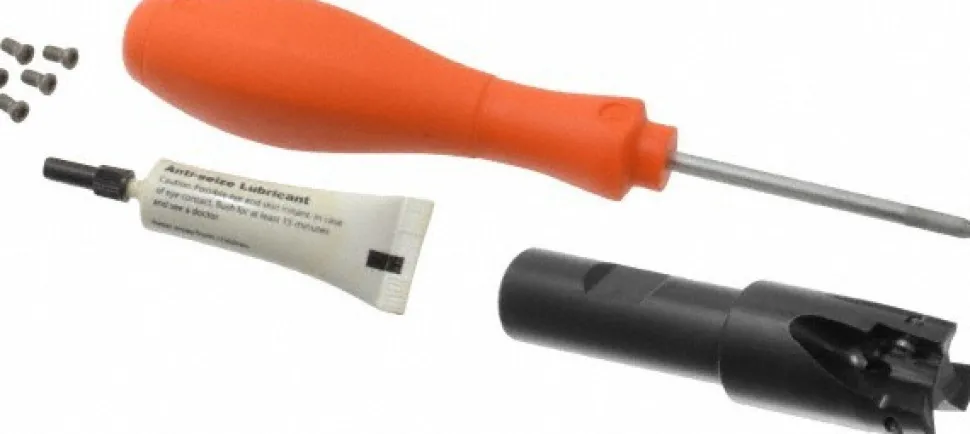

Indexable Square-Shoulder End Mill: M1D100E1403W075L175, 1″ Cut Dia, 0.575″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
130,99 $
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 in | Cutting Diameter: 1 |
| Overall Length (Decimal Inch): 3.7800 | Maximum Depth of Cut (Decimal Inch): 0.5750 |
| Cutter Style: Mill 1 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Insert Holding Method: Screw | Lead Angle: 0 |
| Head Length (Decimal Inch): 1.7500 | Maximum RPM: 39200 |
| Insert Compatibility: EP14..; EC14.. | ISO Number: M1D100E1403W075L175 |
| UNSPSC Code: 27112803 | Number Of Flutes: 3 |
| Number Of Cutter Inserts: 3 | Coolant Through: Yes |
| Country of Origin: Brazil | |
| Cutting Diameter (Decimal Inch): 1.0000 in | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 3.7800 | |
| Maximum Depth of Cut (Decimal Inch): 0.5750 | |
| Cutter Style: Mill 1 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0 | |
| Head Length (Decimal Inch): 1.7500 | |
| Maximum RPM: 39200 | |
| Insert Compatibility: EP14..; EC14.. | |
| ISO Number: M1D100E1403W075L175 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes | |
| Country of Origin: Brazil |
| MSC# | 75533968 |
| Mfr# | 2479507 |
| Big Book# | 711 |
