Sale!

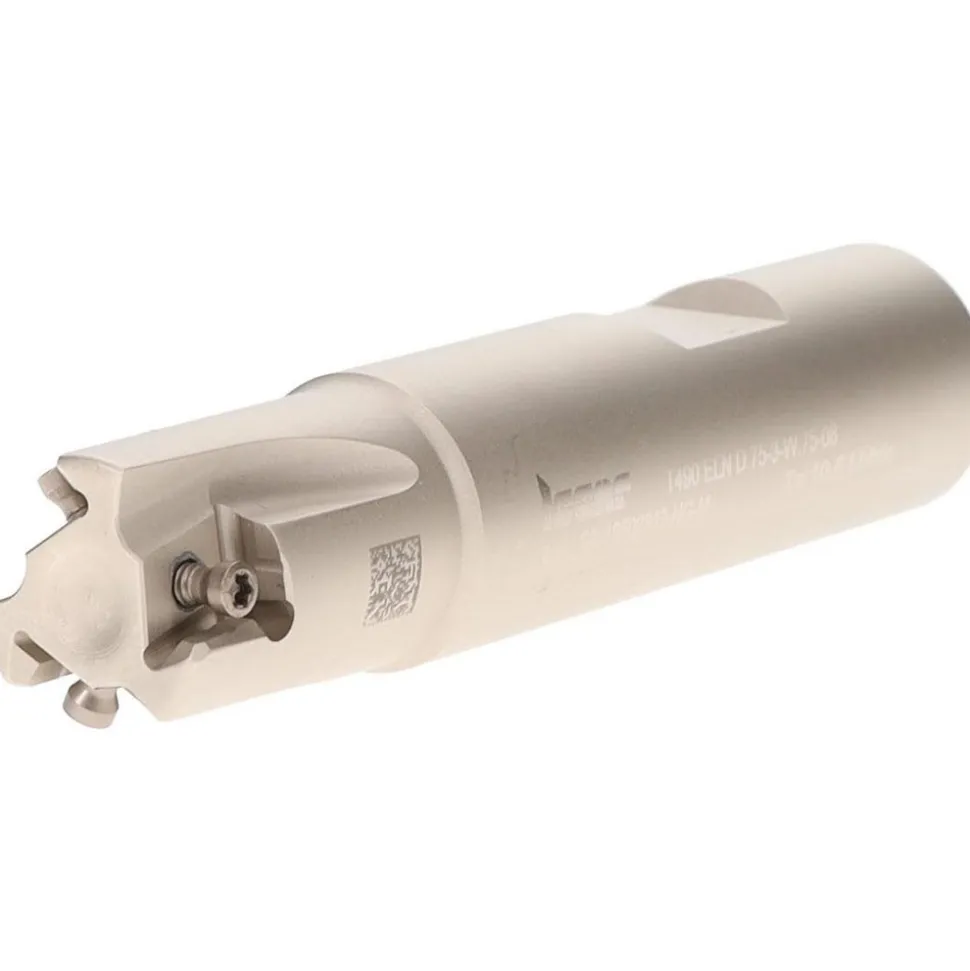

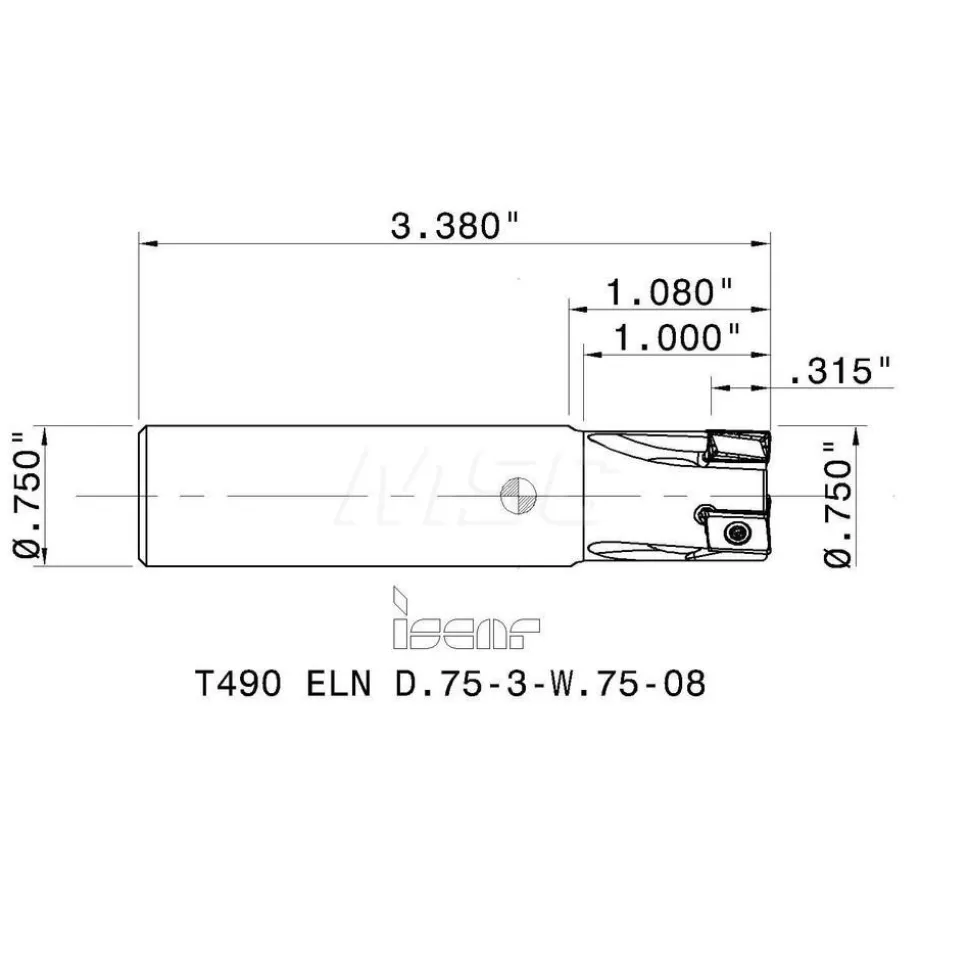

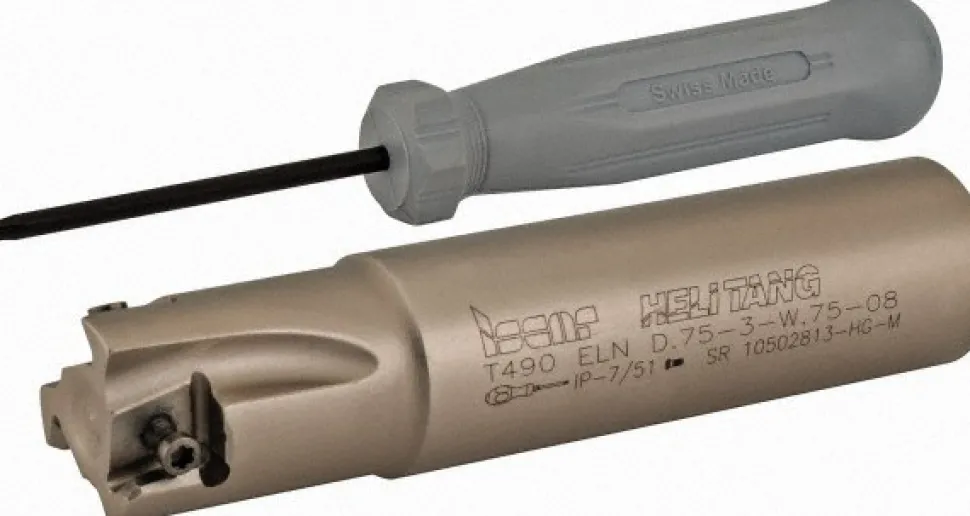

Indexable Square-Shoulder End Mill: T490ELND.75-3-W.75-08, 3/4″ Cut Dia, 0.315″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
Original price was: 456,00 $.130,89 $Current price is: 130,89 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter: 3/4 |
| Overall Length (Decimal Inch): 3.3800 | Maximum Depth of Cut (Decimal Inch): 0.3150 |
| Cutter Style: T490 ELN-08 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Insert Holding Method: Screw | Tool Material: Solid Carbide |
| Series: Helitang | Flute Type: Helical |
| Lead Angle: 90 | Shank Length (Decimal Inch): 2.3000 |
| Head Length (Decimal Inch): 1.0800 | Tool Application: Milling |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | Insert Compatibility: T490 LN.T 0804 |
| UNSPSC Code: 27112803 | Number Of Flutes: 3 |
| Usable Length (Decimal Inch): 1.0000 | Number Of Cutter Inserts: 4 |
| Coolant Through: No | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 3.3800 | |
| Maximum Depth of Cut (Decimal Inch): 0.3150 | |
| Cutter Style: T490 ELN-08 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Tool Material: Solid Carbide | |
| Series: Helitang | |
| Flute Type: Helical | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.3000 | |
| Head Length (Decimal Inch): 1.0800 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Insert Compatibility: T490 LN.T 0804 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Usable Length (Decimal Inch): 1.0000 | |
| Number Of Cutter Inserts: 4 | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 93828283 |
| Mfr# | 3105587 |
