Sale!

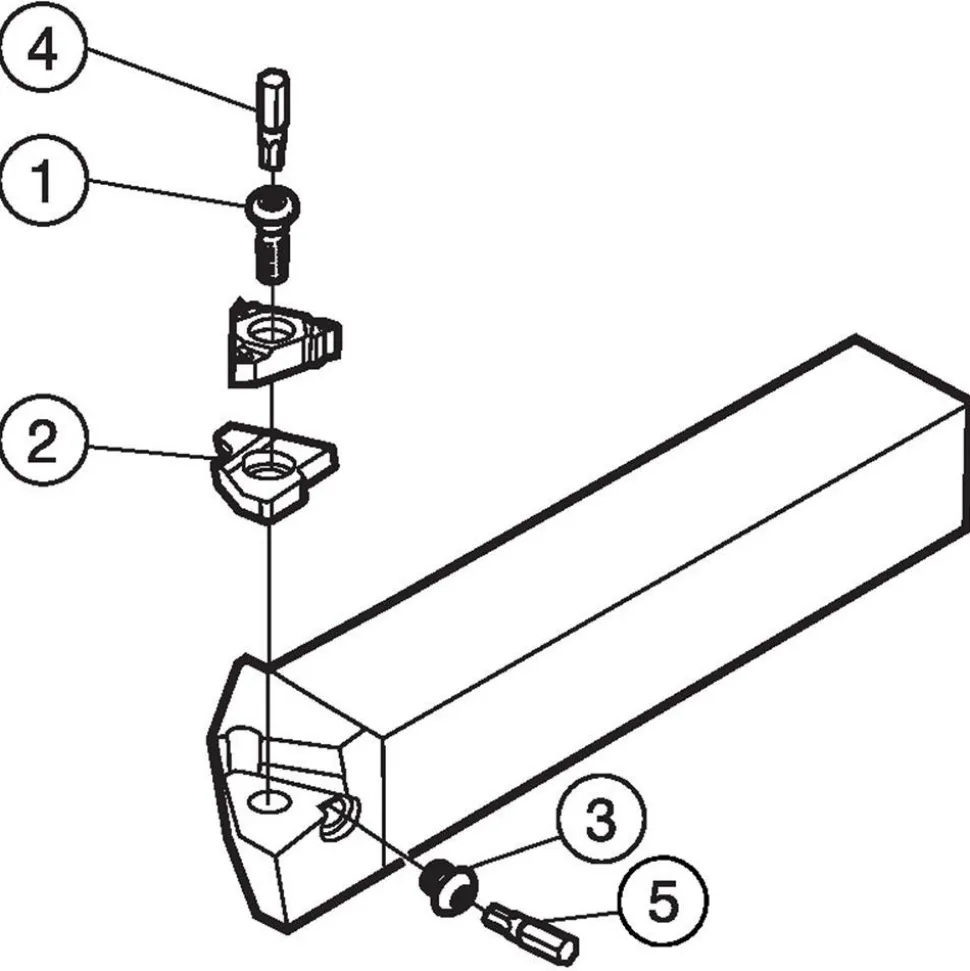

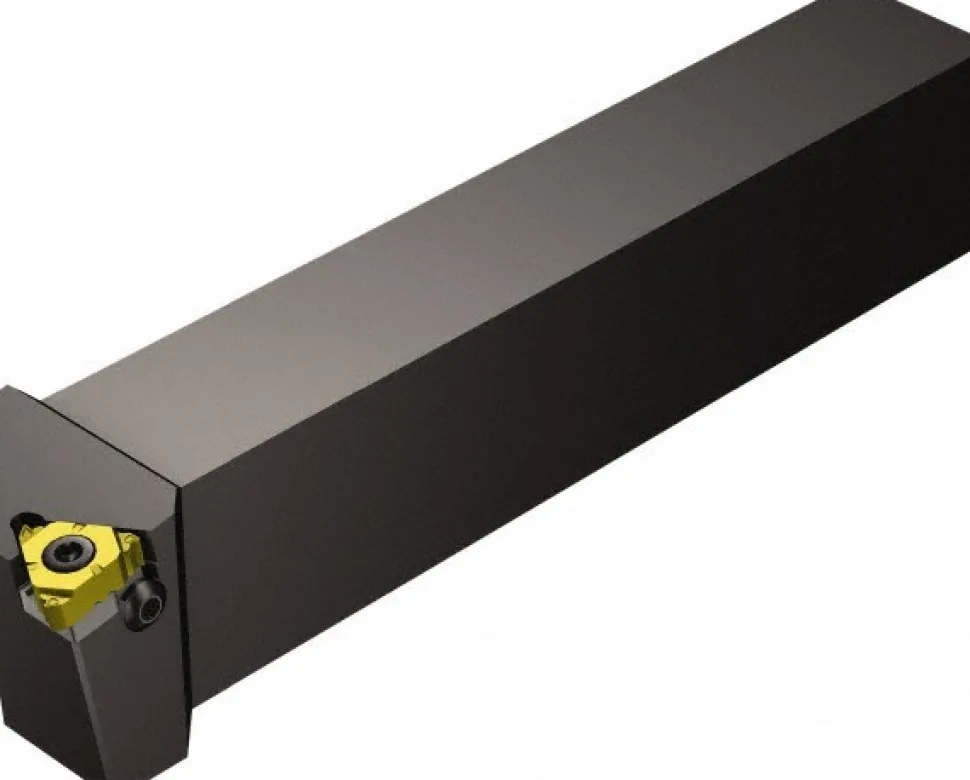

Indexable Threading Toolholder: External, Right Hand, 3/4 x 3/4″ Shank
Original price was: 273,00 $.136,99 $Current price is: 136,99 $.
Specifications
| Thread Type: External | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 0.7500 | Shank Width/Diameter (Inch): 3/4 |
| Toolholder Style: 266RFG | Insert Compatibility: 266RG to 16 |
| Insert Holding Method: Screw | Shank Height (Decimal Inch): 0.7500 |
| Shank Height (Inch): 3/4 | Shank Length (Inch): 4-1/2 |
| Shank Length (Decimal Inch): 4.5000 | Overall Length (Inch): 4-1/2 |
| Overall Length (Decimal Inch): 4.5000 | Back of Bar to Cutting Edge (Inch): 4-1/2 |
| Back of Bar to Cutting Edge (Decimal Inch): 4.5000 | Center to Cutting Edge (mm): 25.40 |
| Center to Cutting Edge (Decimal Inch): 1.0000 | Insert Inscribed Circle (Decimal Inch): 0.3750 |
| Insert Inscribed Circle (Inch): 3/8 | UNSPSC Code: 23291800 |
| Toolholder Material: Steel | Coolant Through: No |
| Series: CoroThread 266 | Country of Origin: Sweden |
| Thread Type: External | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 0.7500 | |
| Shank Width/Diameter (Inch): 3/4 | |
| Toolholder Style: 266RFG | |
| Insert Compatibility: 266RG to 16 | |
| Insert Holding Method: Screw | |
| Shank Height (Decimal Inch): 0.7500 | |
| Shank Height (Inch): 3/4 | |
| Shank Length (Inch): 4-1/2 | |
| Shank Length (Decimal Inch): 4.5000 | |
| Overall Length (Inch): 4-1/2 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Back of Bar to Cutting Edge (Inch): 4-1/2 | |
| Back of Bar to Cutting Edge (Decimal Inch): 4.5000 | |
| Center to Cutting Edge (mm): 25.40 | |
| Center to Cutting Edge (Decimal Inch): 1.0000 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| UNSPSC Code: 23291800 | |
| Toolholder Material: Steel | |
| Coolant Through: No | |
| Series: CoroThread 266 | |
| Country of Origin: Sweden |
| MSC# | 32130270 |
| Mfr# | 5757851 |
