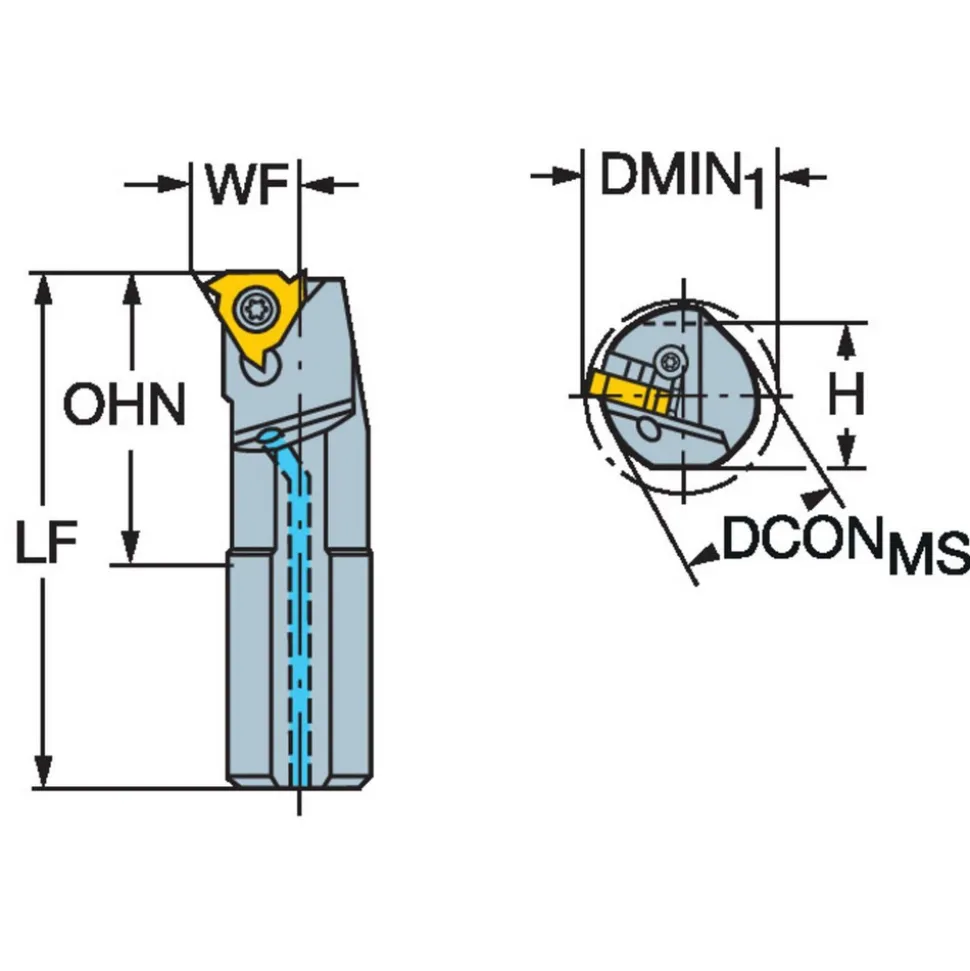

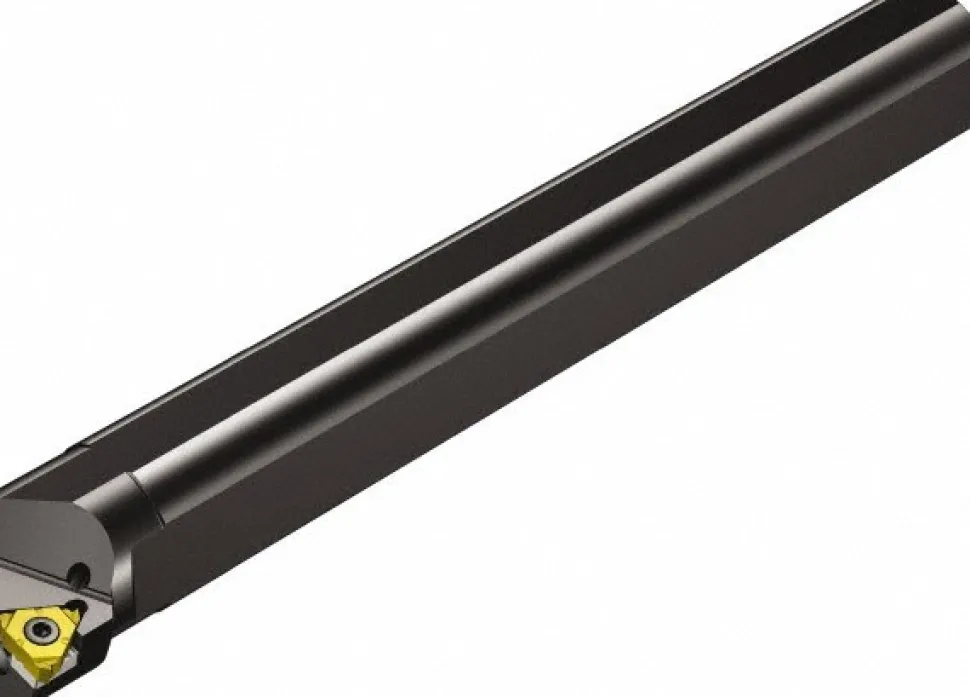

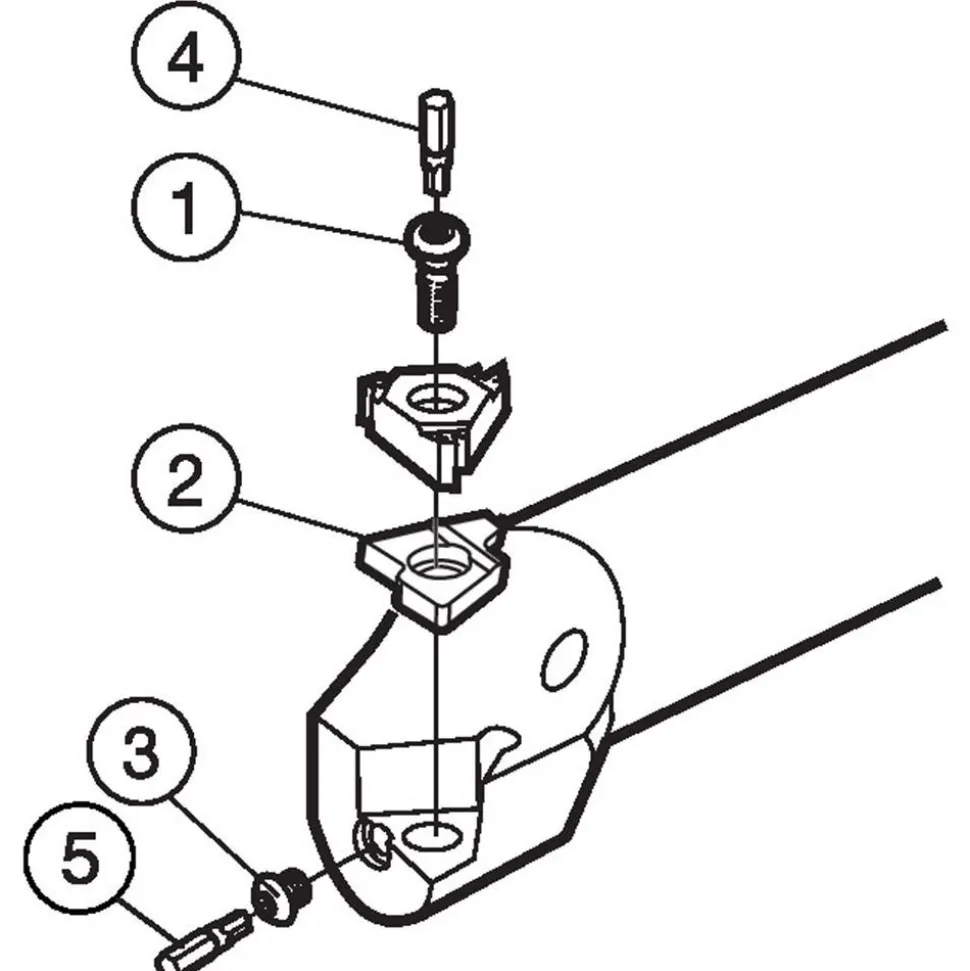

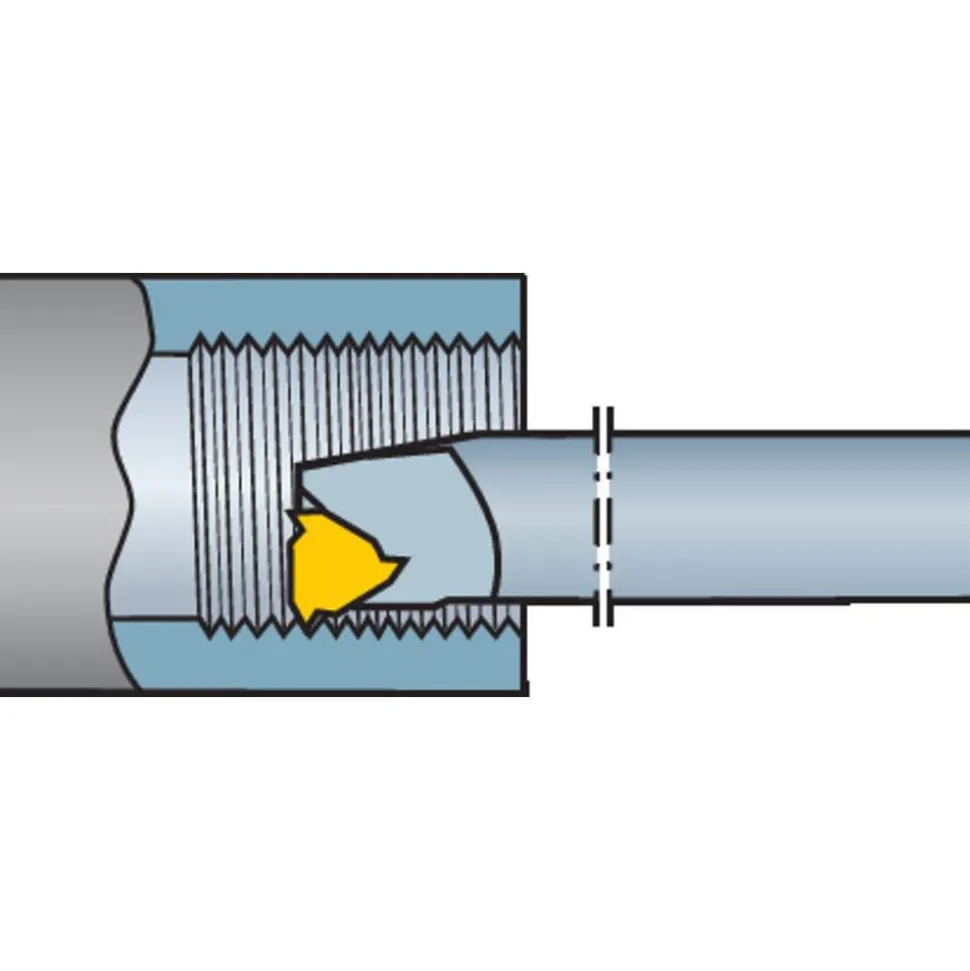

Indexable Threading Toolholder: Internal & External, Right Hand, 18.01 x 3/4″ Shank
134,89 $
Specifications
| Thread Type: Internal; External | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 0.7500 | Shank Width/Diameter (Inch): 3/4 |
| Toolholder Style: 266RKF | Insert Compatibility: 266RL to 16 |
| Insert Holding Method: Screw | Shank Height (mm): 18.01 |
| Shank Height (Decimal Inch): 0.7090 | Shank Length (Inch): 10 |
| Shank Length (Decimal Inch): 10.0000 | Overall Length (Inch): 10 |
| Overall Length (Decimal Inch): 10.0000 | Minimum Bore Diameter (Decimal Inch): 0.9800 |
| Head Length (Inch): 2-1/4 | Head Length (Decimal Inch): 2.2500 |
| Maximum Depth of Cut (Decimal Inch): 2.2500 | Back of Bar to Cutting Edge (Inch): 10 |
| Back of Bar to Cutting Edge (Decimal Inch): 10.0000 | Center to Cutting Edge (mm): 14.00 |
| Center to Cutting Edge (Decimal Inch): 0.5510 | Insert Inscribed Circle (Decimal Inch): 0.3750 |
| Insert Inscribed Circle (Inch): 3/8 | Neck Diameter (Decimal Inch): 0.7500 |
| UNSPSC Code: 23291800 | Toolholder Material: Steel |
| Coolant Through: Yes | Series: CoroThread 266 |
| Country of Origin: India | |
| Thread Type: Internal; External | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 0.7500 | |
| Shank Width/Diameter (Inch): 3/4 | |
| Toolholder Style: 266RKF | |
| Insert Compatibility: 266RL to 16 | |
| Insert Holding Method: Screw | |
| Shank Height (mm): 18.01 | |
| Shank Height (Decimal Inch): 0.7090 | |
| Shank Length (Inch): 10 | |
| Shank Length (Decimal Inch): 10.0000 | |
| Overall Length (Inch): 10 | |
| Overall Length (Decimal Inch): 10.0000 | |
| Minimum Bore Diameter (Decimal Inch): 0.9800 | |
| Head Length (Inch): 2-1/4 | |
| Head Length (Decimal Inch): 2.2500 | |
| Maximum Depth of Cut (Decimal Inch): 2.2500 | |
| Back of Bar to Cutting Edge (Inch): 10 | |
| Back of Bar to Cutting Edge (Decimal Inch): 10.0000 | |
| Center to Cutting Edge (mm): 14.00 | |
| Center to Cutting Edge (Decimal Inch): 0.5510 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Neck Diameter (Decimal Inch): 0.7500 | |
| UNSPSC Code: 23291800 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Series: CoroThread 266 | |
| Country of Origin: India |
| MSC# | 32130296 |
| Mfr# | 5758086 |
