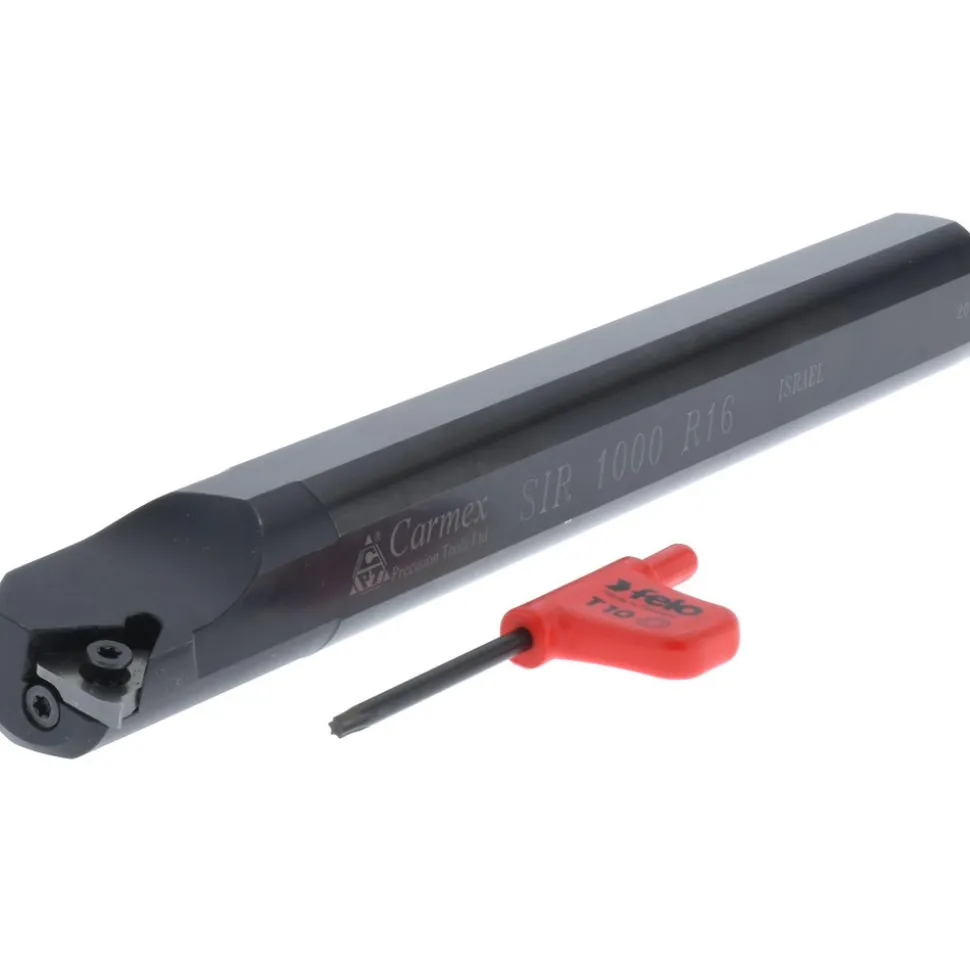

Indexable Threading Toolholder: Internal, Right Hand, 1″ Shank
136,99 $
Specifications
| Thread Type: Internal | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 1.0000 | Shank Width/Diameter (Inch): 1 |
| Toolholder Style: SI | Insert Compatibility: 16IR |
| Coolant Entry Style Code: 0 – Without Coolant | Insert Holding Method: Screw |
| Overall Length (Inch): 8 | Overall Length (Decimal Inch): 8.0000 |
| Minimum Bore Diameter (Decimal Inch): 1.1600 | Multi-use Tool: No |
| Cutting Tool Application: Threading | Back of Bar to Cutting Edge (Decimal Inch): 0.6500 |
| Center to Cutting Edge (Decimal Inch): 0.6500 | Insert Inscribed Circle (Inch): 3/8 |
| Neck Diameter (Decimal Inch): 1.0000 | UNSPSC Code: 23291800 |
| Distance Across Flats: 0.905 | Style: SIR 1000 R16 |
| Coolant Through: No | F -In–: 0.6500 |
| Series: SIR | Country of Origin: Israel |
| Thread Type: Internal | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Width/Diameter (Inch): 1 | |
| Toolholder Style: SI | |
| Insert Compatibility: 16IR | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Screw | |
| Overall Length (Inch): 8 | |
| Overall Length (Decimal Inch): 8.0000 | |
| Minimum Bore Diameter (Decimal Inch): 1.1600 | |
| Multi-use Tool: No | |
| Cutting Tool Application: Threading | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.6500 | |
| Center to Cutting Edge (Decimal Inch): 0.6500 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Neck Diameter (Decimal Inch): 1.0000 | |
| UNSPSC Code: 23291800 | |
| Distance Across Flats: 0.905 | |
| Style: SIR 1000 R16 | |
| Coolant Through: No | |
| F -In–: 0.6500 | |
| Series: SIR | |
| Country of Origin: Israel |
| MSC# | 08700254 |
| Mfr# | 100-3IN.RHHOL |
| Big Book# | 950 |
Be the first to review “Indexable Threading Toolholder: Internal, Right Hand, 1″ Shank”
