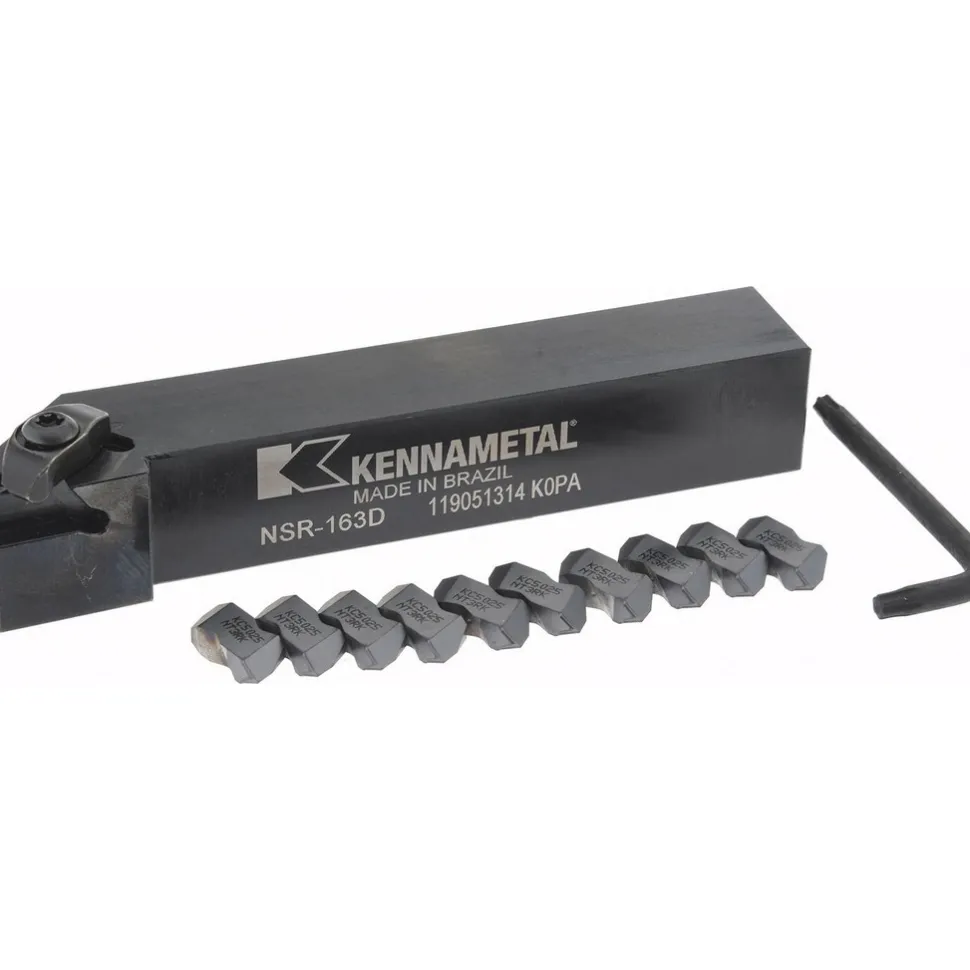

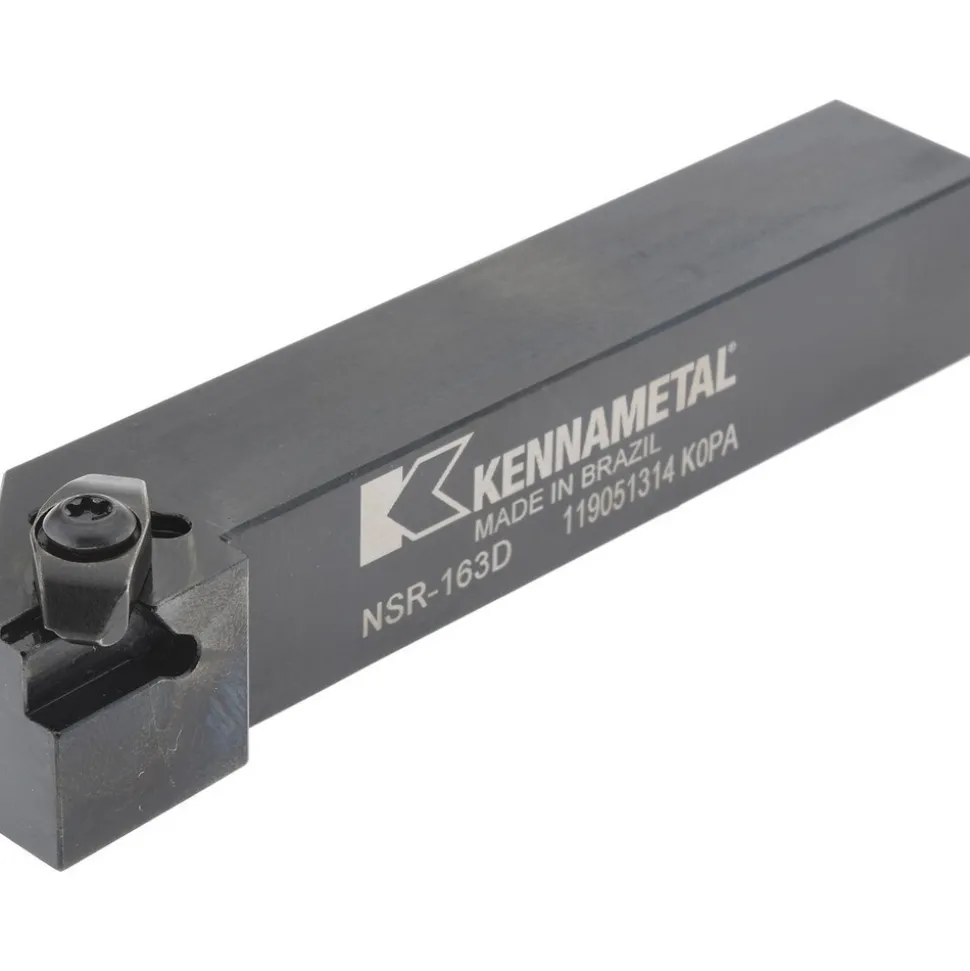

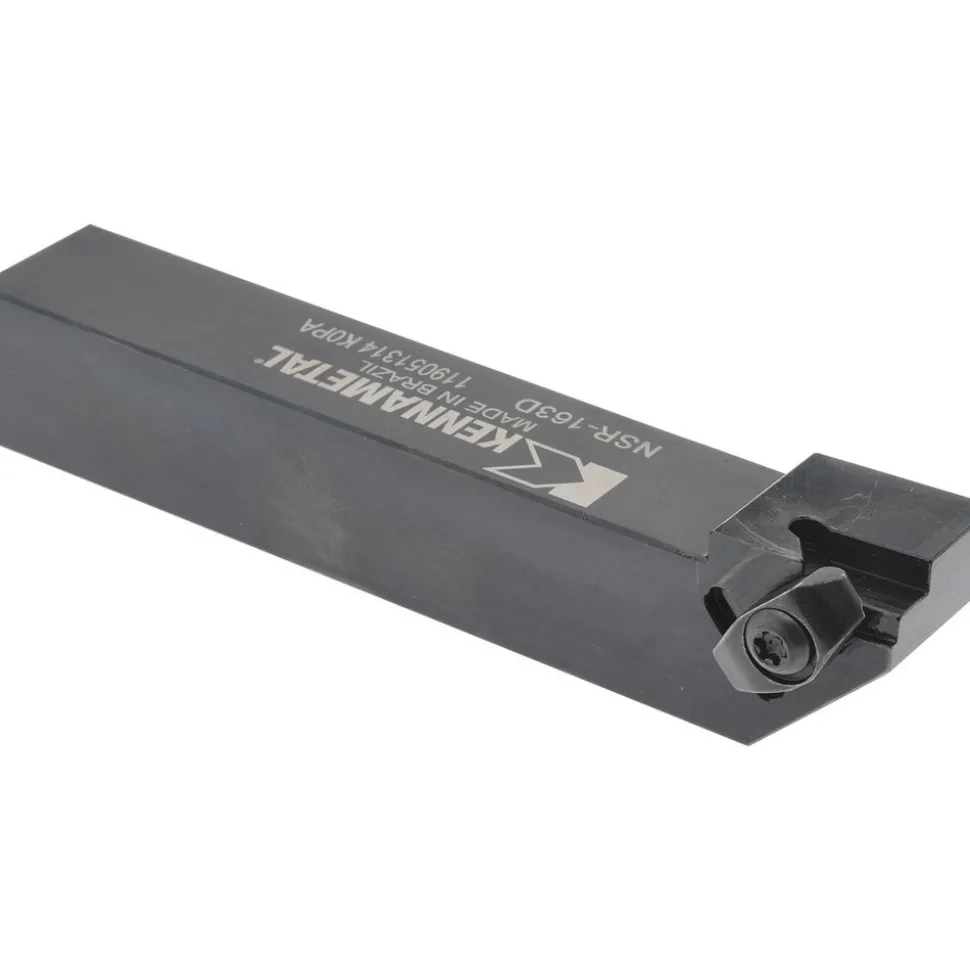

Indexable Threading Toolholder: Right Hand, 1 x 1″ Shank
126,99 $
Specifications
| Hand of Holder: Right Hand | Shank Width/Diameter (Decimal Inch): 1.0000 |
| Shank Width/Diameter (Inch): 1 | Toolholder Style: NSR163D |
| Insert Compatibility: N.3R | Coolant Entry Style Code: 0 – Without Coolant |
| Insert Holding Method: Clamp | Shank Height (Decimal Inch): 1.0000 |
| Shank Length (Inch): 4-3/4 | Shank Length (mm): 120.65 |
| Shank Length (Decimal Inch): 4.7500 | Overall Length (Decimal Inch): 6.0000 |
| Multi-use Tool: Yes | Cutting Tool Application: Chamfering |
| Head Length (Decimal Inch): 1.2500 | Maximum Depth of Cut (Decimal Inch): 0.2100 |
| Back of Bar to Cutting Edge (Decimal Inch): 1.2500 | Center to Cutting Edge (Decimal Inch): 0.5000 |
| Primary Workpiece Material Code: P; S; H; K; M; N | UNSPSC Code: 23291800 |
| Number of Inserts Included in Order: 10 | Coolant Through: No |
| Series: Top Notch | Country of Origin: UNITED STATES |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Width/Diameter (Inch): 1 | |
| Toolholder Style: NSR163D | |
| Insert Compatibility: N.3R | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Clamp | |
| Shank Height (Decimal Inch): 1.0000 | |
| Shank Length (Inch): 4-3/4 | |
| Shank Length (mm): 120.65 | |
| Shank Length (Decimal Inch): 4.7500 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Chamfering | |
| Head Length (Decimal Inch): 1.2500 | |
| Maximum Depth of Cut (Decimal Inch): 0.2100 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.2500 | |
| Center to Cutting Edge (Decimal Inch): 0.5000 | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| UNSPSC Code: 23291800 | |
| Number of Inserts Included in Order: 10 | |
| Coolant Through: No | |
| Series: Top Notch | |
| Country of Origin: UNITED STATES |
| MSC# | 80749583 |
| Mfr# | KTN96677E |
| Big Book# | 917 |
