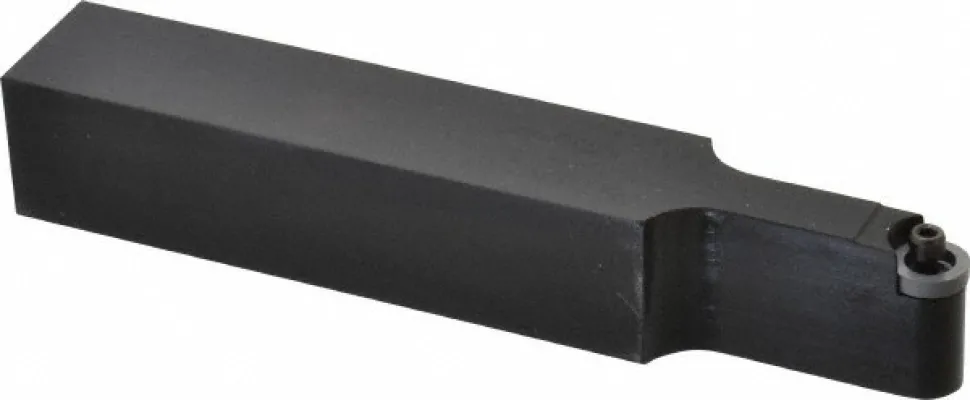

Indexable Turning Toolholder: Pin

Original price was: 184,00 $.Current price is: 125,89 $.

Specifications

Toolholder Style: PROON	Hand of Holder: Neutral
Insert Compatibility: RC..43	Insert Holding Method: Pin
Shank Width (Inch): 1	Shank Height (Inch): 1
Overall Length (Decimal Inch): 6.0000	Shank Height (mm): 25.40
Coolant Through: No	Rake: Neutral
Multi-use Tool: No	Shank Width (Decimal Inch): 1.0000
Shank Height (Decimal Inch): 1.0000	Series: Screw-On
Overall Length (Inch): 6	Back of Bar to Cutting Edge (Inch): 3/4
Back of Bar to Cutting Edge (Decimal Inch): 0.7500	Insert Inscribed Circle (Decimal Inch): 0.5000
Insert Inscribed Circle (Inch): 1/2	Toolholder Material: Steel
Complete Insert Compatibility: RC.. 43..	Coating Classification: Kennametal
UNSPSC Code: 23153308	Country of Origin: UNITED STATES
Toolholder Style: PROON
Hand of Holder: Neutral
Insert Compatibility: RC..43
Insert Holding Method: Pin
Shank Width (Inch): 1
Shank Height (Inch): 1
Overall Length (Decimal Inch): 6.0000
Shank Height (mm): 25.40
Coolant Through: No
Rake: Neutral
Multi-use Tool: No
Shank Width (Decimal Inch): 1.0000
Shank Height (Decimal Inch): 1.0000
Series: Screw-On
Overall Length (Inch): 6
Back of Bar to Cutting Edge (Inch): 3/4
Back of Bar to Cutting Edge (Decimal Inch): 0.7500
Insert Inscribed Circle (Decimal Inch): 0.5000
Insert Inscribed Circle (Inch): 1/2
Toolholder Material: Steel
Complete Insert Compatibility: RC.. 43..
Coating Classification: Kennametal
UNSPSC Code: 23153308
Country of Origin: UNITED STATES
