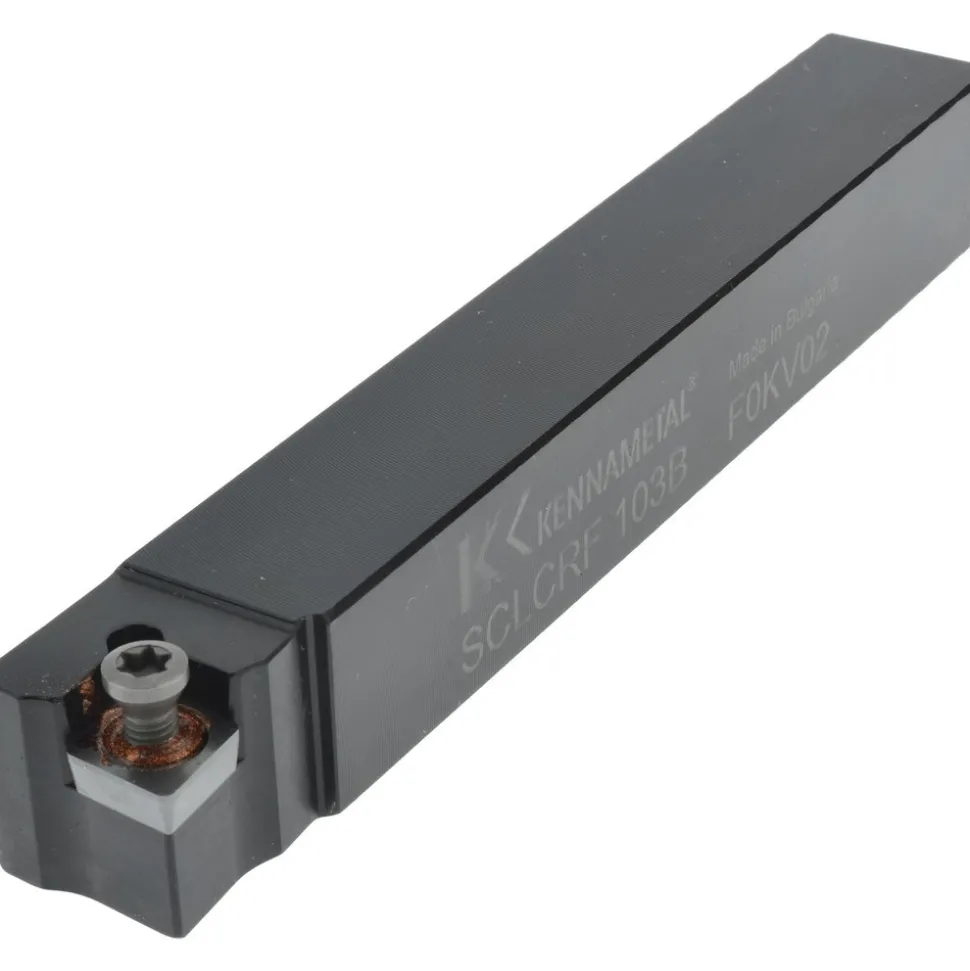

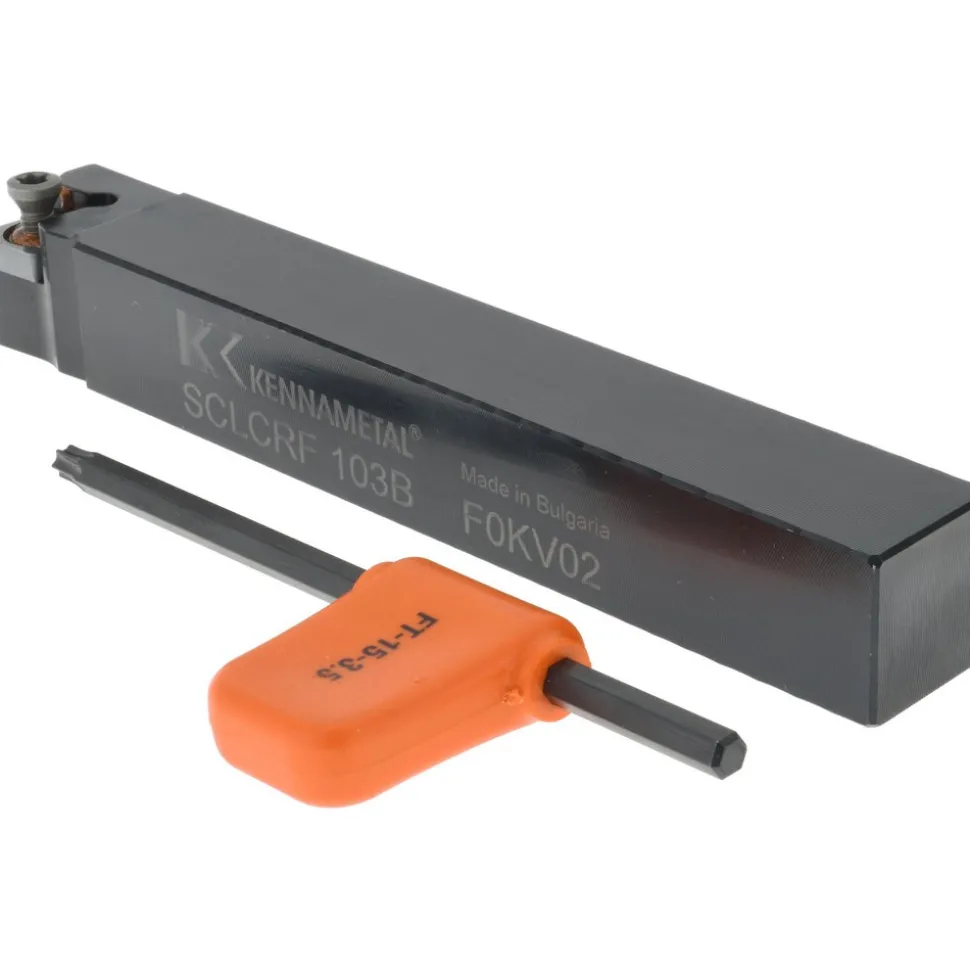

Indexable Turning Toolholder: SCLCR & LF103B, Screw
89,99 $
Specifications
| Toolholder Style: SCLC | Hand of Holder: Right Hand |
| Insert Compatibility: CC..32.5. | Insert Holding Method: Screw |
| Shank Width (Inch): 5/8 | Shank Height (Inch): 5/8 |
| Overall Length (Decimal Inch): 4.5000 | Shank Height (mm): 15.88 |
| Coolant Through: No | Rake: Neutral |
| Rake Angle: 0 | Multi-use Tool: No |
| Shank Width (Decimal Inch): 0.6250 | Shank Height (Decimal Inch): 0.6300 |
| Series: Screw-On | Overall Length (Inch): 4-1/2 |
| Head Length (Decimal Inch): 0.6200 | Back of Bar to Cutting Edge (Inch): 5/8 |
| Back of Bar to Cutting Edge (Decimal Inch): 0.6250 | Insert Inscribed Circle (Decimal Inch): 0.3750 |
| Insert Inscribed Circle (Inch): 3/8 | Toolholder Material: Steel |
| Complete Insert Compatibility: CC.. 3252 | Coating Classification: Kennametal |
| UNSPSC Code: 23153308 | Manufacturers Catalog Number: LF103B; SCLCR |
| Country of Origin: Bulgaria | |
| Toolholder Style: SCLC | |
| Hand of Holder: Right Hand | |
| Insert Compatibility: CC..32.5. | |
| Insert Holding Method: Screw | |
| Shank Width (Inch): 5/8 | |
| Shank Height (Inch): 5/8 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Shank Height (mm): 15.88 | |
| Coolant Through: No | |
| Rake: Neutral | |
| Rake Angle: 0 | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 0.6250 | |
| Shank Height (Decimal Inch): 0.6300 | |
| Series: Screw-On | |
| Overall Length (Inch): 4-1/2 | |
| Head Length (Decimal Inch): 0.6200 | |
| Back of Bar to Cutting Edge (Inch): 5/8 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.6250 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: CC.. 3252 | |
| Coating Classification: Kennametal | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: LF103B; SCLCR | |
| Country of Origin: Bulgaria |
| MSC# | 09829003 |
| Mfr# | 1094593 |
| Big Book# | 837 |
