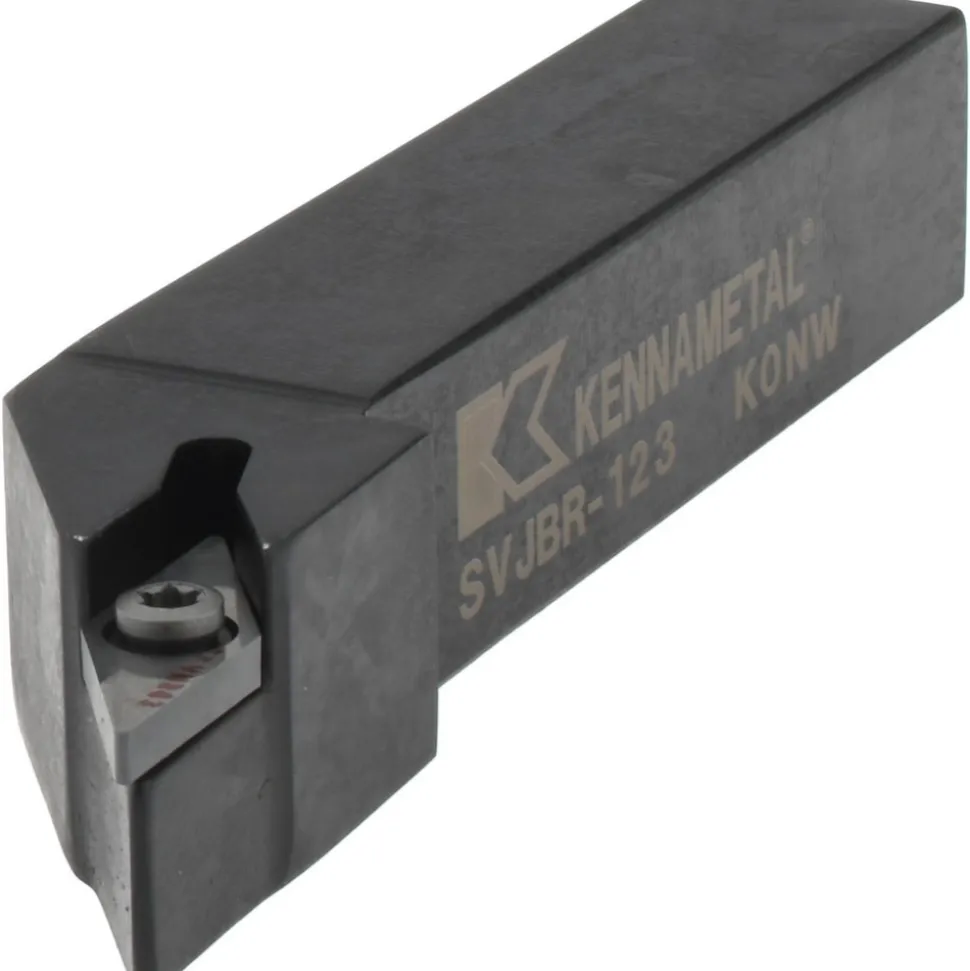

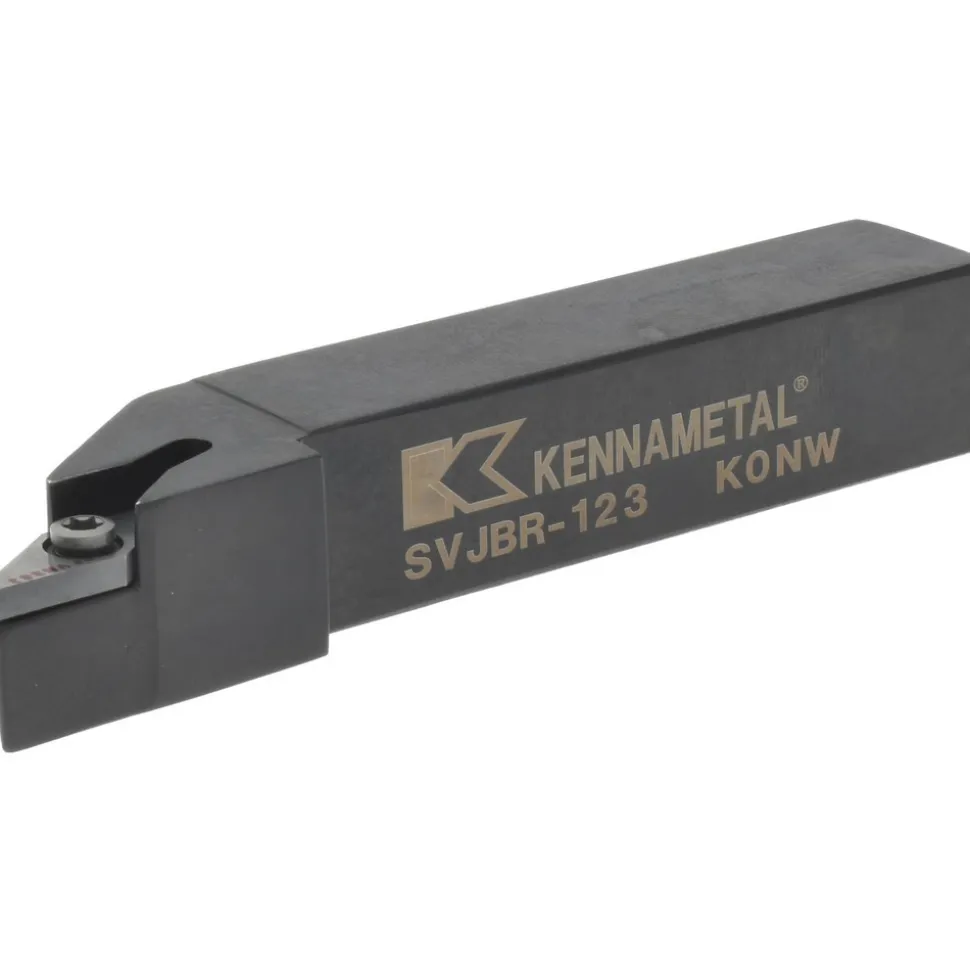

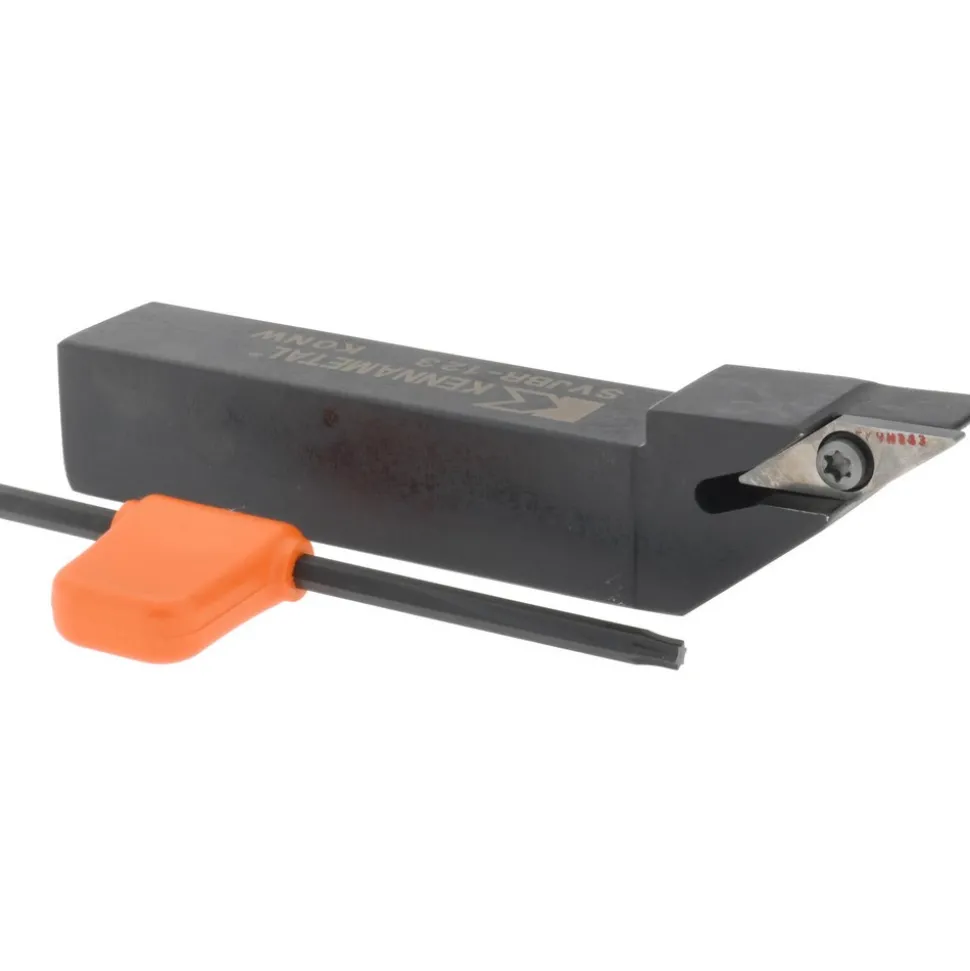

Indexable Turning Toolholder: SVJBR & L123, Screw
Original price was: 205,00 $.134,99 $Current price is: 134,99 $.
Specifications
| Toolholder Style: SVJB | Hand of Holder: Right Hand |
| Insert Compatibility: VB..33. | Insert Holding Method: Screw |
| Shank Width (Inch): 3/4 | Shank Height (Inch): 3/4 |
| Overall Length (Decimal Inch): 4.5000 | Shank Height (mm): 19.05 |
| Coolant Through: No | Rake: Neutral |
| Rake Angle: 0 | Multi-use Tool: No |
| Shank Width (Decimal Inch): 0.7500 | Shank Height (Decimal Inch): 0.7500 |
| Series: Screw-On | Overall Length (Inch): 4-1/2 |
| Head Length (Decimal Inch): 1.3800 | Head Length (mm): 34.93 |
| Back of Bar to Cutting Edge (Inch): 1 | Back of Bar to Cutting Edge (Decimal Inch): 1.0000 |
| Back of Bar to Cutting Edge (mm): 25.40 | Insert Inscribed Circle (Decimal Inch): 0.3750 |
| Insert Inscribed Circle (Inch): 3/8 | Toolholder Material: Steel |
| Complete Insert Compatibility: VB.. 332 | UNSPSC Code: 23153308 |
| Manufacturers Catalog Number: L123; SVJBR | Country of Origin: Germany |
| Toolholder Style: SVJB | |
| Hand of Holder: Right Hand | |
| Insert Compatibility: VB..33. | |
| Insert Holding Method: Screw | |
| Shank Width (Inch): 3/4 | |
| Shank Height (Inch): 3/4 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Shank Height (mm): 19.05 | |
| Coolant Through: No | |
| Rake: Neutral | |
| Rake Angle: 0 | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 0.7500 | |
| Shank Height (Decimal Inch): 0.7500 | |
| Series: Screw-On | |
| Overall Length (Inch): 4-1/2 | |
| Head Length (Decimal Inch): 1.3800 | |
| Head Length (mm): 34.93 | |
| Back of Bar to Cutting Edge (Inch): 1 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0000 | |
| Back of Bar to Cutting Edge (mm): 25.40 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: VB.. 332 | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: L123; SVJBR | |
| Country of Origin: Germany |
| MSC# | 64922271 |
| Mfr# | 1094539 |
| Big Book# | 838 |
