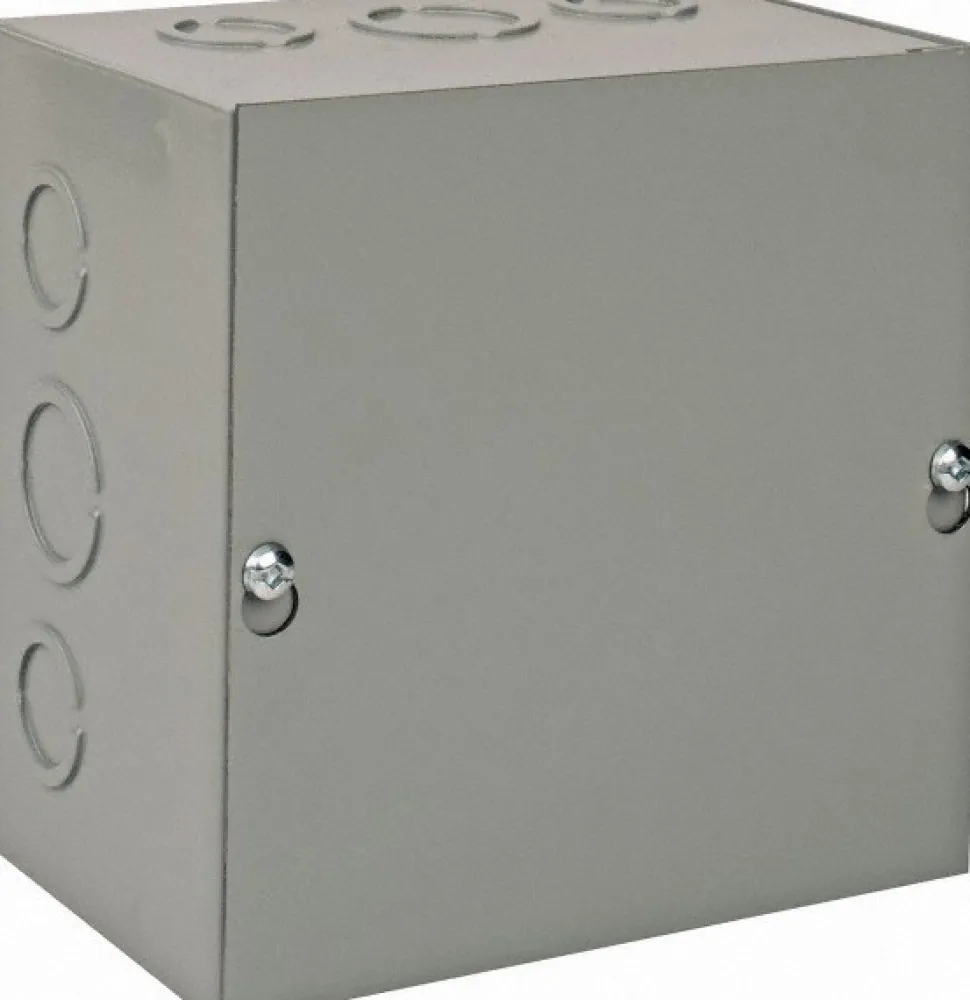

Junction Box Electrical Enclosure: Steel, NEMA 1

26,89 $

Specifications

Enclosure Type: Junction Box	Enclosure Material: Steel
Cover Color: Gray	Finish: Polyester Powder Coated
Cover Type: Screw Flat	Overall Height (Decimal Inch): 6.0000
Overall Height (mm): 152.00	Overall Height (Inch): 6
Overall Depth (Inch): 4	Overall Depth (Decimal Inch): 4.0000
Overall Depth (Mm): 102.00	Overall Width (Decimal Inch – 4 Decimals): 6.0000
Overall Width (Inch): 6	Overall Width (mm): 152.00
Material Gauge: 12; 14; 16	Includes: Knockouts; Mounting Holes; Provision; Keyhole Screw Slots; (2) Cover Screws; Plated Steel Screws
Standards: UL Listed 50; UL File E27525; cUL Listed to CSA C22.2 No. 40; UL Listed 50E; IEC 60529; ANSI 61; cUL File E27525	Nema Rating: 1
UNSPSC Code: 39121300	Country of Origin: Mexico
Enclosure Type: Junction Box
Enclosure Material: Steel
Cover Color: Gray
Finish: Polyester Powder Coated
Cover Type: Screw Flat
Overall Height (Decimal Inch): 6.0000
Overall Height (mm): 152.00
Overall Height (Inch): 6
Overall Depth (Inch): 4
Overall Depth (Decimal Inch): 4.0000
Overall Depth (Mm): 102.00
Overall Width (Decimal Inch – 4 Decimals): 6.0000
Overall Width (Inch): 6
Overall Width (mm): 152.00
Material Gauge: 12; 14; 16
Includes: Knockouts; Mounting Holes; Provision; Keyhole Screw Slots; (2) Cover Screws; Plated Steel Screws
Standards: UL Listed 50; UL File E27525; cUL Listed to CSA C22.2 No. 40; UL Listed 50E; IEC 60529; ANSI 61; cUL File E27525
Nema Rating: 1
UNSPSC Code: 39121300
Country of Origin: Mexico
