Sale!

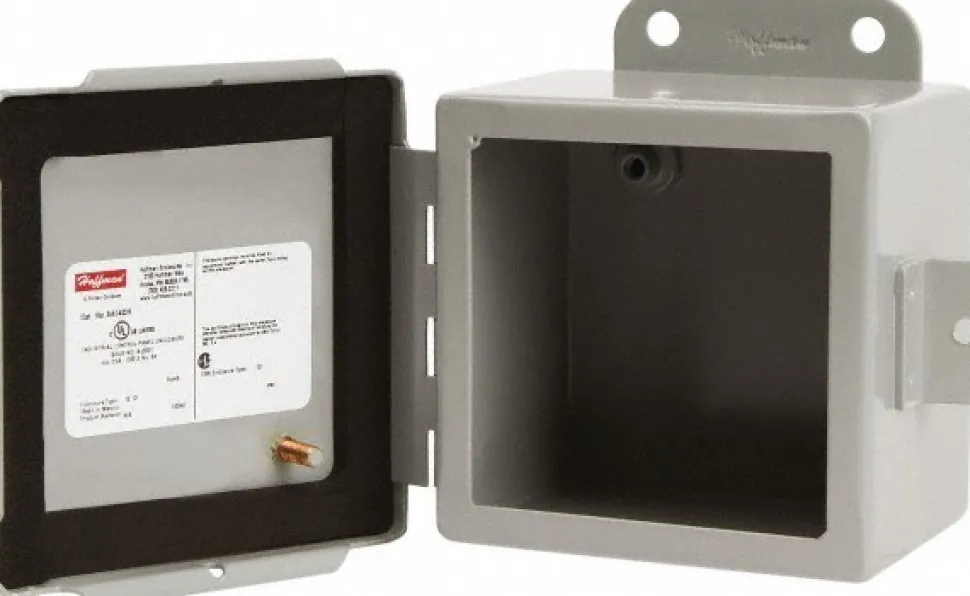

Junction Box Electrical Enclosure: Steel, NEMA 12 & 13
Original price was: 157,00 $.103,89 $Current price is: 103,89 $.
Specifications
| Enclosure Type: Junction Box | Enclosure Material: Steel |
| Cover Color: Gray | Finish: Polyester Powder Coated |
| Cover Type: Hinge Flat | Overall Height (Decimal Inch): 8.0000 |
| Overall Height (mm): 203.00 | Overall Height (Inch): 8 |
| Overall Depth (Inch): 4 | Overall Depth (Decimal Inch): 4.0000 |
| Overall Depth (Mm): 102.00 | Overall Width (Decimal Inch – 4 Decimals): 8.0000 |
| Overall Width (Inch): 8 | Overall Width (mm): 203.00 |
| Material Gauge: 14 | Includes: External Wall-mounting Brackets; Weld Nuts; Continuous Hinge; Oil-Resistant Gasket; External Screw Clamps |
| Standards: UL File E61997; UL Listed 508A; UL Listed 50; cUL Listed to CSA C22.2 No. 94; UL Listed 50E; CSA File 42184; cUL File E61997; IEC 60529; ANSI 61; UL File E27567; CSA File E27567 | Nema Rating: 12; 13 |
| UNSPSC Code: 39121300 | Country of Origin: Mexico |
| Enclosure Type: Junction Box | |
| Enclosure Material: Steel | |
| Cover Color: Gray | |
| Finish: Polyester Powder Coated | |
| Cover Type: Hinge Flat | |
| Overall Height (Decimal Inch): 8.0000 | |
| Overall Height (mm): 203.00 | |
| Overall Height (Inch): 8 | |
| Overall Depth (Inch): 4 | |
| Overall Depth (Decimal Inch): 4.0000 | |
| Overall Depth (Mm): 102.00 | |
| Overall Width (Decimal Inch – 4 Decimals): 8.0000 | |
| Overall Width (Inch): 8 | |
| Overall Width (mm): 203.00 | |
| Material Gauge: 14 | |
| Includes: External Wall-mounting Brackets; Weld Nuts; Continuous Hinge; Oil-Resistant Gasket; External Screw Clamps | |
| Standards: UL File E61997; UL Listed 508A; UL Listed 50; cUL Listed to CSA C22.2 No. 94; UL Listed 50E; CSA File 42184; cUL File E61997; IEC 60529; ANSI 61; UL File E27567; CSA File E27567 | |
| Nema Rating: 12; 13 | |
| UNSPSC Code: 39121300 | |
| Country of Origin: Mexico |
| MSC# | 68600899 |
| Mfr# | A808CH |
| Big Book# | 3518 |
