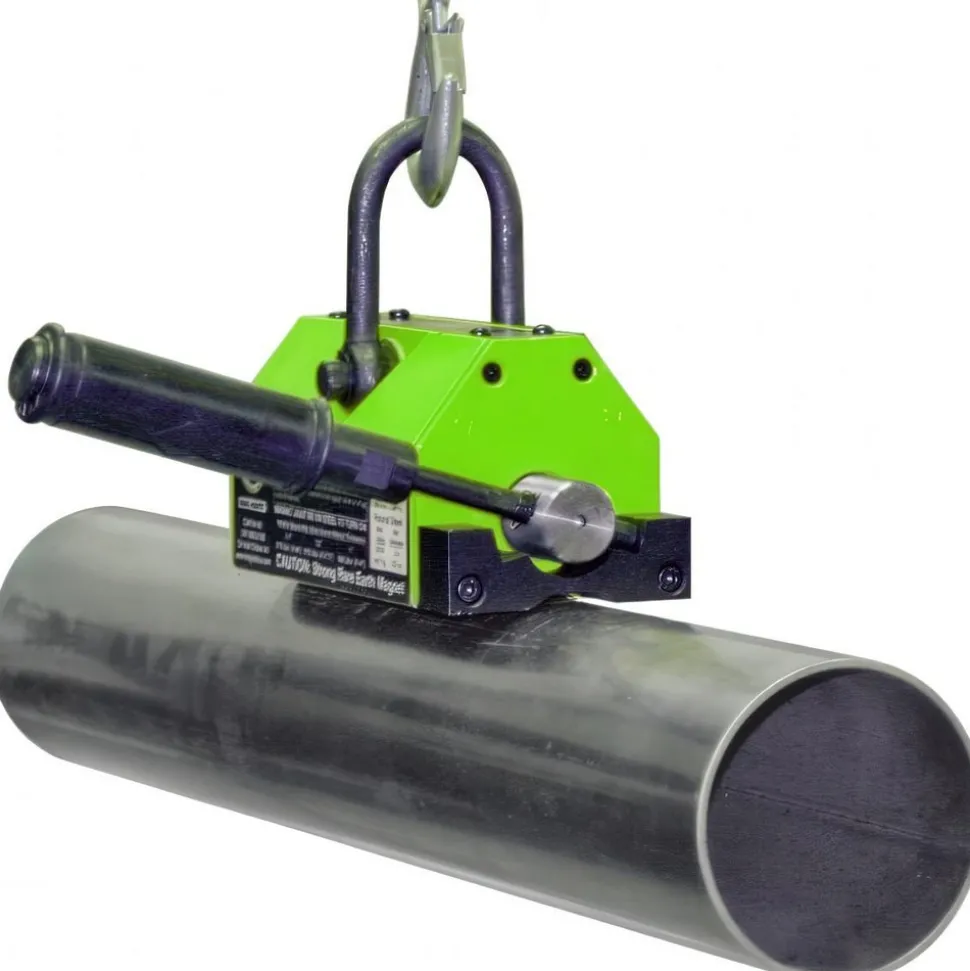

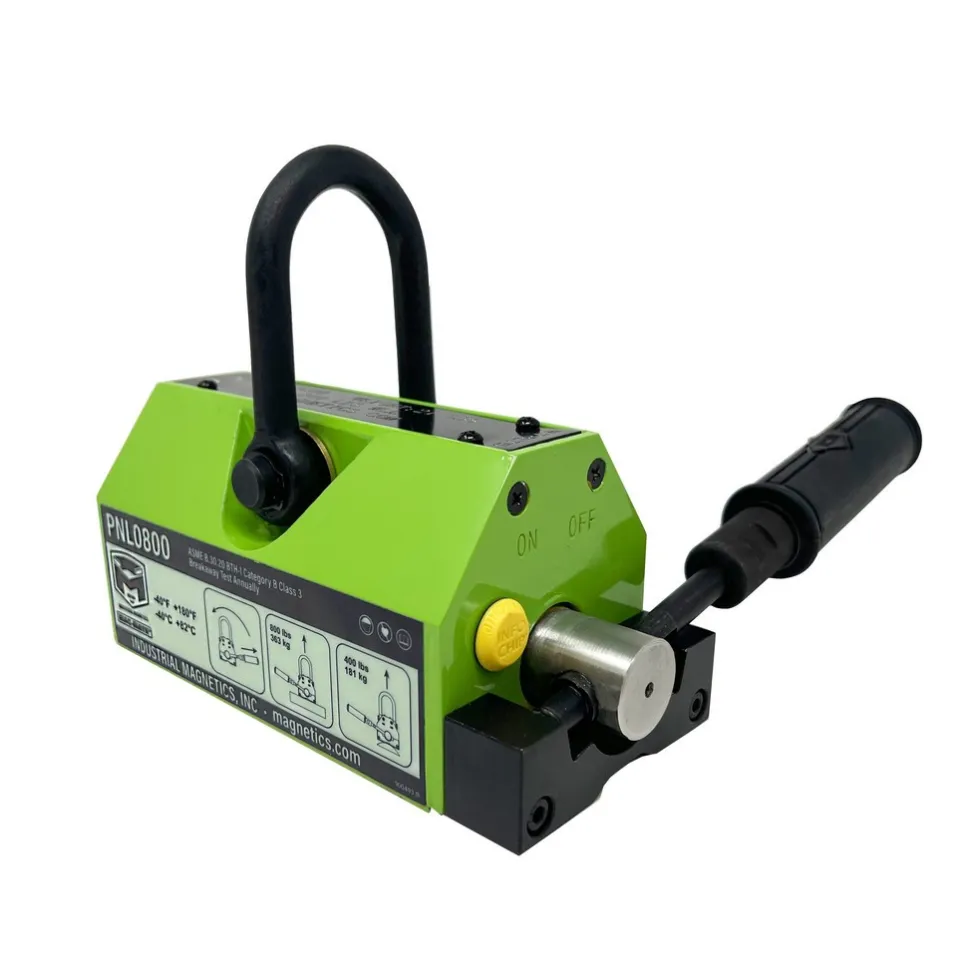

Lift Magnet: 800 lb Capacity
Original price was: 921,00 $.136,89 $Current price is: 136,89 $.
Specifications
| Magnet Type: Permanent | Magnet Activation: Locking On/Off Handle |
| Maximum Load Capacity – Lbs: 800.00 | Overall Length (Inch): 7.875 |
| Overall Width (Decimal Inch – 4 Decimals): 3.3750 | Overall Height (Decimal Inch): 8.8750 |
| Standards: ASME B30.20 BTH-1 Design Category B Service Class 3 | Maximum Working Temperature: 180 F |
| Number Of Poles: 2 | Handle Length (Inch): 8.0000 |
| Bail Opening Height (Inch): 2.375 | Bail Opening Width (Inch): 1.75 |
| Features: On & Off Position; Easy Internal Manual Release Does Not Contact the Load; 3:1 Design Factor; Lifts Flat or Round Loads | Additional Information: Permanent Magnetic Lifts Eliminate the Fear of Dropping the Load Being Lifted Due to Power Failures; Compact Yet Powerful Rare Earth Powerlift® Lift Magnets can be used on Flat or Round Surfaces and Contain an Internal Release On/Off Device that Does Not Contact or Damage the Surface of the Part Being Lifted |
| For Use With: Flats & Rounds | Head/Holder Diameter (Fractional Inch): 3 |
| UNSPSC Code: 24101600 | Country of Origin: UNITED STATES |
| Magnet Type: Permanent | |
| Magnet Activation: Locking On/Off Handle | |
| Maximum Load Capacity – Lbs: 800.00 | |
| Overall Length (Inch): 7.875 | |
| Overall Width (Decimal Inch – 4 Decimals): 3.3750 | |
| Overall Height (Decimal Inch): 8.8750 | |
| Standards: ASME B30.20 BTH-1 Design Category B Service Class 3 | |
| Maximum Working Temperature: 180 F | |
| Number Of Poles: 2 | |
| Handle Length (Inch): 8.0000 | |
| Bail Opening Height (Inch): 2.375 | |
| Bail Opening Width (Inch): 1.75 | |
| Features: On & Off Position; Easy Internal Manual Release Does Not Contact the Load; 3:1 Design Factor; Lifts Flat or Round Loads | |
| Additional Information: Permanent Magnetic Lifts Eliminate the Fear of Dropping the Load Being Lifted Due to Power Failures; Compact Yet Powerful Rare Earth Powerlift® Lift Magnets can be used on Flat or Round Surfaces and Contain an Internal Release On/Off Device that Does Not Contact or Damage the Surface of the Part Being Lifted | |
| For Use With: Flats & Rounds | |
| Head/Holder Diameter (Fractional Inch): 3 | |
| UNSPSC Code: 24101600 | |
| Country of Origin: UNITED STATES |
| MSC# | 65792632 |
| Mfr# | PNL0800 |
| Big Book# | 3324 |
