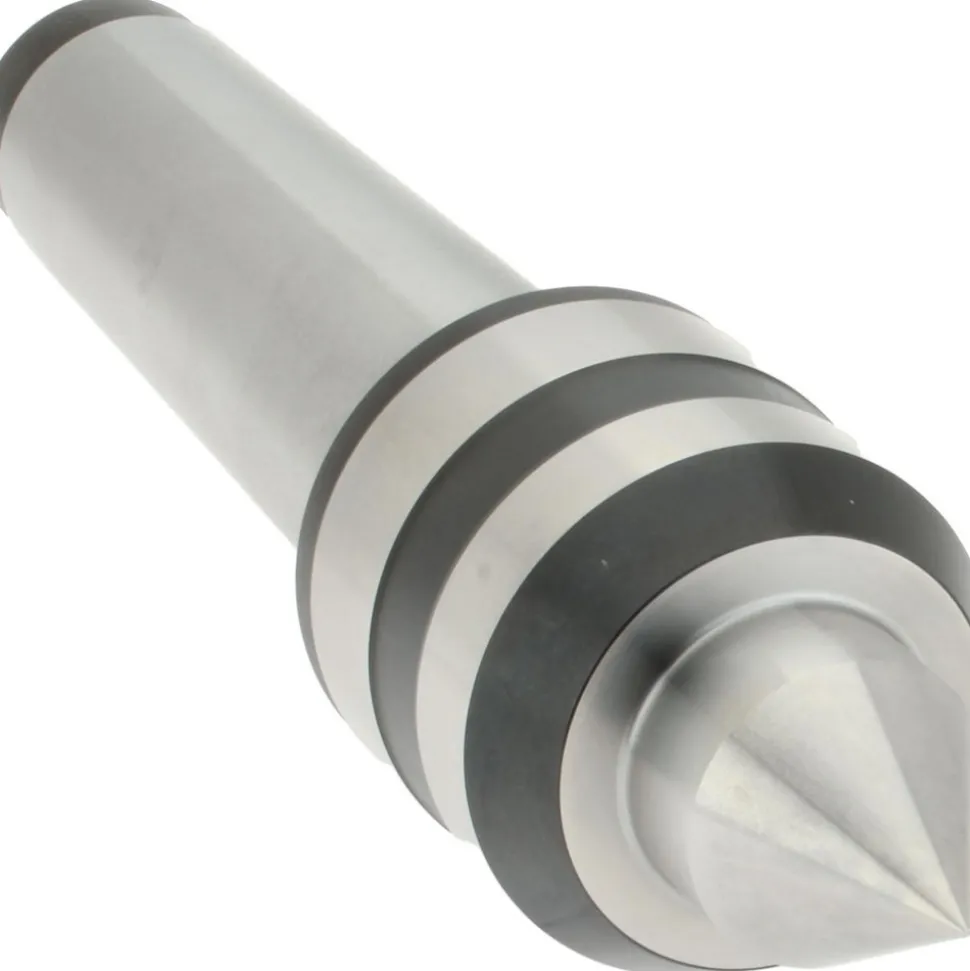

Live Center: Morse Taper Shank, 44.50 mm Head Dia, 1.7323″ Head Length
122,89 $
Specifications
| Shank Type: Morse Taper | Taper Size: MT4 |
| Maximum Workpiece Weight (Lb.): 881.85 | Maximum Workpiece Weight (kg): 400.00 |
| Point Style: Standard | Point Diameter (mm): 25.00 |
| Point Length (mm): 32.50 | Accuracy: 0.00 mm |
| Load Capacity: 881.85 lb | Head Diameter (mm): 44.50 |
| Head Length (Decimal Inch): 1.7323 | Shank Length (Decimal Inch): 4.2520 |
| Overall Length (mm): 184.50 | Point to Gauge Line (mm): 81.80 |
| Included Angle: 60.00 | Maximum RPM: 5000 |
| Carbide-tipped Point: No | UNSPSC Code: 23153103 |
| Country of Origin: South Korea | |
| Shank Type: Morse Taper | |
| Taper Size: MT4 | |
| Maximum Workpiece Weight (Lb.): 881.85 | |
| Maximum Workpiece Weight (kg): 400.00 | |
| Point Style: Standard | |
| Point Diameter (mm): 25.00 | |
| Point Length (mm): 32.50 | |
| Accuracy: 0.00 mm | |
| Load Capacity: 881.85 lb | |
| Head Diameter (mm): 44.50 | |
| Head Length (Decimal Inch): 1.7323 | |
| Shank Length (Decimal Inch): 4.2520 | |
| Overall Length (mm): 184.50 | |
| Point to Gauge Line (mm): 81.80 | |
| Included Angle: 60.00 | |
| Maximum RPM: 5000 | |
| Carbide-tipped Point: No | |
| UNSPSC Code: 23153103 | |
| Country of Origin: South Korea |
| MSC# | 99454217 |
| Mfr# | 781025 |
| Big Book# | 1434 |
