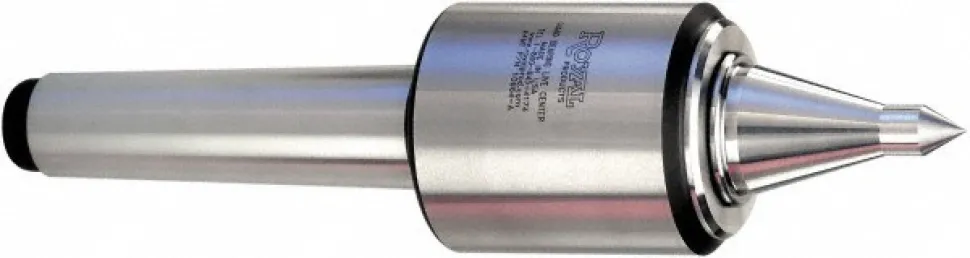

Live Center: Taper Shank, 2.4500″ Head Dia, 2.7800″ Head Length
140,89 $
Specifications
| Shank Type: Taper | Bearing Type: Quad |
| Material: Steel | Taper Size: MT4 |
| Maximum Workpiece Weight (Lb.): 1230.00 | Point Style: Long |
| Point Diameter (Inch): 1/2 | Tip Diameter (Decimal Inch): 0.5000 |
| Tip Diameter (Inch): 1/2 | Point Length (Decimal Inch): 2.3500 |
| Accuracy: 0.00 in | Load Capacity: 3380.00 lb |
| Thrust Load (Lb.): 2150.00 | Radial Load: 1230 lb |
| Head Diameter (Decimal Inch): 2.4500 | Head Length (Decimal Inch): 2.7800 |
| Shank Length (Decimal Inch): 4.4375 | Shank Length (Inch): 4-7/16 |
| Included Angle: 60.00 | Maximum RPM: 5000 |
| Carbide-tipped Point: No | Application: Turning; Hard-Turning; Grinding |
| Features: Body & Point are Hardened & Ground | UNSPSC Code: 23153103 |
| Country of Origin: UNITED STATES | |
| Shank Type: Taper | |
| Bearing Type: Quad | |
| Material: Steel | |
| Taper Size: MT4 | |
| Maximum Workpiece Weight (Lb.): 1230.00 | |
| Point Style: Long | |
| Point Diameter (Inch): 1/2 | |
| Tip Diameter (Decimal Inch): 0.5000 | |
| Tip Diameter (Inch): 1/2 | |
| Point Length (Decimal Inch): 2.3500 | |
| Accuracy: 0.00 in | |
| Load Capacity: 3380.00 lb | |
| Thrust Load (Lb.): 2150.00 | |
| Radial Load: 1230 lb | |
| Head Diameter (Decimal Inch): 2.4500 | |
| Head Length (Decimal Inch): 2.7800 | |
| Shank Length (Decimal Inch): 4.4375 | |
| Shank Length (Inch): 4-7/16 | |
| Included Angle: 60.00 | |
| Maximum RPM: 5000 | |
| Carbide-tipped Point: No | |
| Application: Turning; Hard-Turning; Grinding | |
| Features: Body & Point are Hardened & Ground | |
| UNSPSC Code: 23153103 | |
| Country of Origin: UNITED STATES |
| MSC# | 00102343 |
| Mfr# | 10664 |
| Big Book# | 1435 |
