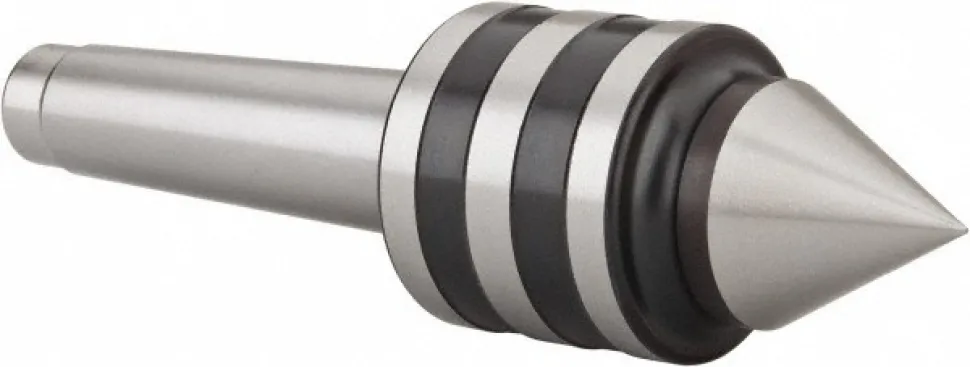

Live Center: Taper Shank, 45.00 mm Head Dia
75,99 $
Specifications
| Shank Type: Taper | Bearing Type: Triple |
| Material: Steel | Taper Size: MT3 |
| Maximum Workpiece Weight (Lb.): 705.48 | Point Style: Standard |
| Point Diameter (Decimal Inch): 1.2598 | Point Diameter (mm): 32.00 |
| Point Length (Decimal Inch): 2.9500 | Accuracy: 0.01 mm |
| Tip Length (Decimal Inch): 1.1200 | Head Diameter (Decimal Inch): 1.7717 |
| Head Diameter (mm): 45.00 | Overall Length (Decimal Inch): 6.4567 |
| Overall Length (mm): 164.00 | Included Angle: 60.00 |
| Maximum RPM: 4000 | Carbide-tipped Point: No |
| Gage Line Diameter (mm): 24.10 | UNSPSC Code: 23153103 |
| Country of Origin: Taiwan | |
| Shank Type: Taper | |
| Bearing Type: Triple | |
| Material: Steel | |
| Taper Size: MT3 | |
| Maximum Workpiece Weight (Lb.): 705.48 | |
| Point Style: Standard | |
| Point Diameter (Decimal Inch): 1.2598 | |
| Point Diameter (mm): 32.00 | |
| Point Length (Decimal Inch): 2.9500 | |
| Accuracy: 0.01 mm | |
| Tip Length (Decimal Inch): 1.1200 | |
| Head Diameter (Decimal Inch): 1.7717 | |
| Head Diameter (mm): 45.00 | |
| Overall Length (Decimal Inch): 6.4567 | |
| Overall Length (mm): 164.00 | |
| Included Angle: 60.00 | |
| Maximum RPM: 4000 | |
| Carbide-tipped Point: No | |
| Gage Line Diameter (mm): 24.10 | |
| UNSPSC Code: 23153103 | |
| Country of Origin: Taiwan |
| MSC# | 00654525 |
| Mfr# | UNK-78 |
