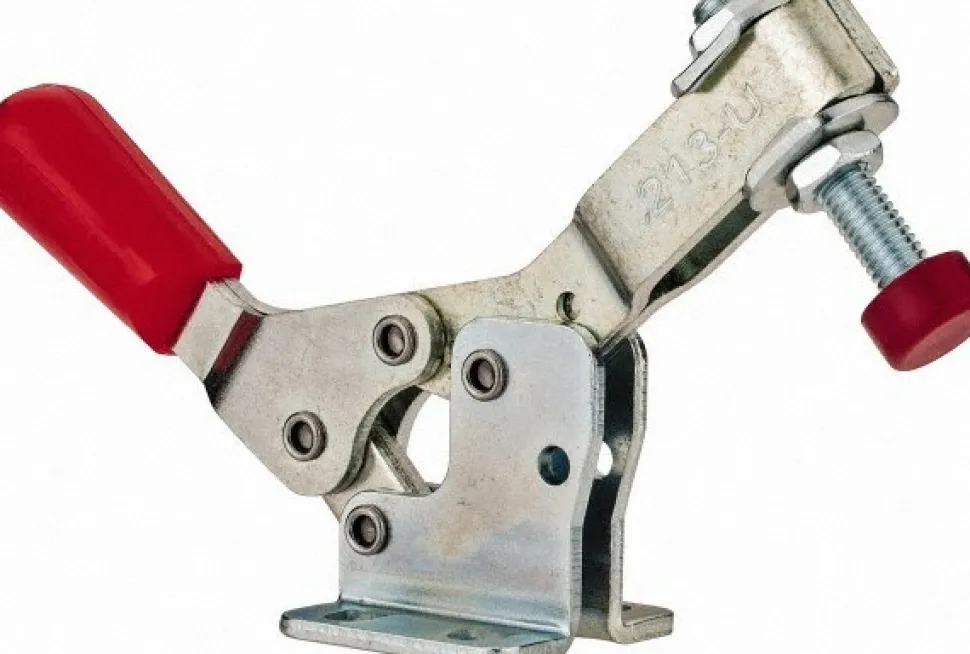

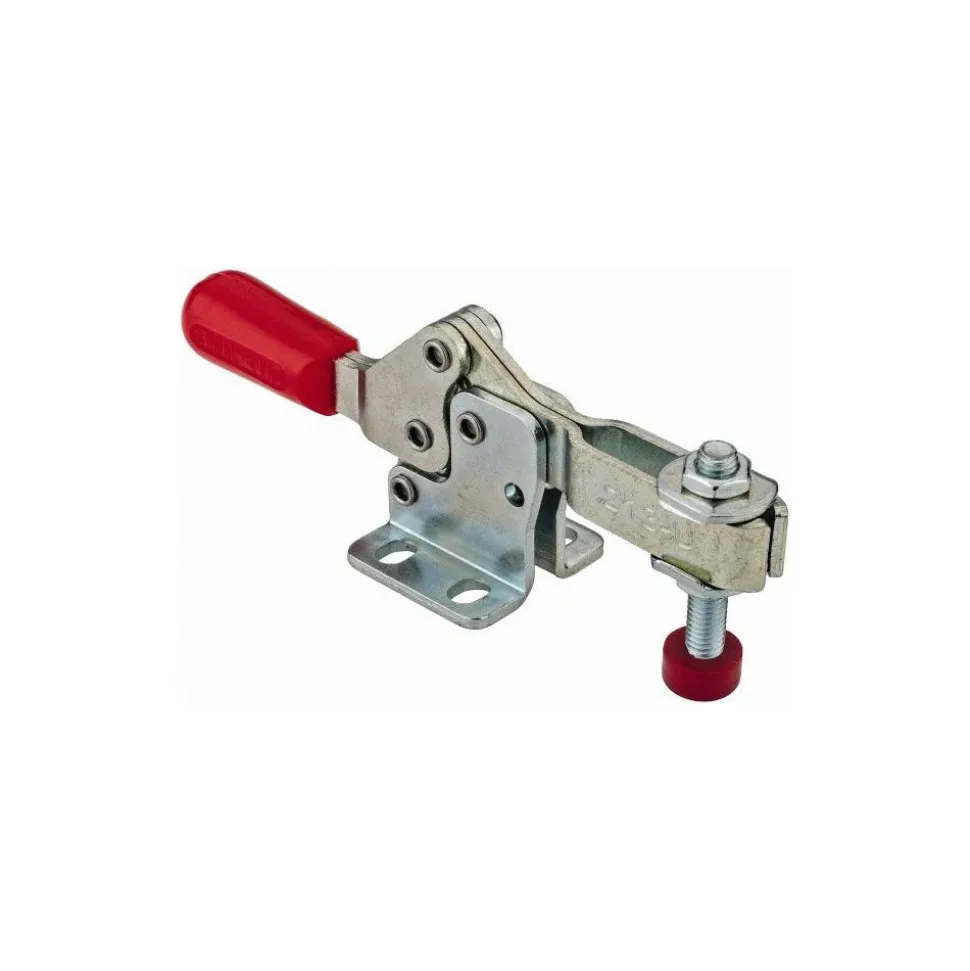

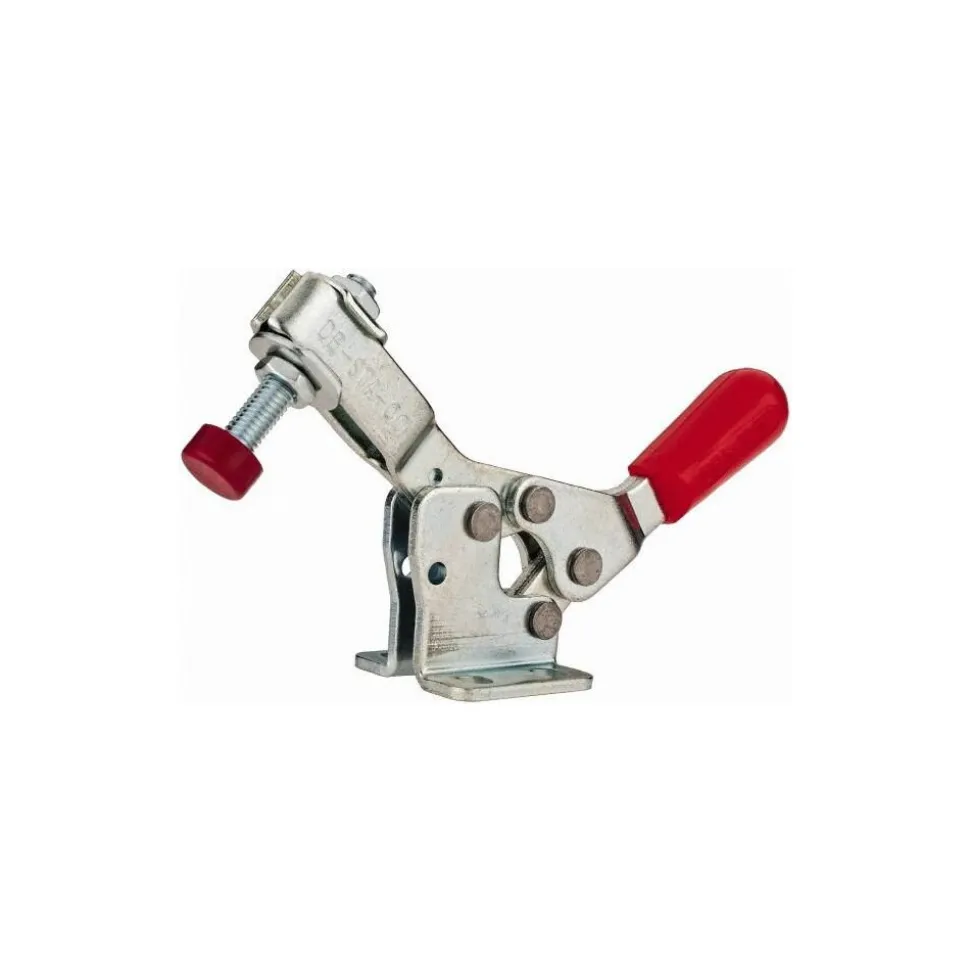

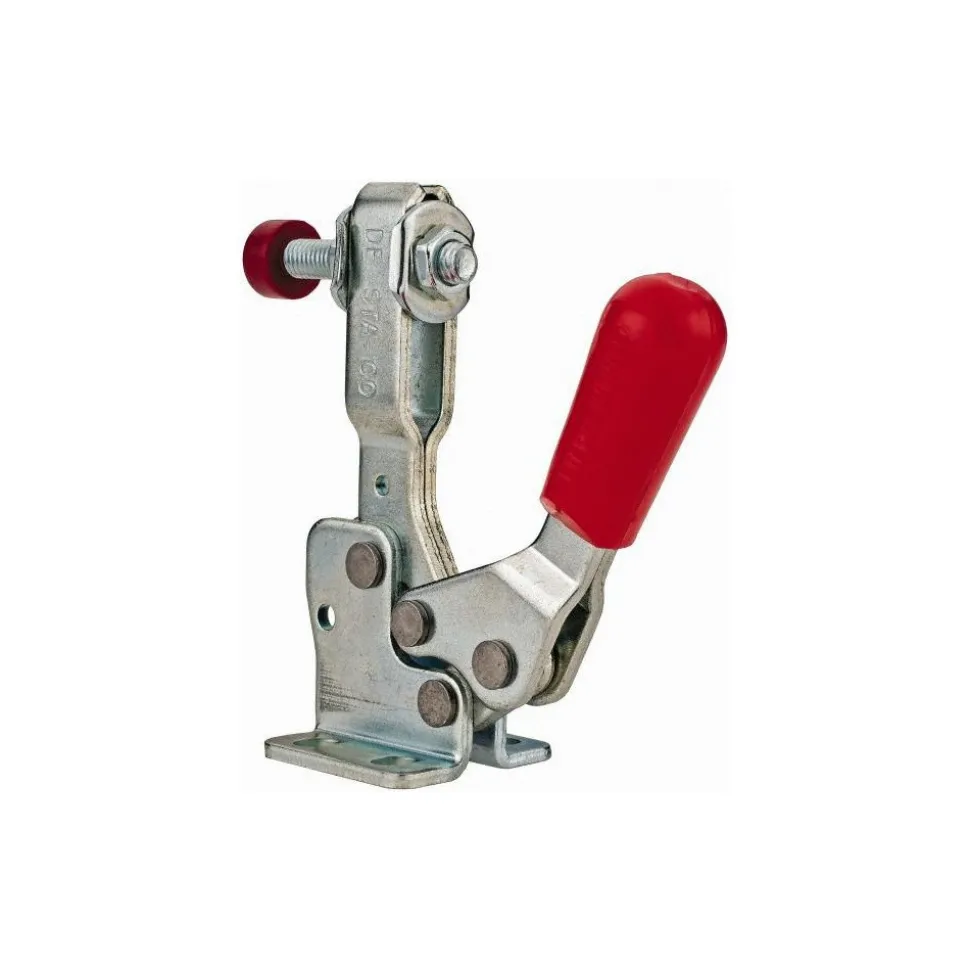

Manual Hold-Down Toggle Clamp: Horizontal, 150.00 lb Capacity, U-Bar, Flanged Base
11,89 $
Specifications
| Handle Orientation: Horizontal | Bar Style: U-Bar |
| Base Style: Flanged | Bar End Type: Fixed Spindle |
| Holding Capacity (N): 665.00 | Holding Capacity (Lb.): 150.00 |
| Length Distance Between Mount Holes (mm): 13.46 | Length Distance Between Mount Holes: 0.53 in; 13.46 mm |
| Length Distance Between Mount Holes (Inch): 0.53 | Width Distance Between Mount Holes (mm): 19.05 |
| Width Distance Between Mount Holes: 0.75 in; 19.05 mm | Width Distance Between Mount Holes (Decimal Inch): 0.7500 |
| Height Under Bar (Decimal Inch): 0.6500 | Height Under Bar (mm): 16.51 |
| Overall Length (mm): 102.87 | Overall Length (Decimal Inch): 4.0500 |
| Overall Height (Decimal Inch): 1.3900 | Overall Height (mm): 35.31 |
| Base Length (Inch): 1 | Base Length (mm): 25.40 |
| Base Width (Inch): 1.0600 | Base Width (mm): 26.92 |
| Handle Style: Straight | Material: Carbon Steel |
| Handle Material: Carbon Steel | Handle Color: Red |
| Mounting Hole Diameter (mm): 2.03 | Mounting Hole Diameter (Decimal Inch): 0.0800 |
| Bar Opening (Degrees): 90 | Handle Movement (Degrees): 60 |
| Maximum Mechanical Advantage: 03:01; 07:01 | Spindle Thread Size: M5x0.8 |
| Spindle Length (mm): 34.00 | Spindle Travel (Inch): 0.8500 |
| Spindle Travel (mm): 21.59 | Bar Width (mm): 9.40 |
| Bar Width (Decimal Inch): 0.3700 | UNSPSC Code: 31162902 |
| Front Of Base To Toggle Tip: 1.42 in | Includes: (2) Nuts; (1) Spindle; (2) Washers |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.4200 | Front of Base To Tip Of Toggle Bar (mm): 36.07 |
| Number Of Mounting Holes: 4.000 | Finish Coating: Zinc |
| Country of Origin: VARIOUS | |
| Handle Orientation: Horizontal | |
| Bar Style: U-Bar | |
| Base Style: Flanged | |
| Bar End Type: Fixed Spindle | |
| Holding Capacity (N): 665.00 | |
| Holding Capacity (Lb.): 150.00 | |
| Length Distance Between Mount Holes (mm): 13.46 | |
| Length Distance Between Mount Holes: 0.53 in; 13.46 mm | |
| Length Distance Between Mount Holes (Inch): 0.53 | |
| Width Distance Between Mount Holes (mm): 19.05 | |
| Width Distance Between Mount Holes: 0.75 in; 19.05 mm | |
| Width Distance Between Mount Holes (Decimal Inch): 0.7500 | |
| Height Under Bar (Decimal Inch): 0.6500 | |
| Height Under Bar (mm): 16.51 | |
| Overall Length (mm): 102.87 | |
| Overall Length (Decimal Inch): 4.0500 | |
| Overall Height (Decimal Inch): 1.3900 | |
| Overall Height (mm): 35.31 | |
| Base Length (Inch): 1 | |
| Base Length (mm): 25.40 | |
| Base Width (Inch): 1.0600 | |
| Base Width (mm): 26.92 | |
| Handle Style: Straight | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (mm): 2.03 | |
| Mounting Hole Diameter (Decimal Inch): 0.0800 | |
| Bar Opening (Degrees): 90 | |
| Handle Movement (Degrees): 60 | |
| Maximum Mechanical Advantage: 03:01; 07:01 | |
| Spindle Thread Size: M5x0.8 | |
| Spindle Length (mm): 34.00 | |
| Spindle Travel (Inch): 0.8500 | |
| Spindle Travel (mm): 21.59 | |
| Bar Width (mm): 9.40 | |
| Bar Width (Decimal Inch): 0.3700 | |
| UNSPSC Code: 31162902 | |
| Front Of Base To Toggle Tip: 1.42 in | |
| Includes: (2) Nuts; (1) Spindle; (2) Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.4200 | |
| Front of Base To Tip Of Toggle Bar (mm): 36.07 | |
| Number Of Mounting Holes: 4.000 | |
| Finish Coating: Zinc | |
| Country of Origin: VARIOUS |
| MSC# | 76988161 |
| Mfr# | 213-U |
| Big Book# | 1314 |
