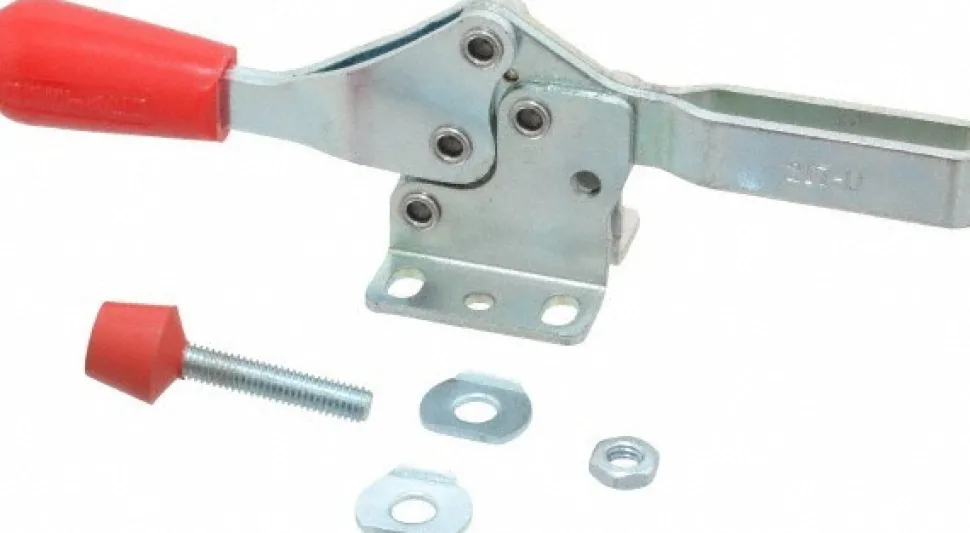

Manual Hold-Down Toggle Clamp: Horizontal, 200.00 lb Capacity, U-Bar, Flanged Base
Original price was: 20,00 $.14,89 $Current price is: 14,89 $.
Specifications
| Handle Orientation: Horizontal | Bar Style: U-Bar |
| Base Style: Flanged | Bar End Type: Fixed Spindle |
| Holding Capacity (N): 890.00 | Holding Capacity (Lb.): 200.00 |
| Length Distance Between Mount Holes (mm): 26.16 | Length Distance Between Mount Holes: 26.16 mm; 1.03 in |
| Length Distance Between Mount Holes (Inch): 1.03 | Width Distance Between Mount Holes (mm): 28.45 |
| Width Distance Between Mount Holes: 28.45 mm; 1.12 in | Width Distance Between Mount Holes (Decimal Inch): 1.1200 |
| Height Under Bar (Decimal Inch): 0.9200 | Height Under Bar (mm): 23.37 |
| Overall Length (mm): 167.13 | Overall Length (Decimal Inch): 6.5800 |
| Overall Height (Decimal Inch): 1.9500 | Overall Height (mm): 49.53 |
| Base Length (mm): 37.08 | Base Width (Inch): 1.5500 |
| Base Width (mm): 39.37 | Handle Style: Straight |
| Material: Carbon Steel | Handle Material: Carbon Steel |
| Handle Color: Red | Mounting Hole Diameter (mm): 5.50 |
| Mounting Hole Diameter (Decimal Inch): 0.2200 | Bar Opening (Degrees): 91 |
| Handle Movement (Degrees): 61 | Maximum Mechanical Advantage: 03:01; 07:01 |
| Spindle Thread Size: M6x1.0 | Spindle Length (mm): 44.00 |
| Spindle Travel (Inch): 1.5400 | Spindle Travel (mm): 39.12 |
| Bar Width (mm): 12.45 | Bar Width (Decimal Inch): 0.4900 |
| UNSPSC Code: 31162902 | Front Of Base To Toggle Tip: 2.30 in |
| Includes: (2) Nuts; (1) Spindle; (2) Washers | Front of Base To Tip Of Toggle Bar (Decimal Inch): 2.3000 |
| Front of Base To Tip Of Toggle Bar (mm): 58.42 | Number Of Mounting Holes: 6.000 |
| Finish Coating: Zinc | Country of Origin: UNITED STATES |
| Handle Orientation: Horizontal | |
| Bar Style: U-Bar | |
| Base Style: Flanged | |
| Bar End Type: Fixed Spindle | |
| Holding Capacity (N): 890.00 | |
| Holding Capacity (Lb.): 200.00 | |
| Length Distance Between Mount Holes (mm): 26.16 | |
| Length Distance Between Mount Holes: 26.16 mm; 1.03 in | |
| Length Distance Between Mount Holes (Inch): 1.03 | |
| Width Distance Between Mount Holes (mm): 28.45 | |
| Width Distance Between Mount Holes: 28.45 mm; 1.12 in | |
| Width Distance Between Mount Holes (Decimal Inch): 1.1200 | |
| Height Under Bar (Decimal Inch): 0.9200 | |
| Height Under Bar (mm): 23.37 | |
| Overall Length (mm): 167.13 | |
| Overall Length (Decimal Inch): 6.5800 | |
| Overall Height (Decimal Inch): 1.9500 | |
| Overall Height (mm): 49.53 | |
| Base Length (mm): 37.08 | |
| Base Width (Inch): 1.5500 | |
| Base Width (mm): 39.37 | |
| Handle Style: Straight | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (mm): 5.50 | |
| Mounting Hole Diameter (Decimal Inch): 0.2200 | |
| Bar Opening (Degrees): 91 | |
| Handle Movement (Degrees): 61 | |
| Maximum Mechanical Advantage: 03:01; 07:01 | |
| Spindle Thread Size: M6x1.0 | |
| Spindle Length (mm): 44.00 | |
| Spindle Travel (Inch): 1.5400 | |
| Spindle Travel (mm): 39.12 | |
| Bar Width (mm): 12.45 | |
| Bar Width (Decimal Inch): 0.4900 | |
| UNSPSC Code: 31162902 | |
| Front Of Base To Toggle Tip: 2.30 in | |
| Includes: (2) Nuts; (1) Spindle; (2) Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 2.3000 | |
| Front of Base To Tip Of Toggle Bar (mm): 58.42 | |
| Number Of Mounting Holes: 6.000 | |
| Finish Coating: Zinc | |
| Country of Origin: UNITED STATES |
| MSC# | 03583770 |
| Mfr# | 217-U |
| Big Book# | 1314 |
