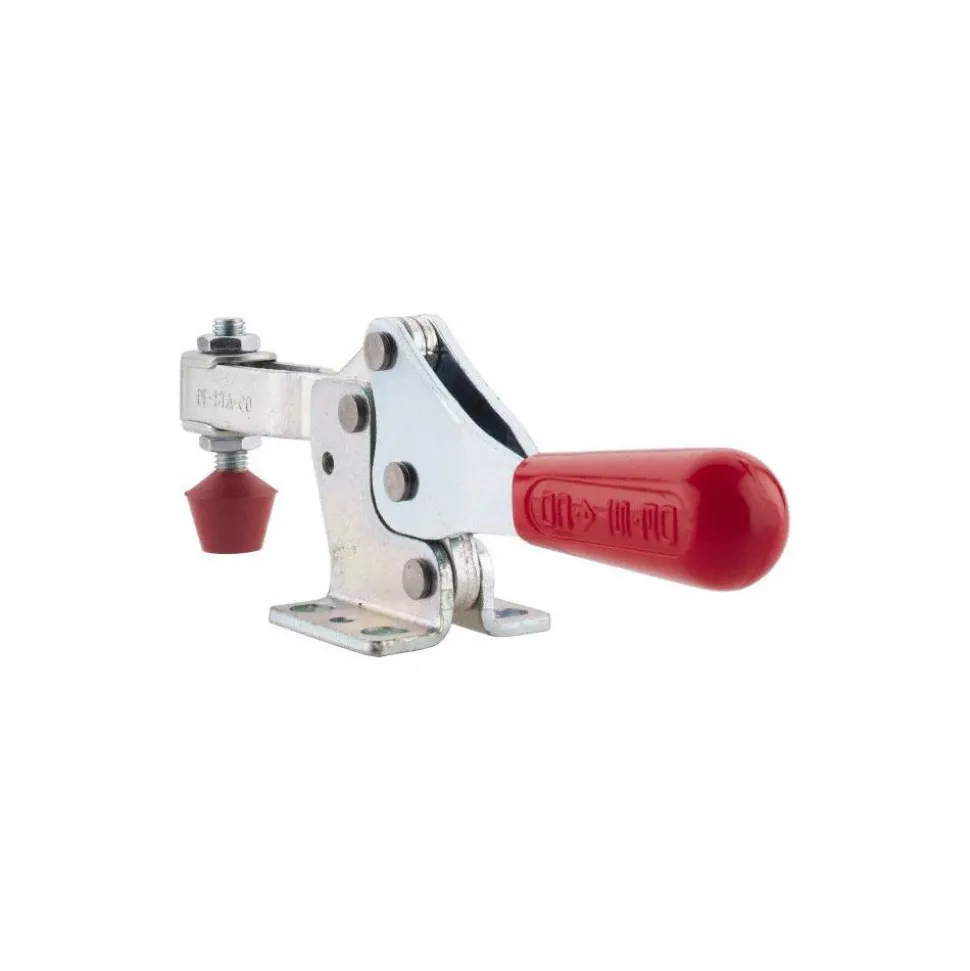

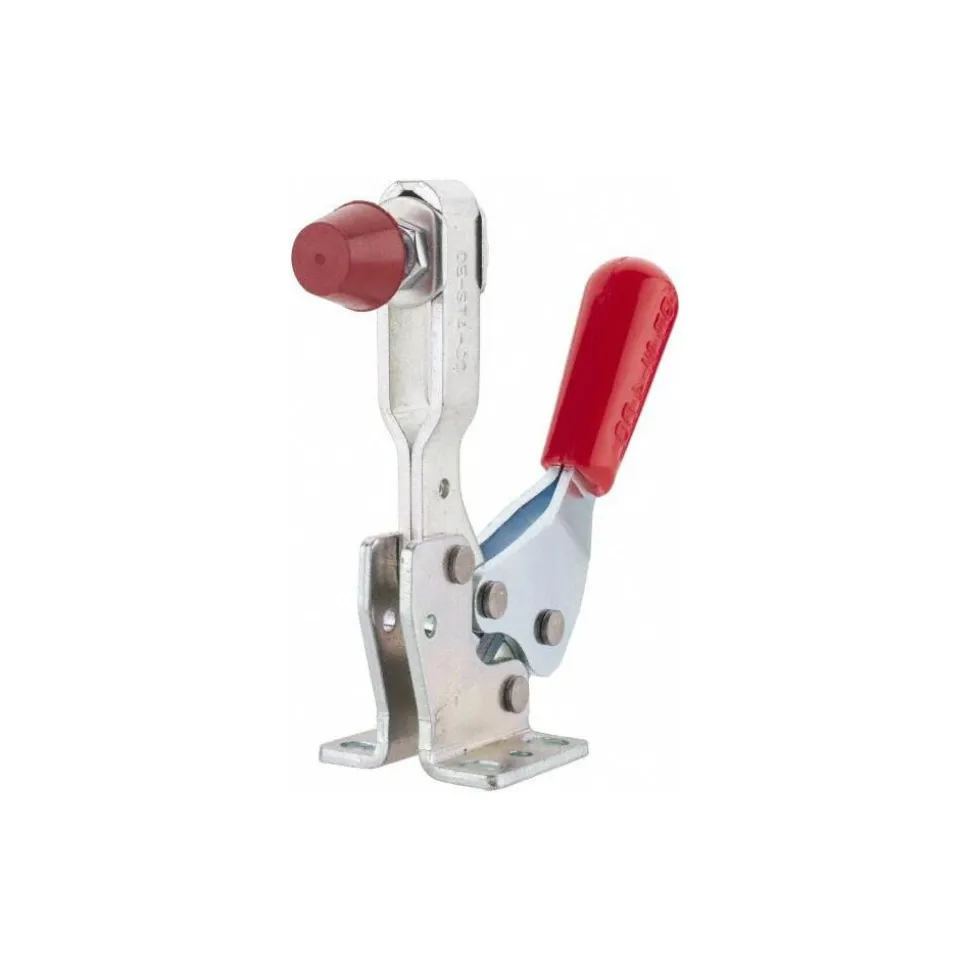

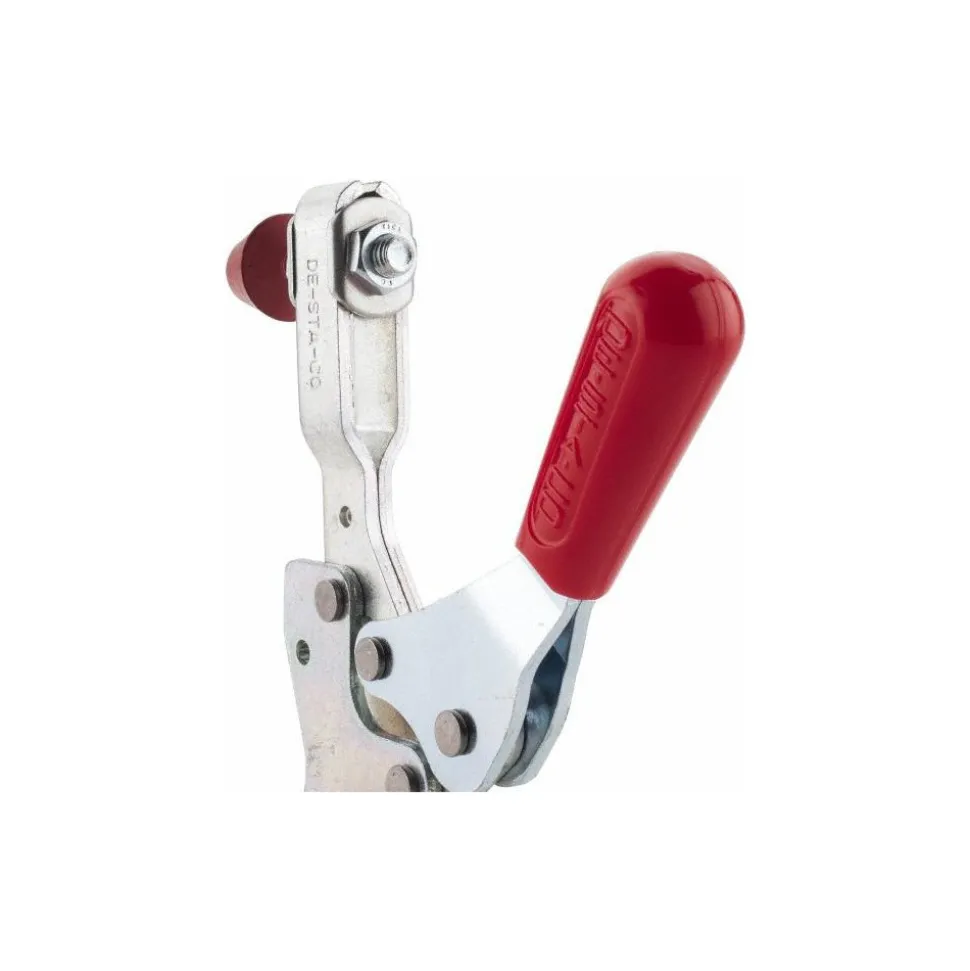

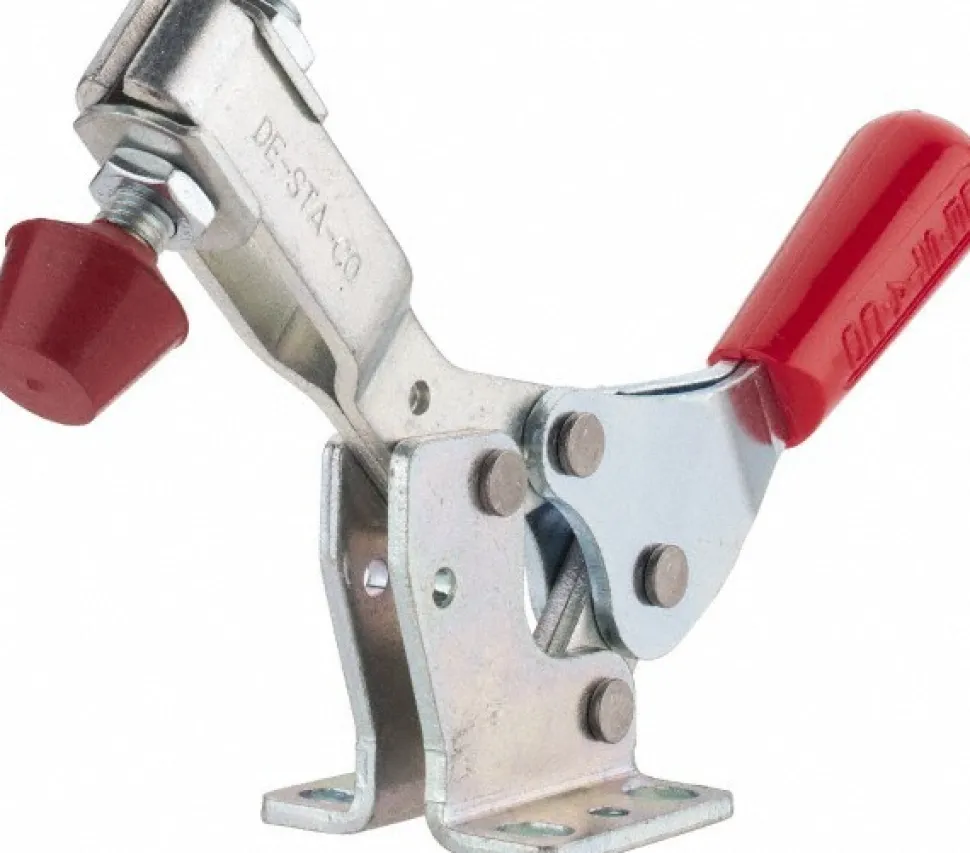

Manual Hold-Down Toggle Clamp: Horizontal, 500.00 lb Capacity, U-Bar, Flanged Base
Original price was: 22,00 $.16,99 $Current price is: 16,99 $.
Specifications
| Handle Orientation: Horizontal | Bar Style: U-Bar |
| Base Style: Flanged | Bar End Type: Fixed Spindle |
| Holding Capacity (N): 2220.00 | Holding Capacity (Lb.): 500.00 |
| Length Distance Between Mount Holes (mm): 25.91 | Length Distance Between Mount Holes: 25.91 mm; 1.02 in |
| Length Distance Between Mount Holes (Inch): 1.02 | Width Distance Between Mount Holes (mm): 31.50 |
| Width Distance Between Mount Holes: 31.5 mm; 1.24 in | Width Distance Between Mount Holes (Decimal Inch): 1.2400 |
| Height Under Bar (Decimal Inch): 1.2500 | Height Under Bar (mm): 31.75 |
| Overall Length (mm): 189.99 | Overall Length (Decimal Inch): 7.4800 |
| Overall Height (Decimal Inch): 2.4000 | Overall Height (mm): 60.96 |
| Base Length (mm): 39.88 | Base Width (Inch): 1.7400 |
| Base Width (mm): 44.20 | Handle Style: Straight |
| Material: Carbon Steel | Handle Material: Carbon Steel |
| Handle Color: Red | Mounting Hole Diameter (mm): 6.60 |
| Mounting Hole Diameter (Decimal Inch): 0.2600 | Bar Opening (Degrees): 91 |
| Handle Movement (Degrees): 56 | Maximum Mechanical Advantage: 03:01; 08:01 |
| Spindle Thread Size: M8x1.25 | Spindle Length (mm): 53.00 |
| Spindle Travel (Inch): 1.5400 | Spindle Travel (mm): 39.12 |
| Bar Width (mm): 14.22 | Bar Width (Decimal Inch): 0.5600 |
| UNSPSC Code: 31162902 | Front Of Base To Toggle Tip: 2.65 in |
| Includes: (2) Nuts; (1) Spindle; (2) Washers | Front of Base To Tip Of Toggle Bar (Decimal Inch): 2.6500 |
| Front of Base To Tip Of Toggle Bar (mm): 67.31 | Number Of Mounting Holes: 6.000 |
| Finish Coating: Zinc | Country of Origin: UNITED STATES |
| Handle Orientation: Horizontal | |
| Bar Style: U-Bar | |
| Base Style: Flanged | |
| Bar End Type: Fixed Spindle | |
| Holding Capacity (N): 2220.00 | |
| Holding Capacity (Lb.): 500.00 | |
| Length Distance Between Mount Holes (mm): 25.91 | |
| Length Distance Between Mount Holes: 25.91 mm; 1.02 in | |
| Length Distance Between Mount Holes (Inch): 1.02 | |
| Width Distance Between Mount Holes (mm): 31.50 | |
| Width Distance Between Mount Holes: 31.5 mm; 1.24 in | |
| Width Distance Between Mount Holes (Decimal Inch): 1.2400 | |
| Height Under Bar (Decimal Inch): 1.2500 | |
| Height Under Bar (mm): 31.75 | |
| Overall Length (mm): 189.99 | |
| Overall Length (Decimal Inch): 7.4800 | |
| Overall Height (Decimal Inch): 2.4000 | |
| Overall Height (mm): 60.96 | |
| Base Length (mm): 39.88 | |
| Base Width (Inch): 1.7400 | |
| Base Width (mm): 44.20 | |
| Handle Style: Straight | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (mm): 6.60 | |
| Mounting Hole Diameter (Decimal Inch): 0.2600 | |
| Bar Opening (Degrees): 91 | |
| Handle Movement (Degrees): 56 | |
| Maximum Mechanical Advantage: 03:01; 08:01 | |
| Spindle Thread Size: M8x1.25 | |
| Spindle Length (mm): 53.00 | |
| Spindle Travel (Inch): 1.5400 | |
| Spindle Travel (mm): 39.12 | |
| Bar Width (mm): 14.22 | |
| Bar Width (Decimal Inch): 0.5600 | |
| UNSPSC Code: 31162902 | |
| Front Of Base To Toggle Tip: 2.65 in | |
| Includes: (2) Nuts; (1) Spindle; (2) Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 2.6500 | |
| Front of Base To Tip Of Toggle Bar (mm): 67.31 | |
| Number Of Mounting Holes: 6.000 | |
| Finish Coating: Zinc | |
| Country of Origin: UNITED STATES |
| MSC# | 76988666 |
| Mfr# | 227-U |
| Big Book# | 1314 |
