Sale!

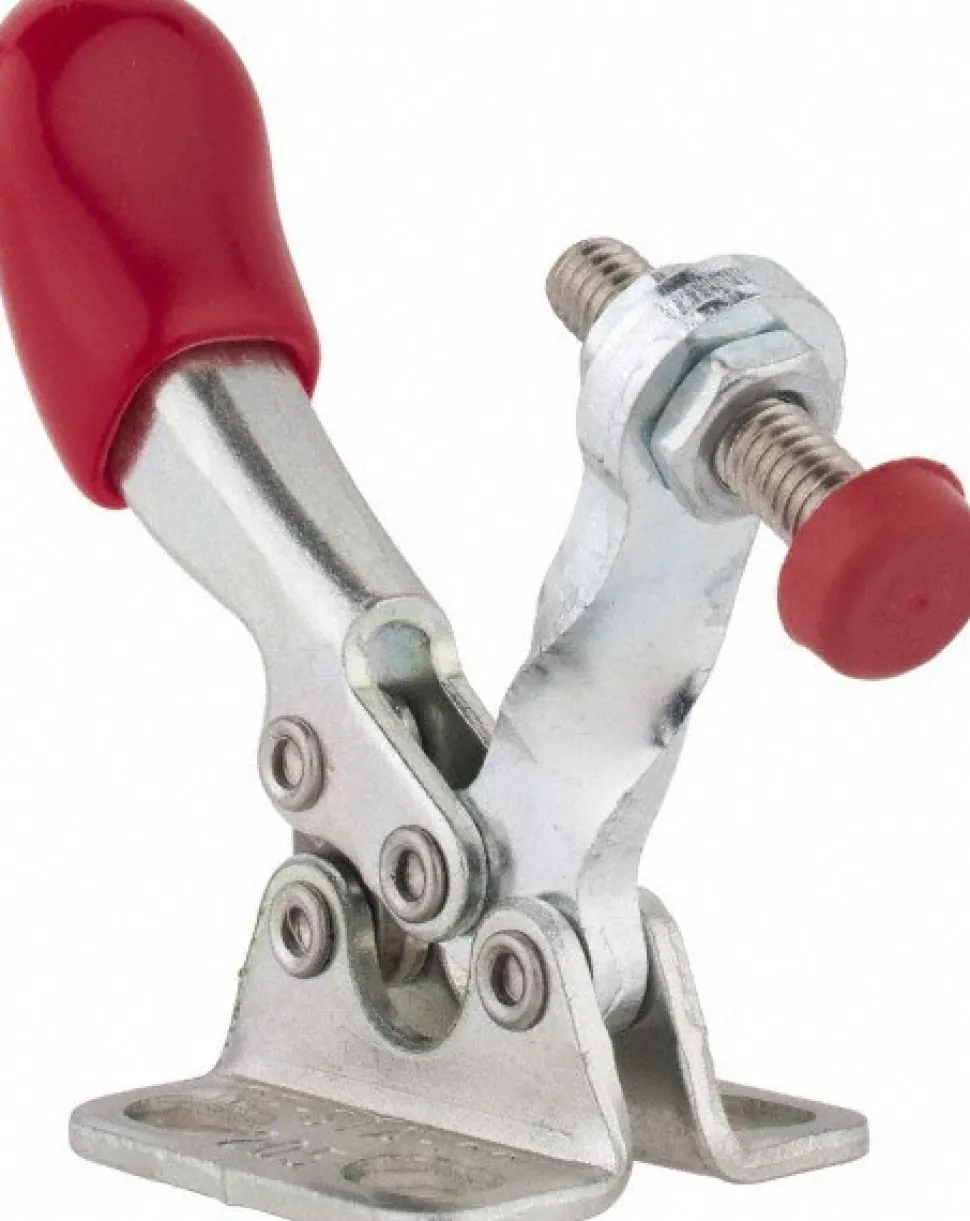

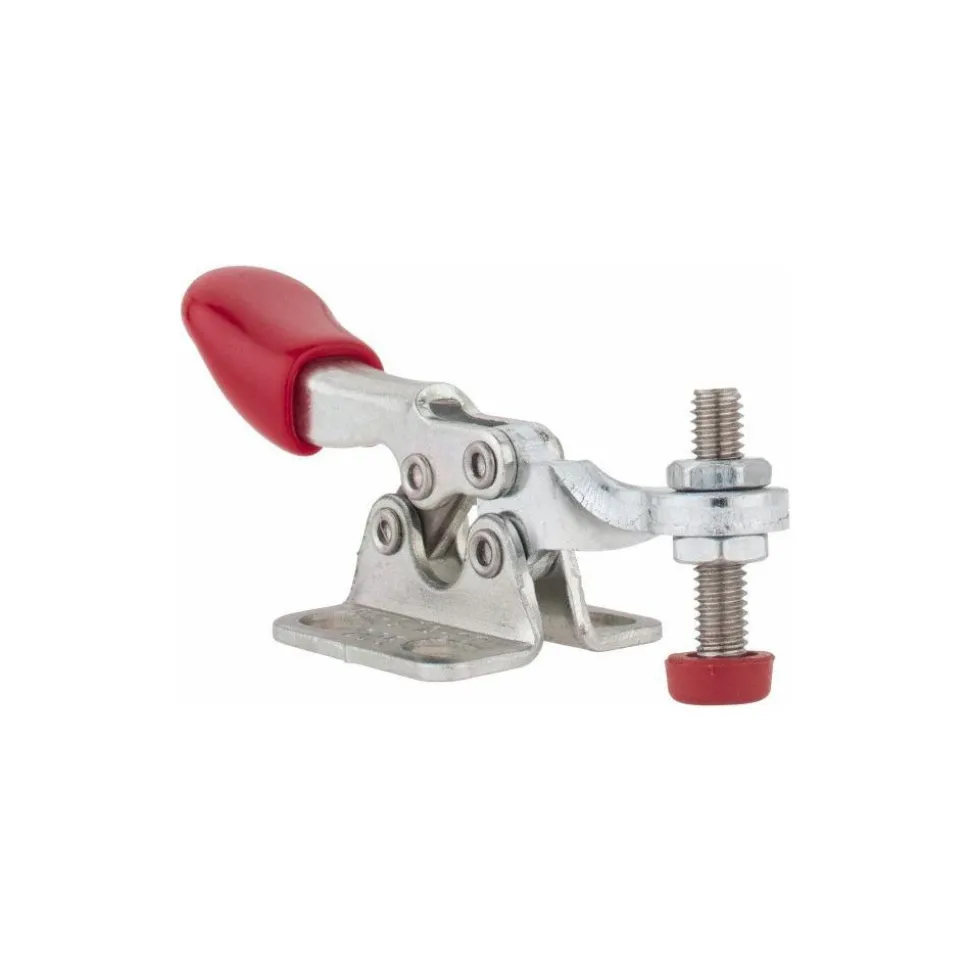

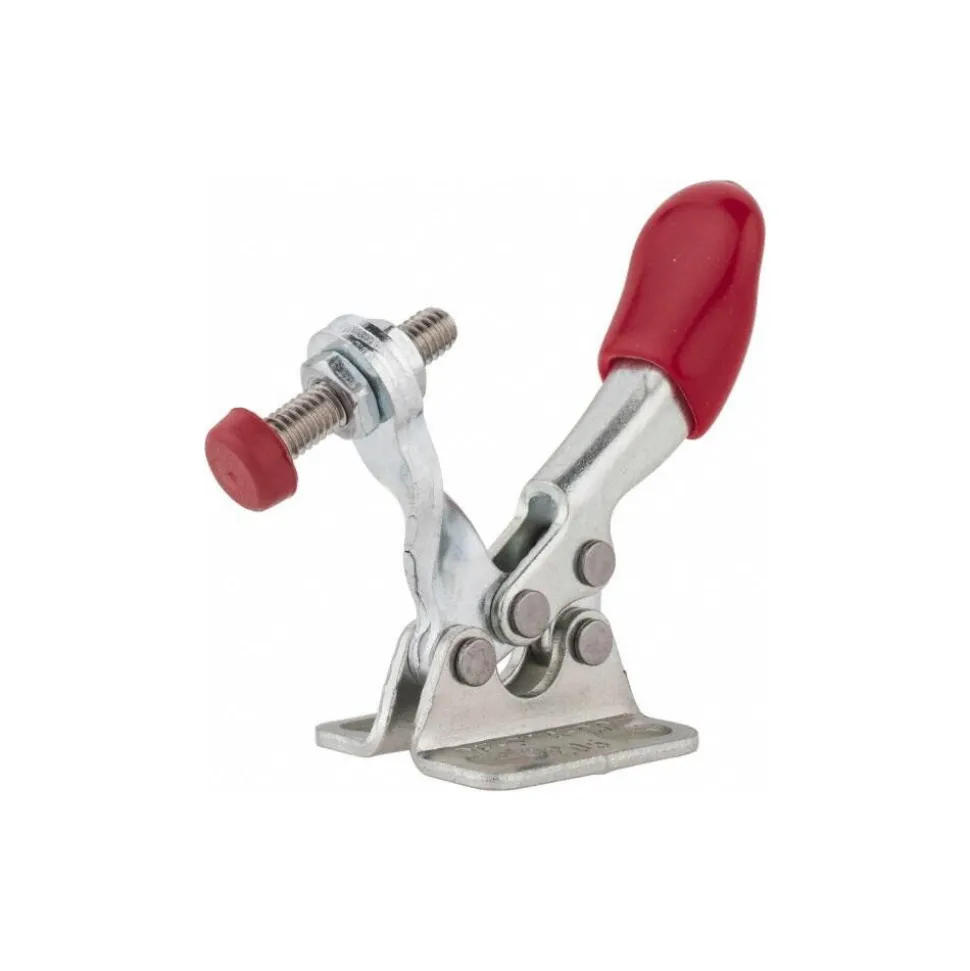

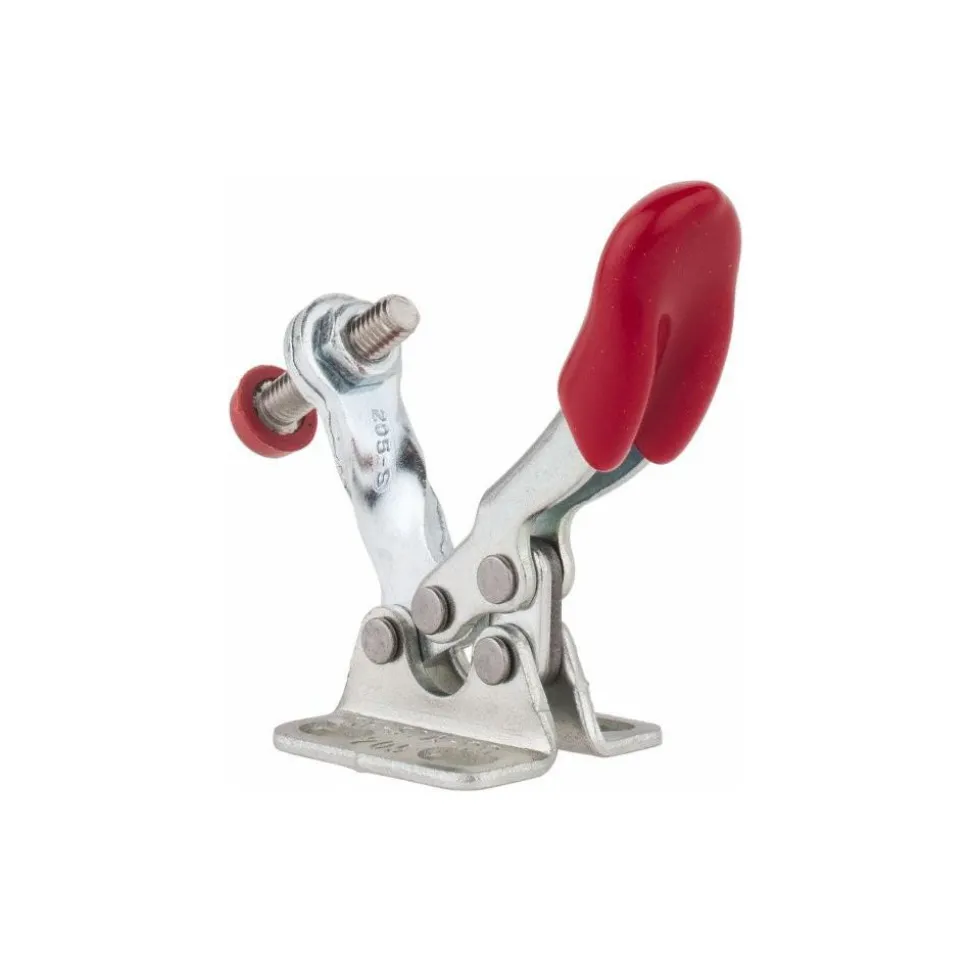

Manual Hold-Down Toggle Clamp: Horizontal, 60.00 lb Capacity, Solid Bar, Flanged Base
Original price was: 11,00 $.8,99 $Current price is: 8,99 $.
Specifications
| Handle Orientation: Horizontal | Bar Style: Solid |
| Base Style: Flanged | Bar End Type: Fixed Spindle |
| Holding Capacity (N): 265.00 | Holding Capacity (Lb.): 60.00 |
| Length Distance Between Mount Holes (mm): 15.75 | Length Distance Between Mount Holes: 0.62 in; 15.75 mm |
| Length Distance Between Mount Holes (Inch): 0.62 | Width Distance Between Mount Holes (mm): 15.75 |
| Width Distance Between Mount Holes: 0.62 in; 15.75 mm | Width Distance Between Mount Holes (Decimal Inch): 0.6200 |
| Height Under Bar (Decimal Inch): 0.3000 | Height Under Bar (mm): 7.62 |
| Overall Length (mm): 72.39 | Overall Length (Decimal Inch): 2.8500 |
| Overall Height (Decimal Inch): 0.6700 | Overall Height (mm): 17.02 |
| Base Length (mm): 61.21 | Base Width (Inch): 0.9500 |
| Base Width (mm): 24.13 | Handle Style: Straight |
| Material: Carbon Steel | Handle Material: Carbon Steel |
| Handle Color: Red | Mounting Hole Diameter (mm): 4.06 |
| Mounting Hole Diameter (Decimal Inch): 0.1600 | Bar Opening (Degrees): 94 |
| Handle Movement (Degrees): 82 | Maximum Mechanical Advantage: 04:01 |
| Spindle Thread Size: M4x0.7 | Spindle Length (mm): 22.00 |
| Bar Width (Inch): 1/4 | Bar Width (mm): 6.35 |
| Bar Width (Decimal Inch): 0.2500 | UNSPSC Code: 31162902 |
| Front Of Base To Toggle Tip: 0.73 in | Includes: (2) Nuts; (1) Spindle |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 0.7300 | Front of Base To Tip Of Toggle Bar (mm): 18.54 |
| Number Of Mounting Holes: 4.000 | Finish Coating: Zinc |
| Country of Origin: UNITED STATES | |
| Handle Orientation: Horizontal | |
| Bar Style: Solid | |
| Base Style: Flanged | |
| Bar End Type: Fixed Spindle | |
| Holding Capacity (N): 265.00 | |
| Holding Capacity (Lb.): 60.00 | |
| Length Distance Between Mount Holes (mm): 15.75 | |
| Length Distance Between Mount Holes: 0.62 in; 15.75 mm | |
| Length Distance Between Mount Holes (Inch): 0.62 | |
| Width Distance Between Mount Holes (mm): 15.75 | |
| Width Distance Between Mount Holes: 0.62 in; 15.75 mm | |
| Width Distance Between Mount Holes (Decimal Inch): 0.6200 | |
| Height Under Bar (Decimal Inch): 0.3000 | |
| Height Under Bar (mm): 7.62 | |
| Overall Length (mm): 72.39 | |
| Overall Length (Decimal Inch): 2.8500 | |
| Overall Height (Decimal Inch): 0.6700 | |
| Overall Height (mm): 17.02 | |
| Base Length (mm): 61.21 | |
| Base Width (Inch): 0.9500 | |
| Base Width (mm): 24.13 | |
| Handle Style: Straight | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (mm): 4.06 | |
| Mounting Hole Diameter (Decimal Inch): 0.1600 | |
| Bar Opening (Degrees): 94 | |
| Handle Movement (Degrees): 82 | |
| Maximum Mechanical Advantage: 04:01 | |
| Spindle Thread Size: M4x0.7 | |
| Spindle Length (mm): 22.00 | |
| Bar Width (Inch): 1/4 | |
| Bar Width (mm): 6.35 | |
| Bar Width (Decimal Inch): 0.2500 | |
| UNSPSC Code: 31162902 | |
| Front Of Base To Toggle Tip: 0.73 in | |
| Includes: (2) Nuts; (1) Spindle | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 0.7300 | |
| Front of Base To Tip Of Toggle Bar (mm): 18.54 | |
| Number Of Mounting Holes: 4.000 | |
| Finish Coating: Zinc | |
| Country of Origin: UNITED STATES |
| MSC# | 76988120 |
| Mfr# | 205-S |
| Big Book# | 1314 |
