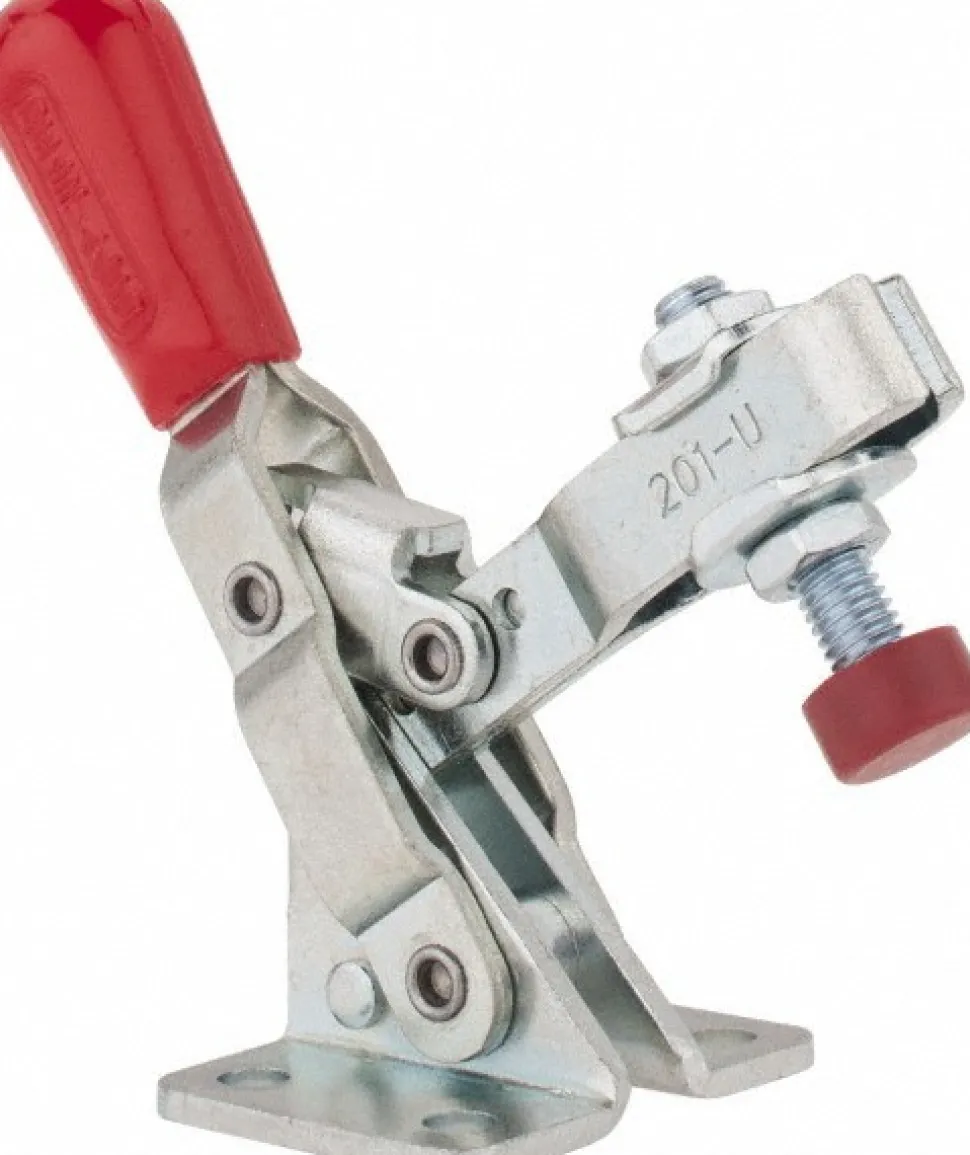

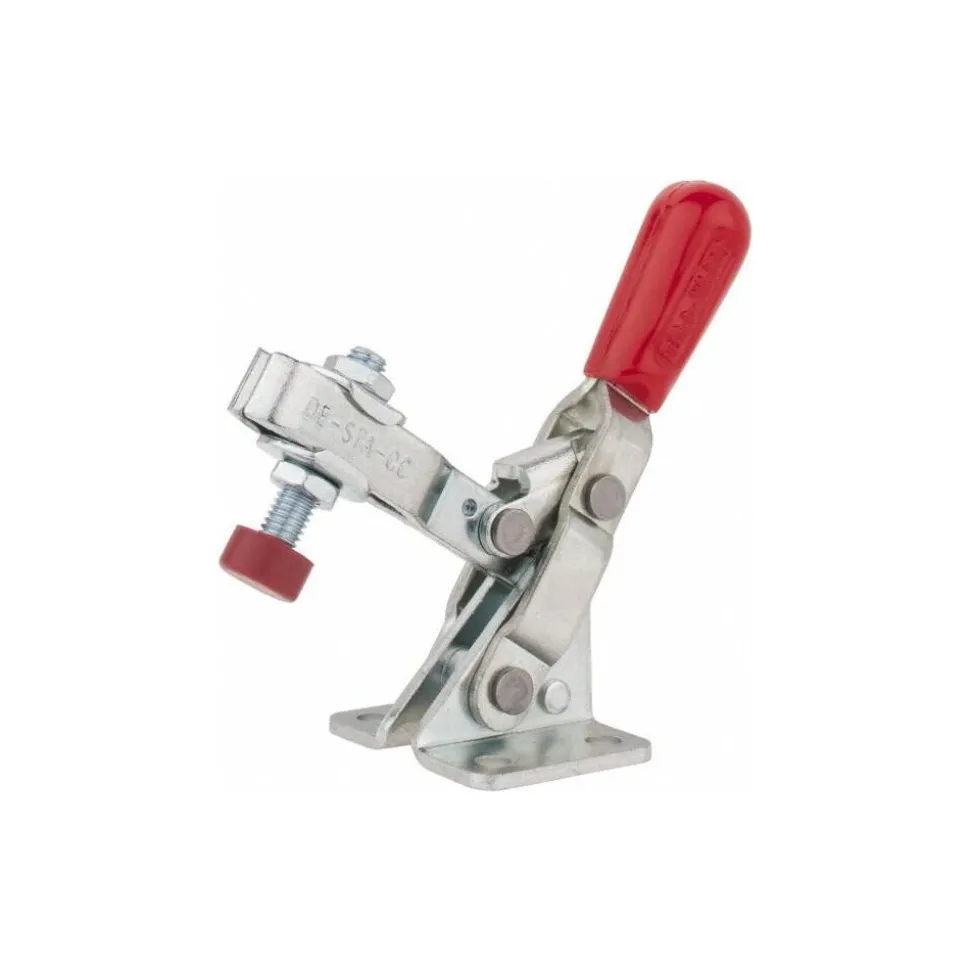

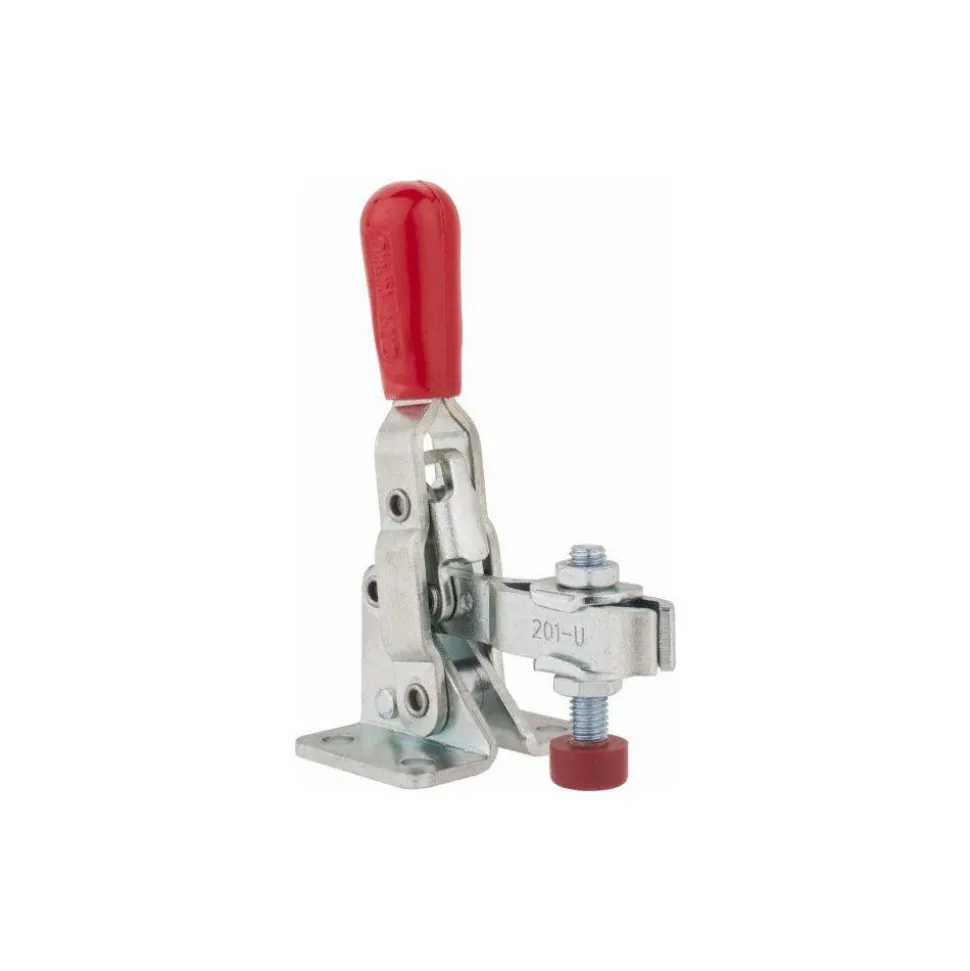

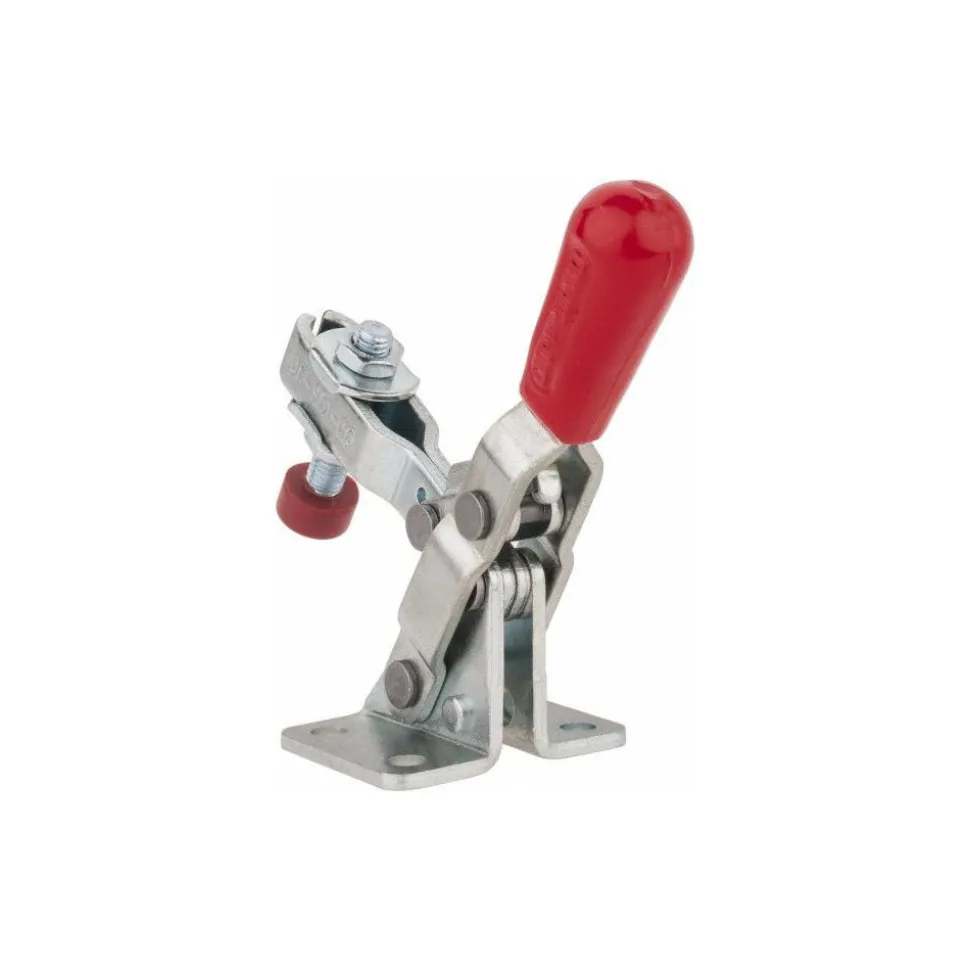

Manual Hold-Down Toggle Clamp: Vertical, 100.00 lb Capacity, U-Bar, Flanged Base
12,89 $
Specifications
| Handle Orientation: Vertical | Bar Style: U-Bar |
| Base Style: Flanged | Bar End Type: Fixed Spindle |
| Holding Capacity (N): 440.00 | Holding Capacity (Lb.): 100.00 |
| Length Distance Between Mount Holes (mm): 16.00 | Length Distance Between Mount Holes: 0.63 in; 16 mm |
| Length Distance Between Mount Holes (Inch): 0.63 | Width Distance Between Mount Holes (mm): 23.88 |
| Width Distance Between Mount Holes: 23.88 mm; 0.94 in | Width Distance Between Mount Holes (Decimal Inch): 0.9400 |
| Height Under Bar (Decimal Inch): 0.6300 | Height Under Bar (mm): 16.00 |
| Overall Length (mm): 51.82 | Overall Length (Decimal Inch): 2.0400 |
| Overall Height (Decimal Inch): 3.0800 | Overall Height (mm): 78.23 |
| Base Length (Inch): 1 | Base Length (mm): 25.40 |
| Base Width (Inch): 1.3400 | Base Width (mm): 34.04 |
| Handle Style: Straight | Material: Carbon Steel |
| Handle Material: Carbon Steel | Handle Color: Red |
| Mounting Hole Diameter (mm): 4.32 | Mounting Hole Diameter (Decimal Inch): 0.1700 |
| Bar Opening (Degrees): 100 | Handle Movement (Degrees): 55 |
| Maximum Mechanical Advantage: 06:01; 09:01 | Spindle Thread Size: M5x0.8 |
| Spindle Length (mm): 29.00 | Spindle Travel (Inch): 0.7300 |
| Spindle Travel (mm): 18.54 | Bar Width (mm): 7.87 |
| Bar Width (Decimal Inch): 0.3100 | UNSPSC Code: 31162902 |
| Front Of Base To Toggle Tip: 1.04 in | Includes: (2) Nuts; Spindle; (2) Flanged Washers |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.0400 | Front of Base To Tip Of Toggle Bar (mm): 26.42 |
| Number Of Mounting Holes: 4.000 | Finish Coating: Zinc |
| Country of Origin: VARIOUS | |
| Handle Orientation: Vertical | |
| Bar Style: U-Bar | |
| Base Style: Flanged | |
| Bar End Type: Fixed Spindle | |
| Holding Capacity (N): 440.00 | |
| Holding Capacity (Lb.): 100.00 | |
| Length Distance Between Mount Holes (mm): 16.00 | |
| Length Distance Between Mount Holes: 0.63 in; 16 mm | |
| Length Distance Between Mount Holes (Inch): 0.63 | |
| Width Distance Between Mount Holes (mm): 23.88 | |
| Width Distance Between Mount Holes: 23.88 mm; 0.94 in | |
| Width Distance Between Mount Holes (Decimal Inch): 0.9400 | |
| Height Under Bar (Decimal Inch): 0.6300 | |
| Height Under Bar (mm): 16.00 | |
| Overall Length (mm): 51.82 | |
| Overall Length (Decimal Inch): 2.0400 | |
| Overall Height (Decimal Inch): 3.0800 | |
| Overall Height (mm): 78.23 | |
| Base Length (Inch): 1 | |
| Base Length (mm): 25.40 | |
| Base Width (Inch): 1.3400 | |
| Base Width (mm): 34.04 | |
| Handle Style: Straight | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (mm): 4.32 | |
| Mounting Hole Diameter (Decimal Inch): 0.1700 | |
| Bar Opening (Degrees): 100 | |
| Handle Movement (Degrees): 55 | |
| Maximum Mechanical Advantage: 06:01; 09:01 | |
| Spindle Thread Size: M5x0.8 | |
| Spindle Length (mm): 29.00 | |
| Spindle Travel (Inch): 0.7300 | |
| Spindle Travel (mm): 18.54 | |
| Bar Width (mm): 7.87 | |
| Bar Width (Decimal Inch): 0.3100 | |
| UNSPSC Code: 31162902 | |
| Front Of Base To Toggle Tip: 1.04 in | |
| Includes: (2) Nuts; Spindle; (2) Flanged Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.0400 | |
| Front of Base To Tip Of Toggle Bar (mm): 26.42 | |
| Number Of Mounting Holes: 4.000 | |
| Finish Coating: Zinc | |
| Country of Origin: VARIOUS |
| MSC# | 76988146 |
| Mfr# | 201-U |
| Big Book# | 1311 |
