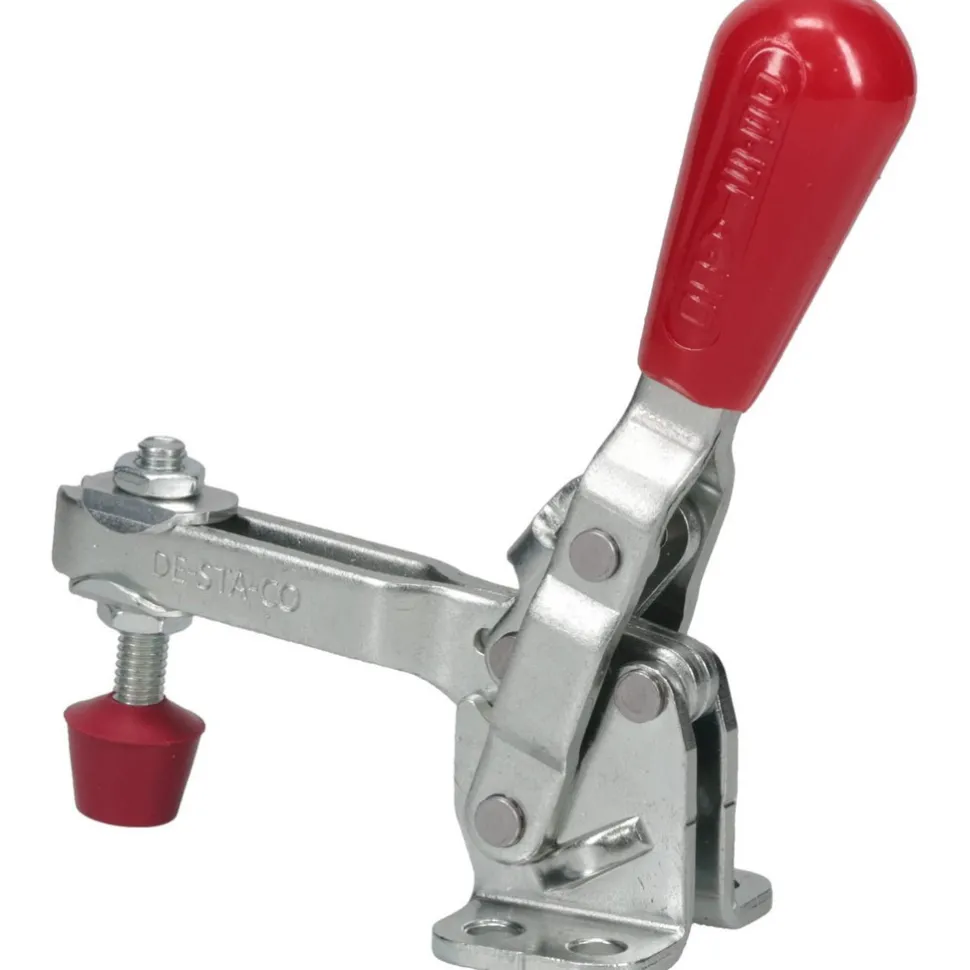

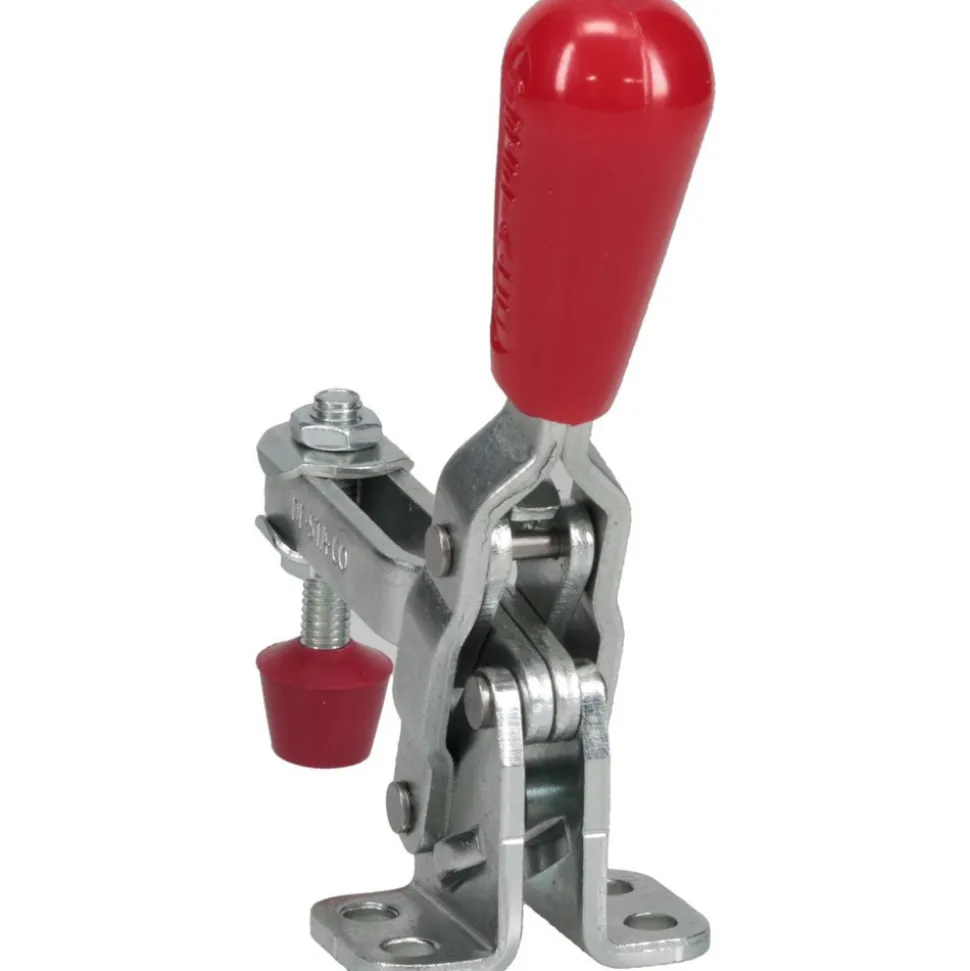

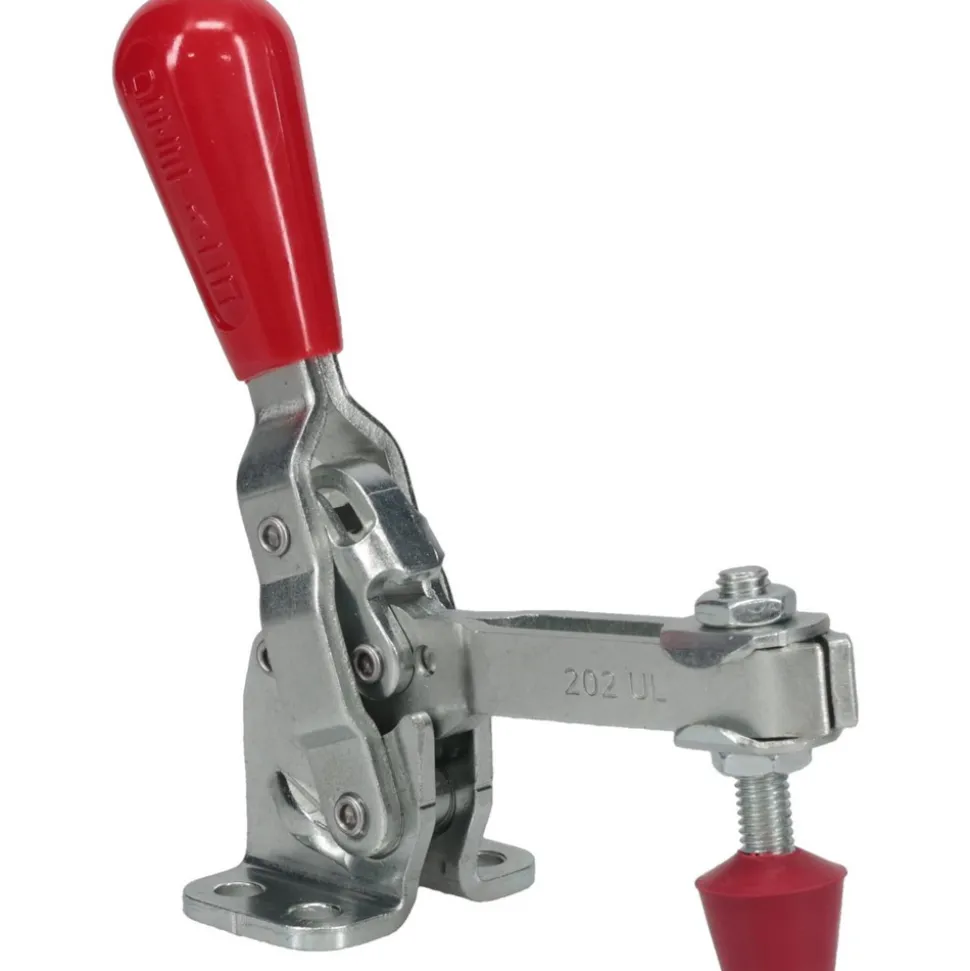

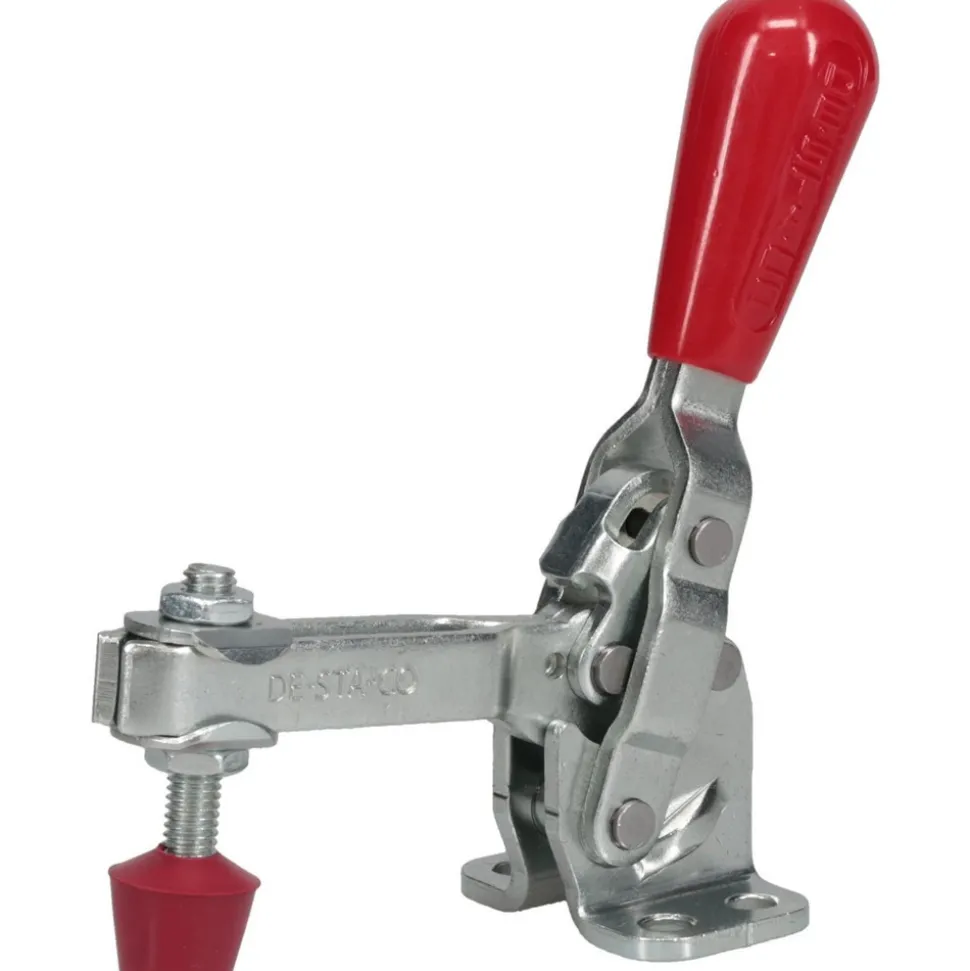

Manual Hold-Down Toggle Clamp: Vertical, 200.00 lb Capacity, U-Bar, Flanged Base
14,99 $
Specifications
| Handle Orientation: Vertical | Bar Style: U-Bar |
| Base Style: Flanged | Bar End Type: Open |
| Holding Capacity (N): 890.00 | Holding Capacity (Lb.): 200.00 |
| Length Distance Between Mount Holes (mm): 12.45 | Length Distance Between Mount Holes: 0.49 in; 12.45 mm |
| Length Distance Between Mount Holes (Inch): 0.49 | Width Distance Between Mount Holes (mm): 26.92 |
| Width Distance Between Mount Holes: 26.92 mm; 1.06 in | Width Distance Between Mount Holes (Decimal Inch): 1.0600 |
| Height Under Bar (Decimal Inch): 0.9300 | Overall Length (mm): 3.29 |
| Overall Height (Decimal Inch): 4.3100 | Base Length (Inch): 1 |
| Base Length (mm): 25.40 | Base Width (Inch): 1.5600 |
| Base Width (mm): 39.62 | Handle Style: Straight |
| Material: Carbon Steel | Handle Material: Carbon Steel |
| Handle Color: Red | Mounting Hole Diameter (mm): 5.59 |
| Mounting Hole Diameter (Decimal Inch): 0.2200 | Bar Opening (Degrees): 105 |
| Handle Movement (Degrees): 65 | Maximum Mechanical Advantage: 10:01; 04:01 |
| Spindle Thread Size: 1/4-20 | Spindle Length: 1-1/2 |
| Spindle Travel (Inch): 1.5400 | Bar Width (mm): 23.37 |
| Bar Width (Decimal Inch): 0.9200 | UNSPSC Code: 31162902 |
| Front Of Base To Toggle Tip: 1.50 in | Includes: (2) Nuts; Spindle; (2) Flanged Washers |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.5000 | Front of Base To Tip Of Toggle Bar (mm): 38.10 |
| Number Of Mounting Holes: 4.000 | Finish Coating: Zinc |
| Country of Origin: VARIOUS | |
| Handle Orientation: Vertical | |
| Bar Style: U-Bar | |
| Base Style: Flanged | |
| Bar End Type: Open | |
| Holding Capacity (N): 890.00 | |
| Holding Capacity (Lb.): 200.00 | |
| Length Distance Between Mount Holes (mm): 12.45 | |
| Length Distance Between Mount Holes: 0.49 in; 12.45 mm | |
| Length Distance Between Mount Holes (Inch): 0.49 | |
| Width Distance Between Mount Holes (mm): 26.92 | |
| Width Distance Between Mount Holes: 26.92 mm; 1.06 in | |
| Width Distance Between Mount Holes (Decimal Inch): 1.0600 | |
| Height Under Bar (Decimal Inch): 0.9300 | |
| Overall Length (mm): 3.29 | |
| Overall Height (Decimal Inch): 4.3100 | |
| Base Length (Inch): 1 | |
| Base Length (mm): 25.40 | |
| Base Width (Inch): 1.5600 | |
| Base Width (mm): 39.62 | |
| Handle Style: Straight | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (mm): 5.59 | |
| Mounting Hole Diameter (Decimal Inch): 0.2200 | |
| Bar Opening (Degrees): 105 | |
| Handle Movement (Degrees): 65 | |
| Maximum Mechanical Advantage: 10:01; 04:01 | |
| Spindle Thread Size: 1/4-20 | |
| Spindle Length: 1-1/2 | |
| Spindle Travel (Inch): 1.5400 | |
| Bar Width (mm): 23.37 | |
| Bar Width (Decimal Inch): 0.9200 | |
| UNSPSC Code: 31162902 | |
| Front Of Base To Toggle Tip: 1.50 in | |
| Includes: (2) Nuts; Spindle; (2) Flanged Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.5000 | |
| Front of Base To Tip Of Toggle Bar (mm): 38.10 | |
| Number Of Mounting Holes: 4.000 | |
| Finish Coating: Zinc | |
| Country of Origin: VARIOUS |
| MSC# | 03859980 |
| Mfr# | 202-UL |
| Big Book# | 1311 |
