Sale!

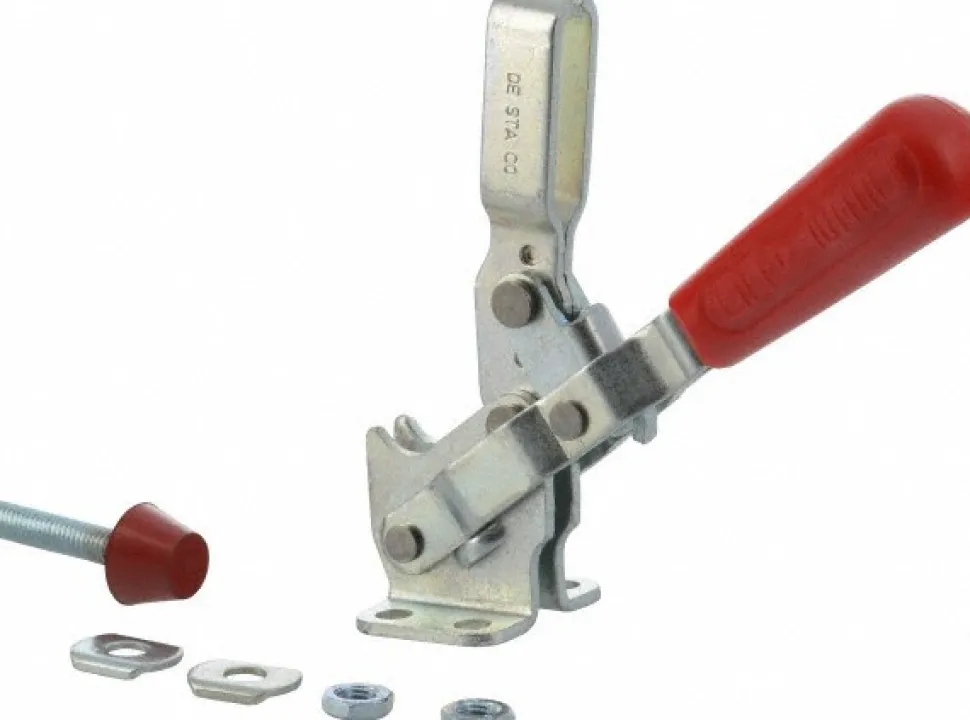

Manual Hold-Down Toggle Clamp: Vertical, 375.00 lb Capacity, U-Bar, Flanged Base
Original price was: 23,00 $.16,99 $Current price is: 16,99 $.
Specifications
| Handle Orientation: Vertical | Bar Style: U-Bar |
| Base Style: Flanged | Bar End Type: Fixed Spindle |
| Holding Capacity (N): 1670.00 | Holding Capacity (Lb.): 375.00 |
| Length Distance Between Mount Holes (mm): 19.05 | Length Distance Between Mount Holes: 0.75 in; 19.05 mm |
| Length Distance Between Mount Holes (Inch): 0.75 | Width Distance Between Mount Holes (mm): 31.75 |
| Width Distance Between Mount Holes: 31.75 mm; 1.25 in | Width Distance Between Mount Holes (Decimal Inch): 1.2500 |
| Height Under Bar (Decimal Inch): 1.2500 | Height Under Bar (mm): 31.75 |
| Overall Height (Decimal Inch): 6.9300 | Overall Height (mm): 176.02 |
| Base Length (mm): 35.05 | Base Width (Inch): 1.7300 |
| Base Width (mm): 43.94 | Handle Style: Straight |
| Material: Carbon Steel | Handle Material: Carbon Steel |
| Handle Color: Red | Mounting Hole Diameter (mm): 7.11 |
| Mounting Hole Diameter (Decimal Inch): 0.2800 | Bar Opening (Degrees): 99 |
| Handle Movement (Degrees): 57 | Maximum Mechanical Advantage: 12:01; 06:01 |
| Spindle Travel (Inch): 1.3000 | Spindle Travel (mm): 33.02 |
| Bar Width (mm): 16.00 | Bar Width (Decimal Inch): 0.6300 |
| UNSPSC Code: 31162902 | Front Of Base To Toggle Tip: 2.14 in |
| Includes: Spindle Assembly; Flanged Washers | Front of Base To Tip Of Toggle Bar (Decimal Inch): 2.1400 |
| Front of Base To Tip Of Toggle Bar (mm): 54.36 | Number Of Mounting Holes: 4.000 |
| Country of Origin: VARIOUS | |
| Handle Orientation: Vertical | |
| Bar Style: U-Bar | |
| Base Style: Flanged | |
| Bar End Type: Fixed Spindle | |
| Holding Capacity (N): 1670.00 | |
| Holding Capacity (Lb.): 375.00 | |
| Length Distance Between Mount Holes (mm): 19.05 | |
| Length Distance Between Mount Holes: 0.75 in; 19.05 mm | |
| Length Distance Between Mount Holes (Inch): 0.75 | |
| Width Distance Between Mount Holes (mm): 31.75 | |
| Width Distance Between Mount Holes: 31.75 mm; 1.25 in | |
| Width Distance Between Mount Holes (Decimal Inch): 1.2500 | |
| Height Under Bar (Decimal Inch): 1.2500 | |
| Height Under Bar (mm): 31.75 | |
| Overall Height (Decimal Inch): 6.9300 | |
| Overall Height (mm): 176.02 | |
| Base Length (mm): 35.05 | |
| Base Width (Inch): 1.7300 | |
| Base Width (mm): 43.94 | |
| Handle Style: Straight | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (mm): 7.11 | |
| Mounting Hole Diameter (Decimal Inch): 0.2800 | |
| Bar Opening (Degrees): 99 | |
| Handle Movement (Degrees): 57 | |
| Maximum Mechanical Advantage: 12:01; 06:01 | |
| Spindle Travel (Inch): 1.3000 | |
| Spindle Travel (mm): 33.02 | |
| Bar Width (mm): 16.00 | |
| Bar Width (Decimal Inch): 0.6300 | |
| UNSPSC Code: 31162902 | |
| Front Of Base To Toggle Tip: 2.14 in | |
| Includes: Spindle Assembly; Flanged Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 2.1400 | |
| Front of Base To Tip Of Toggle Bar (mm): 54.36 | |
| Number Of Mounting Holes: 4.000 | |
| Country of Origin: VARIOUS |
| MSC# | 93153773 |
| Mfr# | 207-U |
| Big Book# | 1315 |
