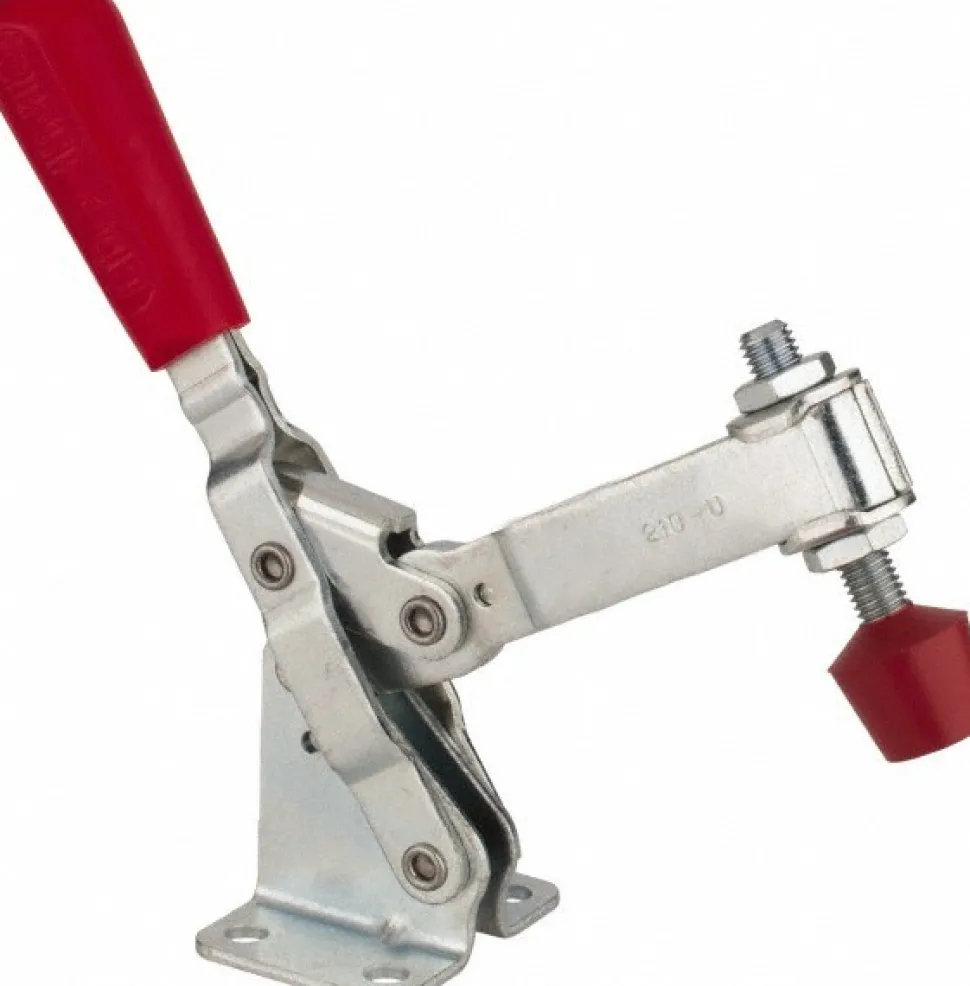

Manual Hold-Down Toggle Clamp: Vertical, 600.24 lb Capacity, U-Bar, Flanged Base
24,89 $
Specifications
| Handle Orientation: Vertical | Bar Style: U-Bar |
| Base Style: Flanged | Bar End Type: Fixed Spindle |
| Holding Capacity (N): 2670.00 | Holding Capacity (Lb.): 600.24 |
| Length Distance Between Mount Holes (mm): 32.00 | Length Distance Between Mount Holes: 32 mm; 1.26 in |
| Length Distance Between Mount Holes (Inch): 1.26 | Width Distance Between Mount Holes (mm): 44.96 |
| Width Distance Between Mount Holes: 1.77 in; 44.96 mm | Width Distance Between Mount Holes (Decimal Inch): 1.7700 |
| Height Under Bar (Decimal Inch): 1.6700 | Height Under Bar (mm): 42.42 |
| Overall Length (mm): 170.18 | Overall Length (Decimal Inch): 6.7000 |
| Overall Height (Decimal Inch): 8.1900 | Overall Height (mm): 208.03 |
| Base Length (mm): 48.01 | Base Width (Inch): 2.5600 |
| Base Width (mm): 65.02 | Handle Style: Straight |
| Material: Carbon Steel | Handle Material: Carbon Steel |
| Handle Color: Red | Mounting Hole Diameter (mm): 8.38 |
| Mounting Hole Diameter (Decimal Inch): 0.3300 | Bar Opening (Degrees): 103 |
| Handle Movement (Degrees): 58 | Maximum Mechanical Advantage: 14:01; 07:01 |
| Spindle Travel (Inch): 2.3500 | Spindle Travel (mm): 59.69 |
| Bar Width (mm): 20.07 | Bar Width (Decimal Inch): 0.7900 |
| UNSPSC Code: 31162902 | Front Of Base To Toggle Tip: 3.65 in |
| Includes: Spindle Assembly; Flanged Washers | Front of Base To Tip Of Toggle Bar (Decimal Inch): 3.6500 |
| Front of Base To Tip Of Toggle Bar (mm): 92.71 | Number Of Mounting Holes: 4.000 |
| Country of Origin: VARIOUS | |
| Handle Orientation: Vertical | |
| Bar Style: U-Bar | |
| Base Style: Flanged | |
| Bar End Type: Fixed Spindle | |
| Holding Capacity (N): 2670.00 | |
| Holding Capacity (Lb.): 600.24 | |
| Length Distance Between Mount Holes (mm): 32.00 | |
| Length Distance Between Mount Holes: 32 mm; 1.26 in | |
| Length Distance Between Mount Holes (Inch): 1.26 | |
| Width Distance Between Mount Holes (mm): 44.96 | |
| Width Distance Between Mount Holes: 1.77 in; 44.96 mm | |
| Width Distance Between Mount Holes (Decimal Inch): 1.7700 | |
| Height Under Bar (Decimal Inch): 1.6700 | |
| Height Under Bar (mm): 42.42 | |
| Overall Length (mm): 170.18 | |
| Overall Length (Decimal Inch): 6.7000 | |
| Overall Height (Decimal Inch): 8.1900 | |
| Overall Height (mm): 208.03 | |
| Base Length (mm): 48.01 | |
| Base Width (Inch): 2.5600 | |
| Base Width (mm): 65.02 | |
| Handle Style: Straight | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (mm): 8.38 | |
| Mounting Hole Diameter (Decimal Inch): 0.3300 | |
| Bar Opening (Degrees): 103 | |
| Handle Movement (Degrees): 58 | |
| Maximum Mechanical Advantage: 14:01; 07:01 | |
| Spindle Travel (Inch): 2.3500 | |
| Spindle Travel (mm): 59.69 | |
| Bar Width (mm): 20.07 | |
| Bar Width (Decimal Inch): 0.7900 | |
| UNSPSC Code: 31162902 | |
| Front Of Base To Toggle Tip: 3.65 in | |
| Includes: Spindle Assembly; Flanged Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 3.6500 | |
| Front of Base To Tip Of Toggle Bar (mm): 92.71 | |
| Number Of Mounting Holes: 4.000 | |
| Country of Origin: VARIOUS |
| MSC# | 44003242 |
| Mfr# | 210-U |
| Big Book# | 1315 |
