Sale!

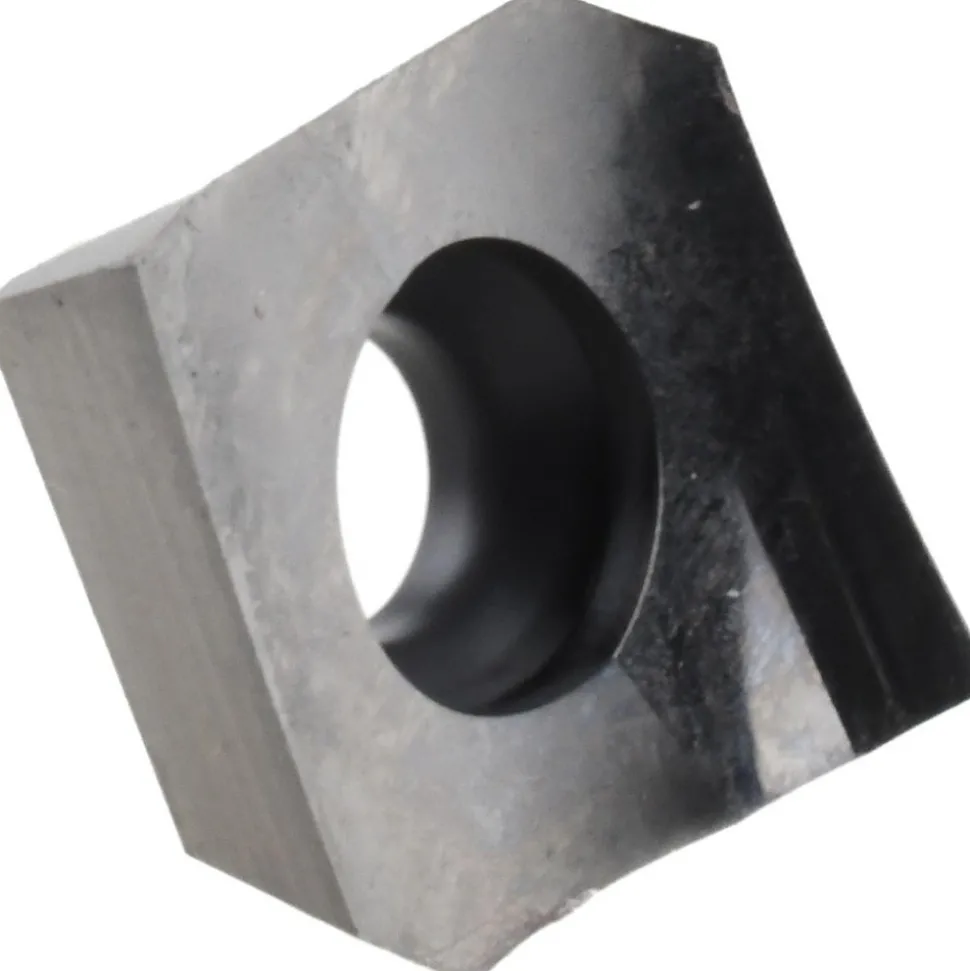

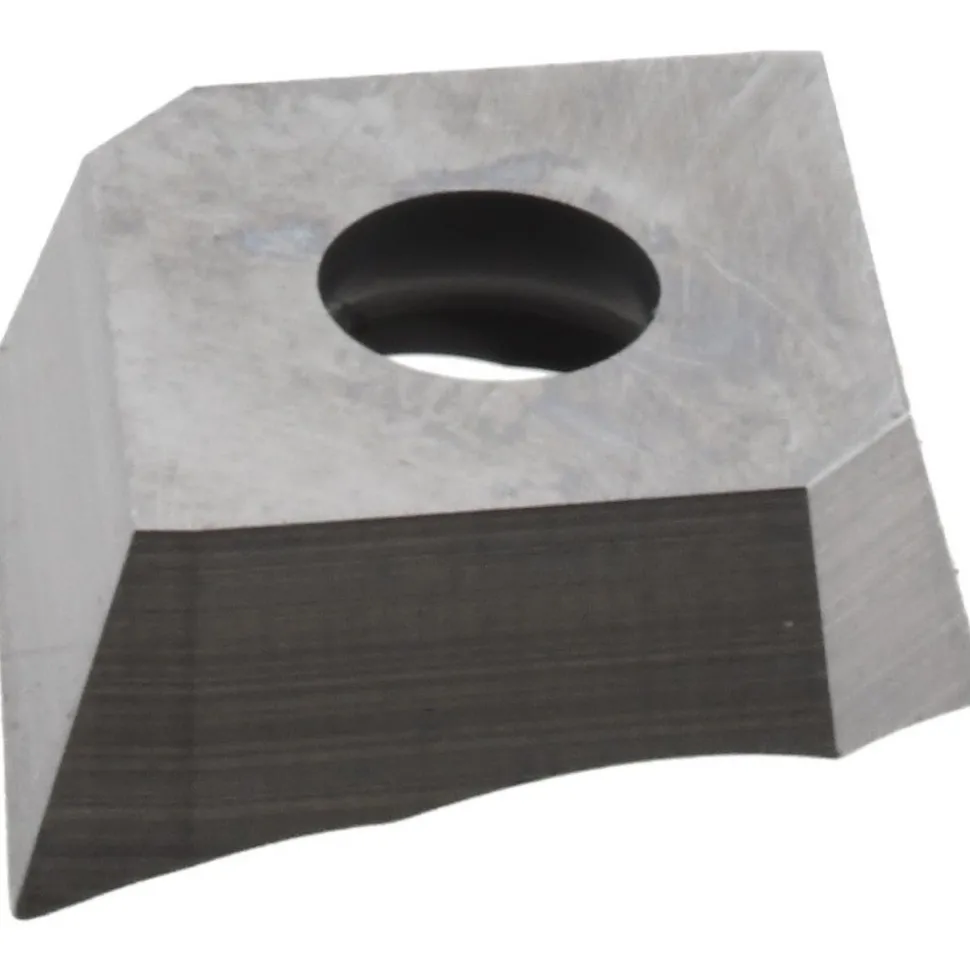

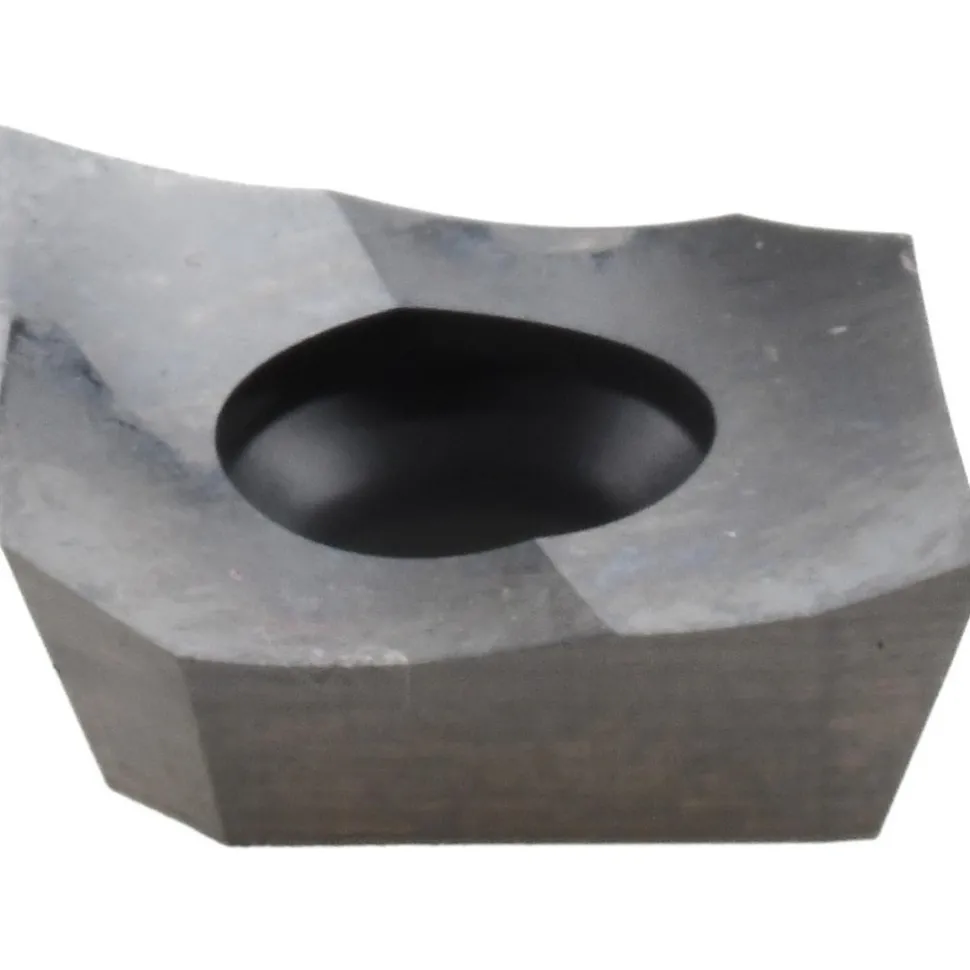

Milling Inserts: Insert Style: ADEH; Insert Size: 4; Insert Material: Solid Carbide; Insert Shape: Parallelogram

Milling Inserts: Insert Style: ADEH; Insert Size: 4; Insert Material: Solid Carbide; Insert Shape: Parallelogram

Original price was: 21,00 $.Current price is: 14,99 $.

SKU: SKU5HfVKtaa0n Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: A.B. Tools Brand: A.B. Tools

Description
Reviews (0)

Specifications

Insert Style: ADEH	Insert Size: 4
Insert Material: Solid Carbide	Insert Shape: Parallelogram
Corner Radius (Decimal Inch): 0.0100	Number Of Cutting Edges: 2
Thickness (Decimal Inch – 4 Decimals): 0.1875	Relief Angle: 15.000
Insert Size Code: 431	Width (Inch): 1/2
Length (Inch): 1/2	Thickness (Inch): 3/16
Inscribed Circle (Decimal Inch): 0.5000	Inscribed Circle (Inch): 1/2
Thickness Range (Decimal Inch): 0.1850 to 0.2000	Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100
Length Range (Decimal Inch): 0.5000 to 0.6000	Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.3750	Series: ADEH
Hole Diameter (mm): 0.00	Rake: Positive
Primary Workpiece Material: Non-Ferrous Metal	Primary Workpiece Material Code: N
Ansi Code: ADEH431	Standards: ANSI
Cutting Edge Style: Sharp	Manufacturers Catalog Number: ADEH431
Cutter Series Compatibility: Shear-Hogs	Chip Breaker: Common
UNSPSC Code: 23291601	Material Application: Aluminum
Insert Holding Method: Screw	Single or Double Sided Insert: Single
Included Angle Degree: 85	Width (Decimal Inch – 4 Decimals): 0.5000
Multi-Use Tool: Yes	Length (Decimal Inch – 4 Decimals): 0.5000
Country of Origin: UNITED STATES
Insert Style: ADEH
Insert Size: 4
Insert Material: Solid Carbide
Insert Shape: Parallelogram
Corner Radius (Decimal Inch): 0.0100
Number Of Cutting Edges: 2
Thickness (Decimal Inch – 4 Decimals): 0.1875
Relief Angle: 15.000
Insert Size Code: 431
Width (Inch): 1/2
Length (Inch): 1/2
Thickness (Inch): 3/16
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Thickness Range (Decimal Inch): 0.1850 to 0.2000
Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100
Length Range (Decimal Inch): 0.5000 to 0.6000
Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.3750
Series: ADEH
Hole Diameter (mm): 0.00
Rake: Positive
Primary Workpiece Material: Non-Ferrous Metal
Primary Workpiece Material Code: N
Ansi Code: ADEH431
Standards: ANSI
Cutting Edge Style: Sharp
Manufacturers Catalog Number: ADEH431
Cutter Series Compatibility: Shear-Hogs
Chip Breaker: Common
UNSPSC Code: 23291601
Material Application: Aluminum
Insert Holding Method: Screw
Single or Double Sided Insert: Single
Included Angle Degree: 85
Width (Decimal Inch – 4 Decimals): 0.5000
Multi-Use Tool: Yes
Length (Decimal Inch – 4 Decimals): 0.5000
Country of Origin: UNITED STATES
