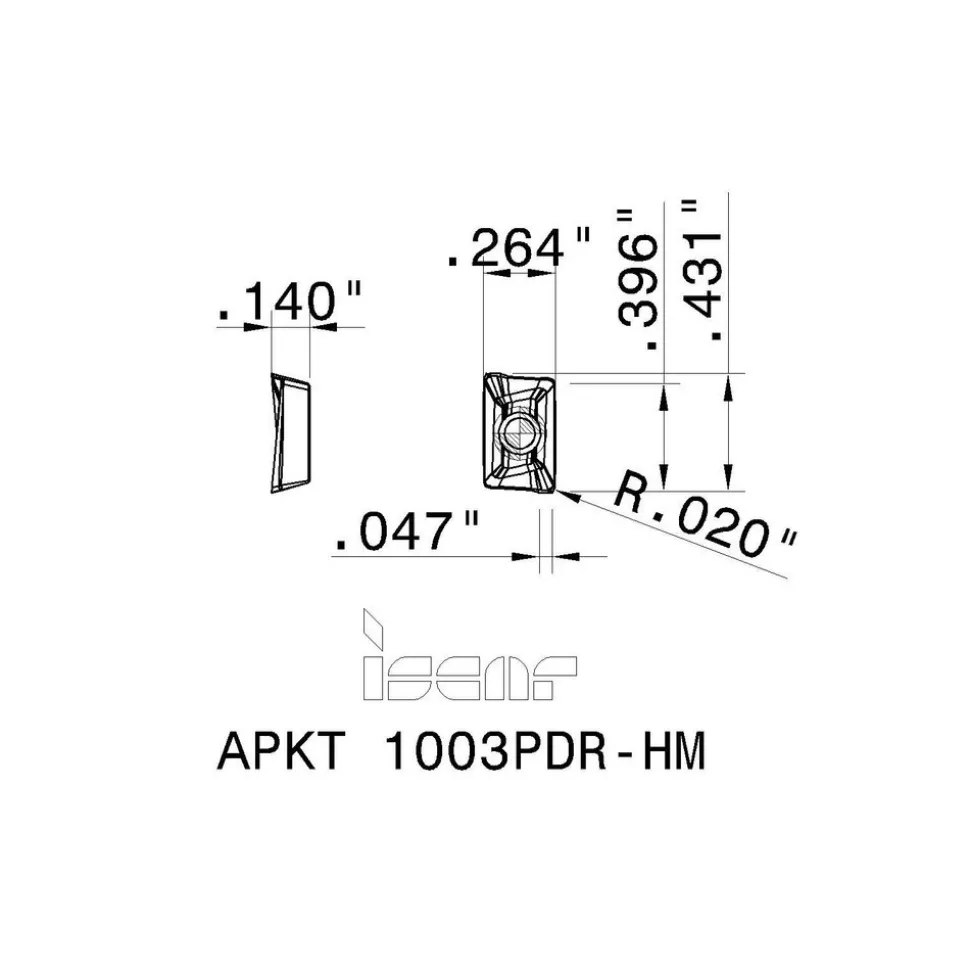

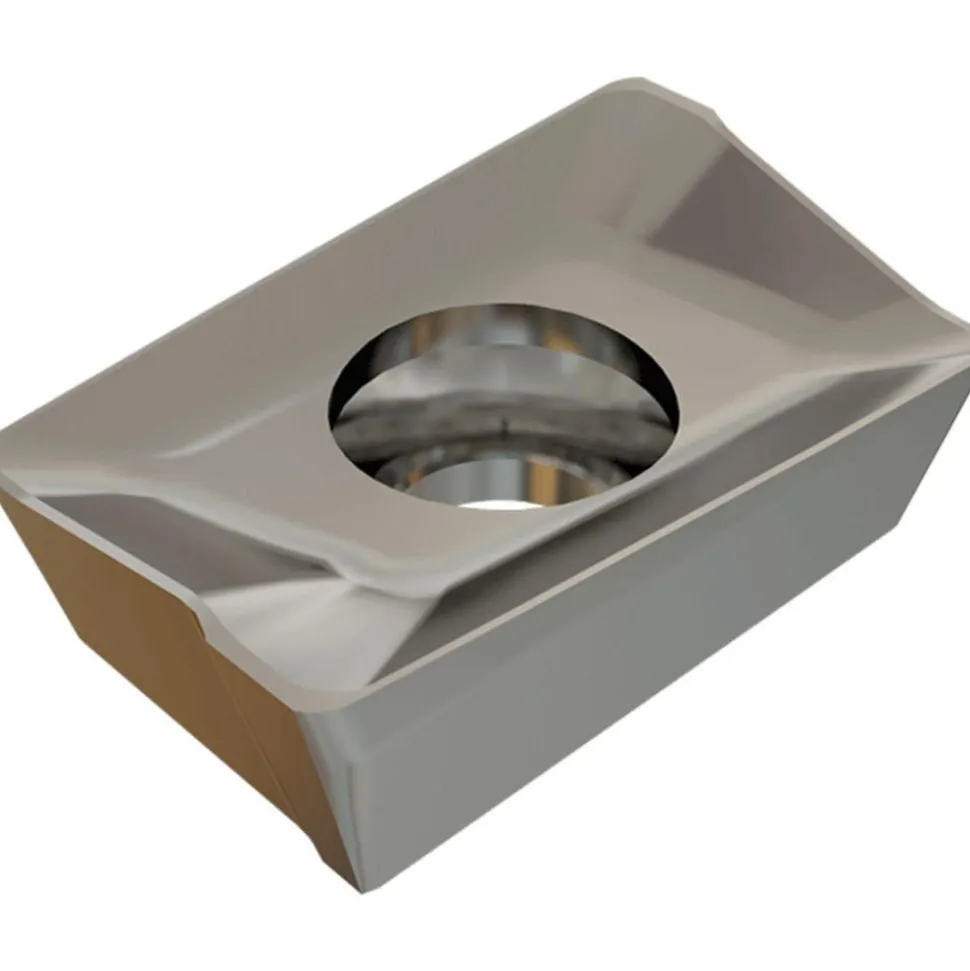

Milling Inserts: Insert Style: APKT; Insert Size: 10; Insert Material: Solid Carbide; Insert Shape: Parallelogram
19,89 $
Specifications
| Insert Style: APKT | Insert Size: 10 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: IC328 | Corner Radius (Decimal Inch): 0.0197 |
| Corner Radius (mm): 0.50 | Number Of Cutting Edges: 2 |
| Thickness (Decimal Inch – 4 Decimals): 0.1400 | Coating/Finish: TiCN |
| Relief Angle: 11.000 | Insert Size Code: 1003 |
| Material Grade: C3; C5; C6; C2 | Inscribed Circle (Decimal Inch): 0.2640 |
| Thickness Range (Decimal Inch): 0.1250 to 0.1500 | Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000 |
| Length Range (Decimal Inch): 0.4000 to 0.4500 | Insert Hand: Right Hand |
| Maximum Depth of Cut (mm): 8.00 | Maximum Depth of Cut (Decimal Inch): 0.3860 |
| Series: HELIMILL | Coating Process: PVD |
| Cutting Edge Effective Length (Decimal Inch): 0.3960 | Rake: Positive |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; M |
| Ansi Code: APKT 1003PDR-HM IC328 | Iso Code: APKT 1003PDR-HM |
| Standards: ISO 13399; ANSI | Cutting Edge Style: Honed; Chamfered |
| Manufacturers Catalog Number: APKT 1003PDR-HM IC328 | Cutter Series Compatibility: HM90-10 |
| Chip Breaker: HM | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | Insert Holding Method: Screw |
| Coating Classification: PVD | Single or Double Sided Insert: Single |
| Included Angle Degree: 85 | Width (Decimal Inch – 4 Decimals): 0.2640 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.4310 |
| Country of Origin: Israel | |
| Insert Style: APKT | |
| Insert Size: 10 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: IC328 | |
| Corner Radius (Decimal Inch): 0.0197 | |
| Corner Radius (mm): 0.50 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1400 | |
| Coating/Finish: TiCN | |
| Relief Angle: 11.000 | |
| Insert Size Code: 1003 | |
| Material Grade: C3; C5; C6; C2 | |
| Inscribed Circle (Decimal Inch): 0.2640 | |
| Thickness Range (Decimal Inch): 0.1250 to 0.1500 | |
| Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000 | |
| Length Range (Decimal Inch): 0.4000 to 0.4500 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (mm): 8.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.3860 | |
| Series: HELIMILL | |
| Coating Process: PVD | |
| Cutting Edge Effective Length (Decimal Inch): 0.3960 | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Ansi Code: APKT 1003PDR-HM IC328 | |
| Iso Code: APKT 1003PDR-HM | |
| Standards: ISO 13399; ANSI | |
| Cutting Edge Style: Honed; Chamfered | |
| Manufacturers Catalog Number: APKT 1003PDR-HM IC328 | |
| Cutter Series Compatibility: HM90-10 | |
| Chip Breaker: HM | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 85 | |
| Width (Decimal Inch – 4 Decimals): 0.2640 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.4310 | |
| Country of Origin: Israel |
| MSC# | 52692951 |
| Mfr# | 5601148 |
| Big Book# | 682 |
