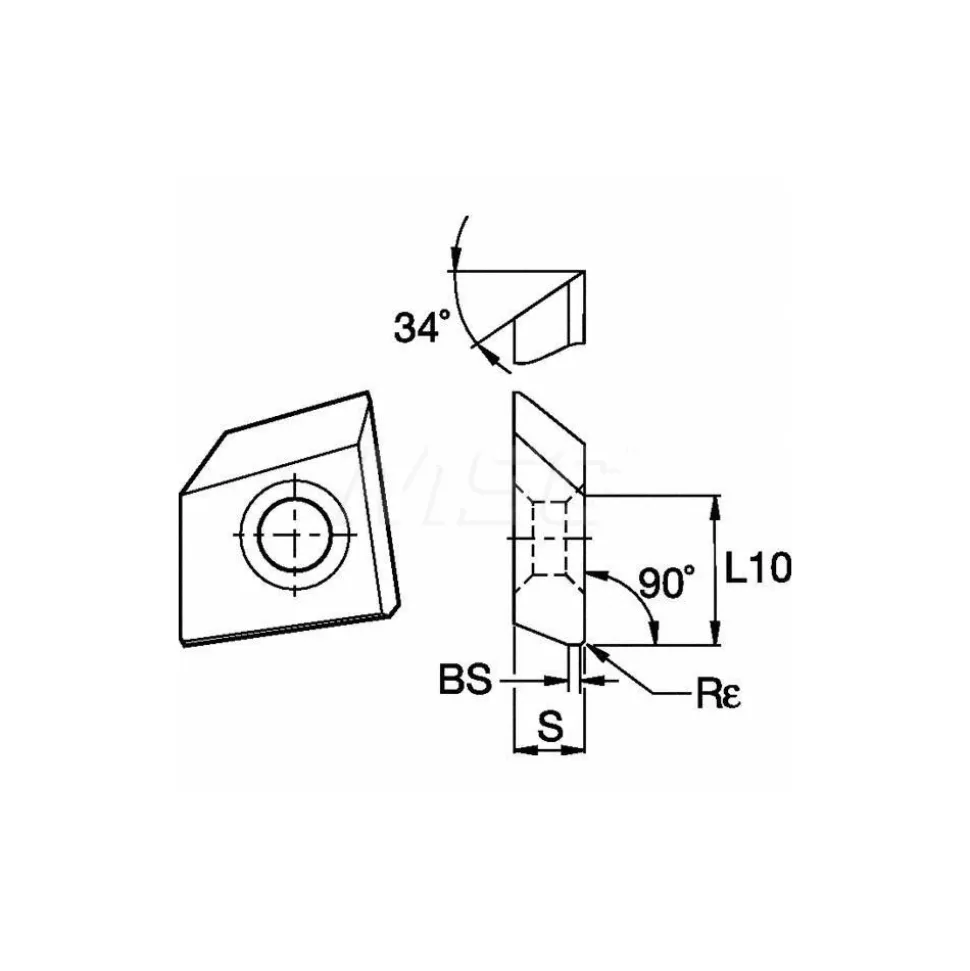

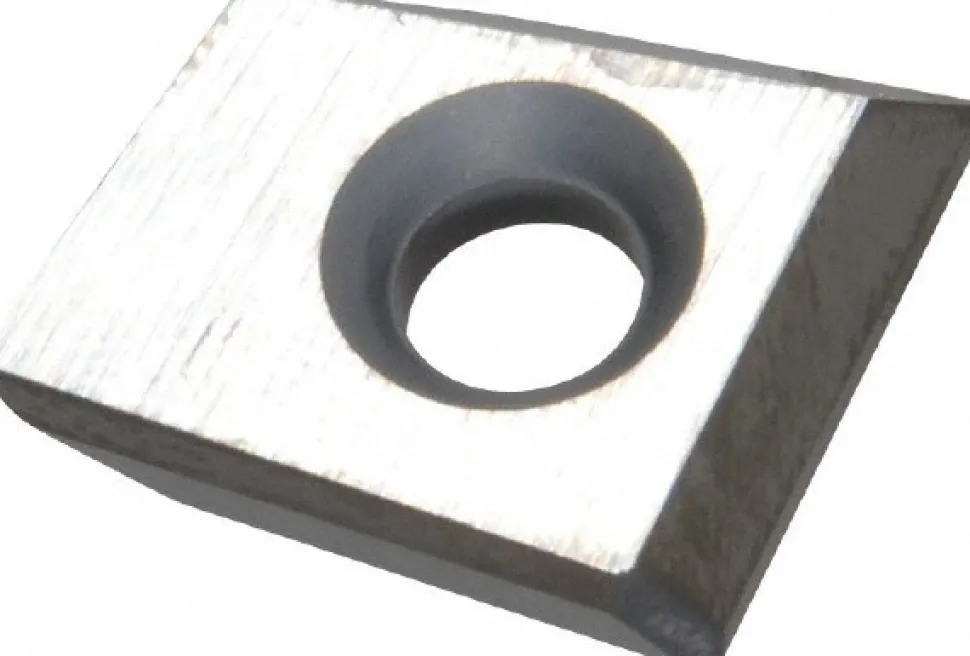

Milling Inserts: Insert Style: BGHX; Insert Size: 15; Insert Material: Solid Carbide; Insert Shape: Irregular
29,99 $
Specifications
| Insert Style: BGHX | Insert Size: 15 |
| Insert Material: Solid Carbide | Insert Shape: Irregular |
| Manufacturer Grade: K110M | Number Of Cutting Edges: 2 |
| Thickness (Decimal Inch – 4 Decimals): 0.1970 | Coating/Finish: Bright/Uncoated |
| Relief Angle: 30.000 | Insert Size Code: 15L5 |
| Material Grade: C3; C2 | Inscribed Circle (Decimal Inch): 0.1969 |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | Inscribed Circle Range (Decimal Inch): 0.0000 to 0.2500 |
| Length Range (Decimal Inch): 0.4000 to 0.4500 | Insert Hand: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.4134 | Series: BGHX |
| Coating Process: Uncoated | Hole Diameter (mm): 0.20 |
| Hole Diameter (Decimal Inch): 0.1969 | Rake: Positive |
| Primary Workpiece Material: Non-Ferrous Metal; Cast Iron | Primary Workpiece Material Code: K; N |
| Ansi Code: BGHX15L5PCFRGG | Iso Code: BGHX15L5PCFRGG |
| Standards: ISO; ANSI | Rake Angle: 30.000 |
| Cutting Edge Style: Sharp | Manufacturers Catalog Number: BGHX15L5PCFRGG |
| Cutter Series Compatibility: Fix-Perfect | Chip Breaker: GG |
| UNSPSC Code: 23291601 | Material Application: Non-Ferrous Metal; Cast Iron |
| Insert Holding Method: Screw | Coating Classification: Uncoated |
| Single or Double Sided Insert: Single | Included Angle Degree: 90 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.4134 |
| Country of Origin: Germany | |
| Insert Style: BGHX | |
| Insert Size: 15 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Irregular | |
| Manufacturer Grade: K110M | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1970 | |
| Coating/Finish: Bright/Uncoated | |
| Relief Angle: 30.000 | |
| Insert Size Code: 15L5 | |
| Material Grade: C3; C2 | |
| Inscribed Circle (Decimal Inch): 0.1969 | |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | |
| Inscribed Circle Range (Decimal Inch): 0.0000 to 0.2500 | |
| Length Range (Decimal Inch): 0.4000 to 0.4500 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.4134 | |
| Series: BGHX | |
| Coating Process: Uncoated | |
| Hole Diameter (mm): 0.20 | |
| Hole Diameter (Decimal Inch): 0.1969 | |
| Rake: Positive | |
| Primary Workpiece Material: Non-Ferrous Metal; Cast Iron | |
| Primary Workpiece Material Code: K; N | |
| Ansi Code: BGHX15L5PCFRGG | |
| Iso Code: BGHX15L5PCFRGG | |
| Standards: ISO; ANSI | |
| Rake Angle: 30.000 | |
| Cutting Edge Style: Sharp | |
| Manufacturers Catalog Number: BGHX15L5PCFRGG | |
| Cutter Series Compatibility: Fix-Perfect | |
| Chip Breaker: GG | |
| UNSPSC Code: 23291601 | |
| Material Application: Non-Ferrous Metal; Cast Iron | |
| Insert Holding Method: Screw | |
| Coating Classification: Uncoated | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.4134 | |
| Country of Origin: Germany |
| MSC# | 78999448 |
| Mfr# | 1794630 |
| Big Book# | 704 |
