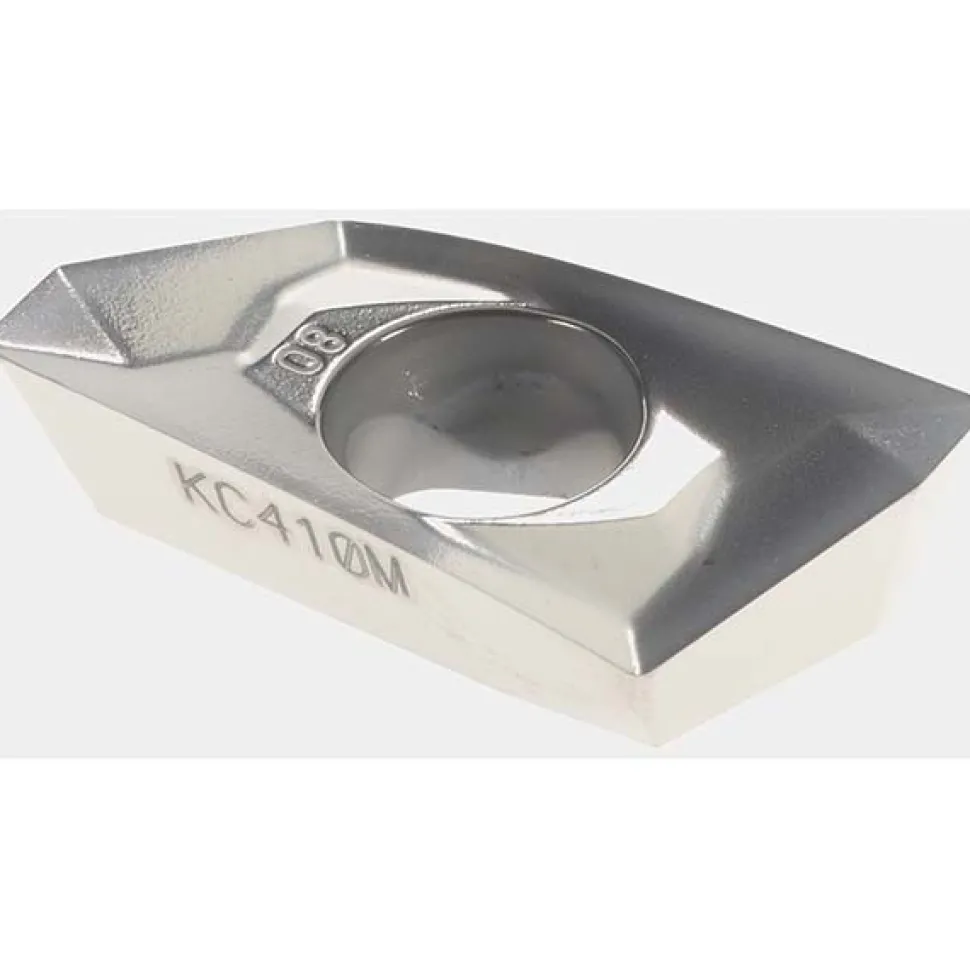

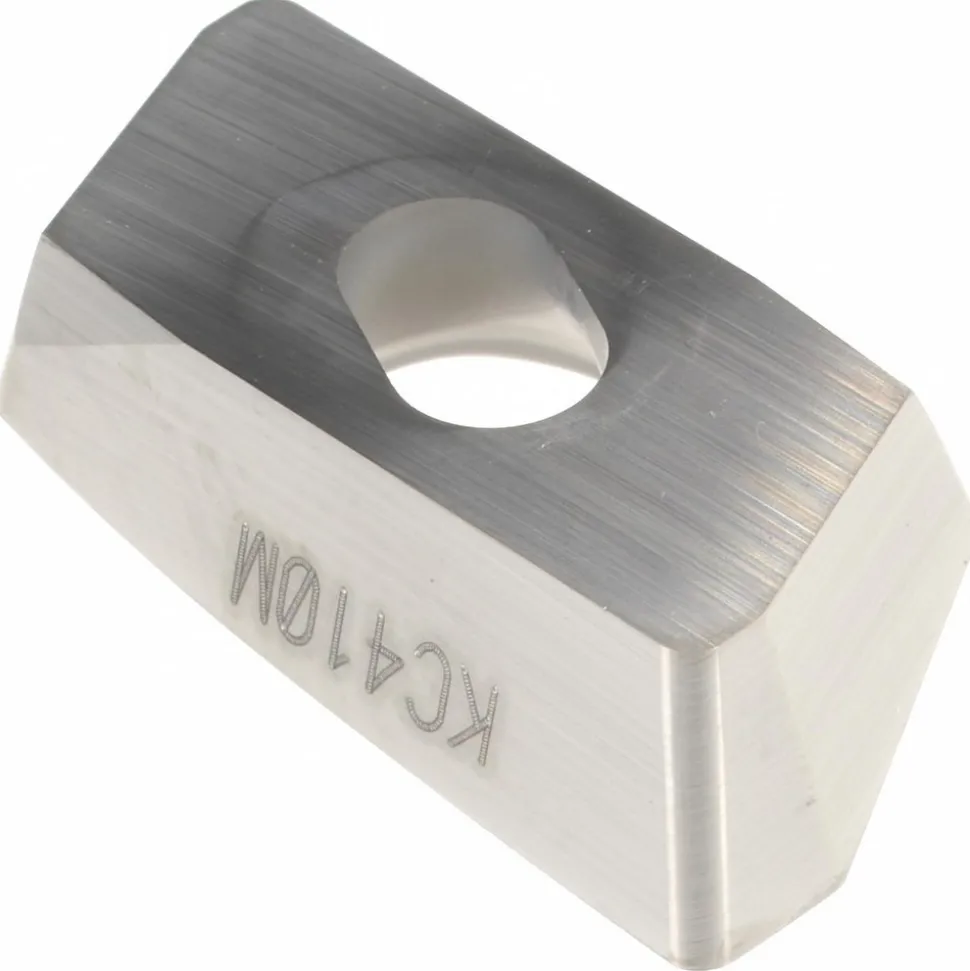

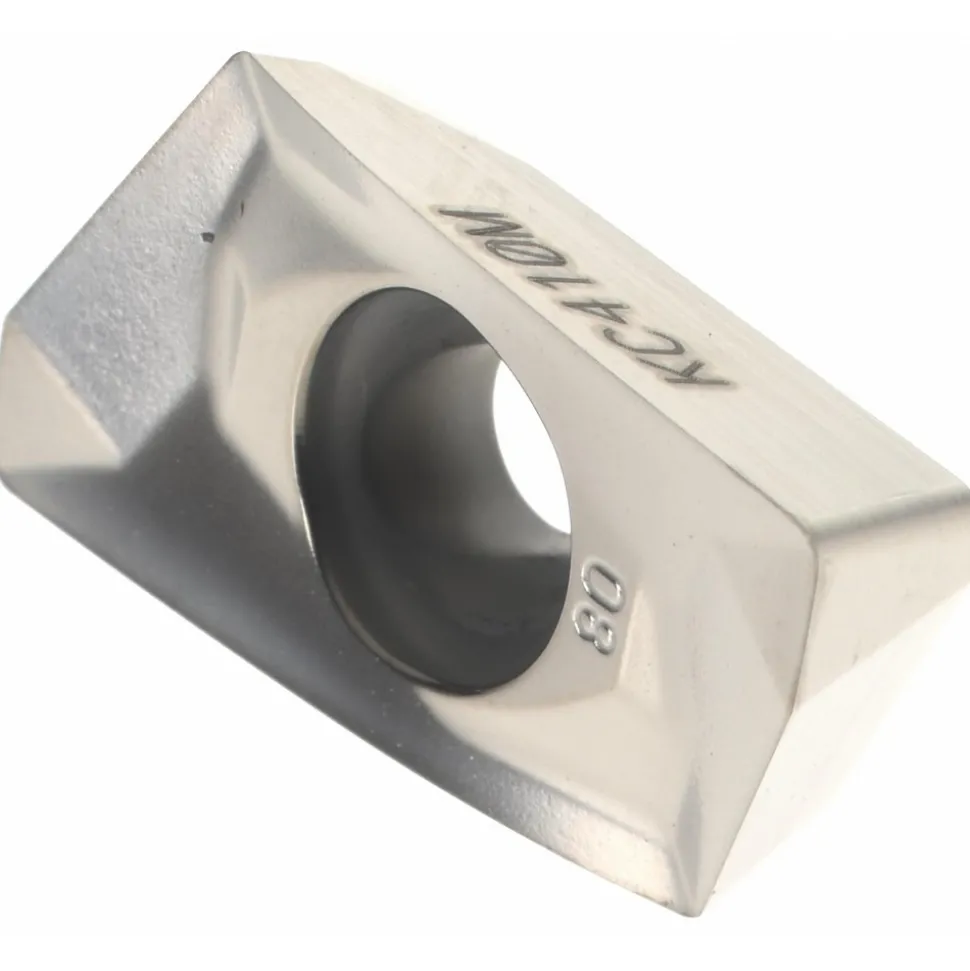

Milling Inserts: Insert Style: EDCT; Insert Size: 18; Insert Material: Solid Carbide; Insert Shape: Parallelogram
Original price was: 36,00 $.27,99 $Current price is: 27,99 $.
Specifications
| Insert Style: EDCT | Insert Size: 18 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: KC410M | Corner Radius (Decimal Inch): 0.0310 |
| Corner Radius (mm): 0.80 | Number Of Cutting Edges: 2 |
| Thickness (Decimal Inch – 4 Decimals): 0.2170 | Coating/Finish: Titanium Diboride |
| Relief Angle: 15.000 | Insert Size Code: 1808 |
| Inscribed Circle (Decimal Inch): 0.4319 | Thickness Range (Decimal Inch): 0.2000 to 0.2200 |
| Corner Radius (Inch): 1/32 | Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000 |
| Length Range (Decimal Inch): 0.7000 to 0.9000 | Insert Hand: Right Hand |
| Series: EDCT | Coating Process: PVD |
| Rake: Positive | Primary Workpiece Material: Non-Ferrous Metal |
| Primary Workpiece Material Code: N | Ansi Code: EC1808FJ |
| Iso Code: EDCT180508PDFRLDJ | Standards: ISO; ANSI |
| Cutting Edge Style: Sharp | Manufacturers Catalog Number: EDCT180508PDFRLDJ |
| Cutter Series Compatibility: Mill 1-18 | Chip Breaker: LD |
| UNSPSC Code: 23291601 | Material Application: Non-Ferrous Metal |
| Insert Holding Method: Screw | Coating Classification: PVD |
| Single or Double Sided Insert: Single | Included Angle Degree: 70 |
| Width (Decimal Inch – 4 Decimals): 0.4320 | Multi-Use Tool: Yes |
| Length (Decimal Inch – 4 Decimals): 0.8567 | Country of Origin: UNITED STATES |
| Insert Style: EDCT | |
| Insert Size: 18 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: KC410M | |
| Corner Radius (Decimal Inch): 0.0310 | |
| Corner Radius (mm): 0.80 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.2170 | |
| Coating/Finish: Titanium Diboride | |
| Relief Angle: 15.000 | |
| Insert Size Code: 1808 | |
| Inscribed Circle (Decimal Inch): 0.4319 | |
| Thickness Range (Decimal Inch): 0.2000 to 0.2200 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000 | |
| Length Range (Decimal Inch): 0.7000 to 0.9000 | |
| Insert Hand: Right Hand | |
| Series: EDCT | |
| Coating Process: PVD | |
| Rake: Positive | |
| Primary Workpiece Material: Non-Ferrous Metal | |
| Primary Workpiece Material Code: N | |
| Ansi Code: EC1808FJ | |
| Iso Code: EDCT180508PDFRLDJ | |
| Standards: ISO; ANSI | |
| Cutting Edge Style: Sharp | |
| Manufacturers Catalog Number: EDCT180508PDFRLDJ | |
| Cutter Series Compatibility: Mill 1-18 | |
| Chip Breaker: LD | |
| UNSPSC Code: 23291601 | |
| Material Application: Non-Ferrous Metal | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 70 | |
| Width (Decimal Inch – 4 Decimals): 0.4320 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.8567 | |
| Country of Origin: UNITED STATES |
| MSC# | 01654631 |
| Mfr# | 2271089 |
| Big Book# | 704 |
