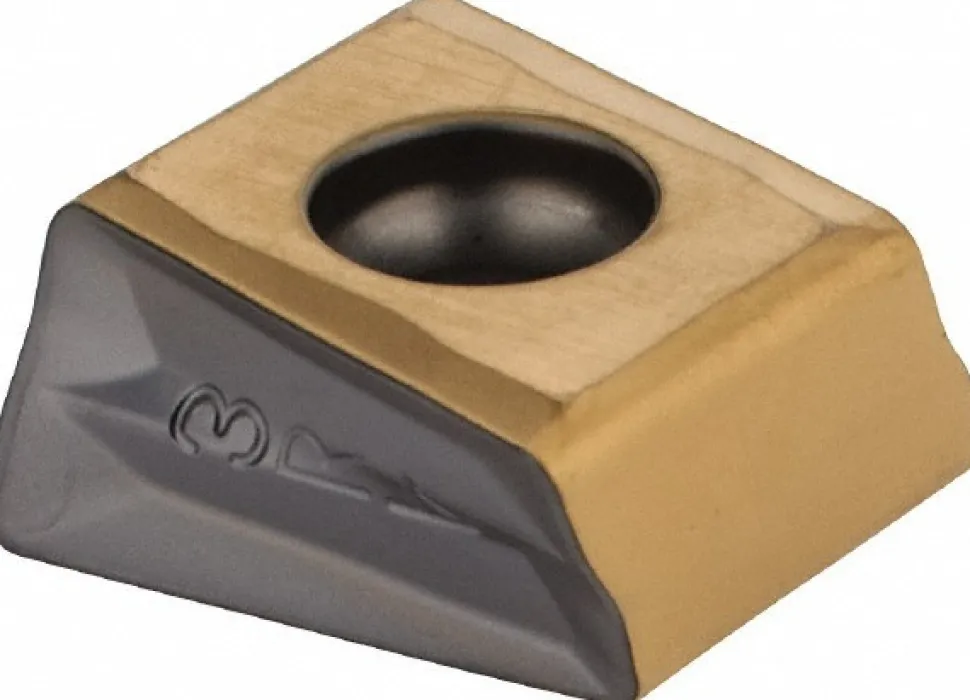

Milling Inserts: Insert Style: LNMT; Insert Size: 13; Insert Material: Solid Carbide; Insert Shape: Butterfly
25,99 $

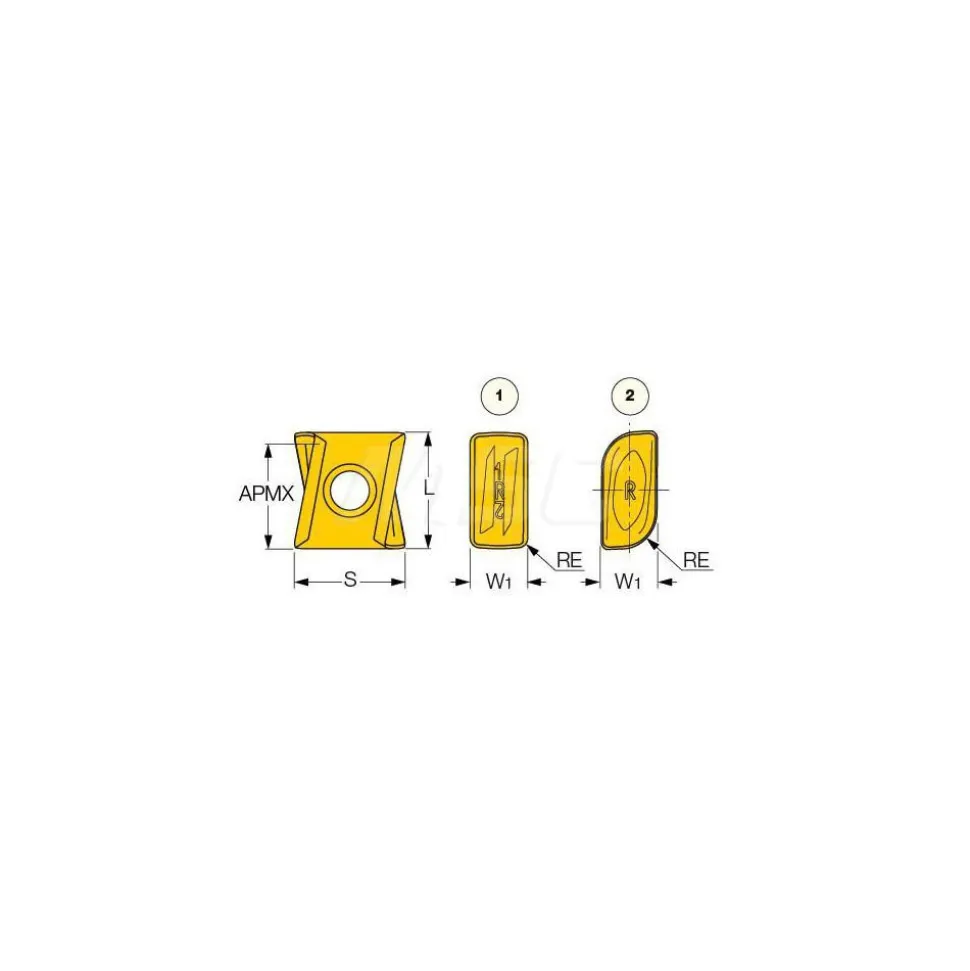

Specifications
| Insert Style: LNMT | Insert Size: 13 |
| Insert Material: Solid Carbide | Insert Shape: Butterfly |
| Manufacturer Grade: IC808 | Corner Radius (Decimal Inch): 0.0315 |
| Corner Radius (mm): 0.80 | Number Of Cutting Edges: 4 |
| Thickness (Decimal Inch – 4 Decimals): 0.5140 | Coating/Finish: AlTiN; TiN; TiAlN |
| Relief Angle: 0.000 | Insert Size Code: 1306 |
| Material Grade: Submicron | Inscribed Circle (Decimal Inch): 0.2620 |
| Thickness Range (Decimal Inch): 0.5000+ | Corner Radius (Inch): 1/32 |
| Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000 | Length Range (Decimal Inch): 0.5000 to 0.6000 |
| Insert Hand: Right Hand | Maximum Depth of Cut (mm): 12.50 |
| Maximum Depth of Cut (Decimal Inch): 0.4920 | Series: HELITANG |
| Coating Process: PVD | Cutting Edge Effective Length (Decimal Inch): 0.5409 |
| Rake: Negative | Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; H; K; M | Secondary Workpiece Material Code: S; H |

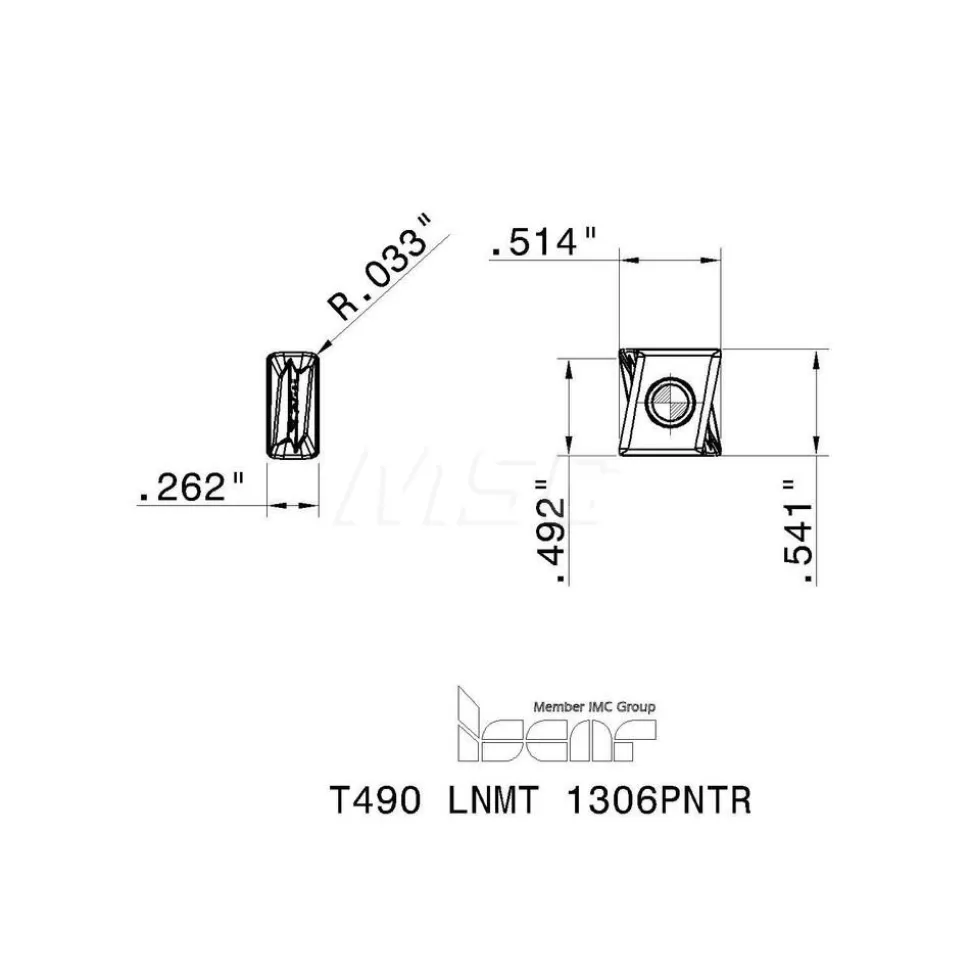

| Ansi Code: T490 LNMT 1306PNTR IC808 | Iso Code: T490 LNMT 1306PNTR |
| Standards: ISO 13399; ANSI | Cutting Edge Style: Helical |
| Manufacturers Catalog Number: T490 LNMT 1306PNTR IC808 | Cutter Series Compatibility: T490 LNK13 |
| Chip Breaker: PNTR | UNSPSC Code: 23291601 |
| Material Application: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | Insert Holding Method: Screw |
| Coating Classification: Sumotec PVD | Single or Double Sided Insert: Double |
| Included Angle Degree: 90 | Width (Decimal Inch – 4 Decimals): 0.2620 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.5409 |
| Country of Origin: Israel | |
| Insert Style: LNMT | |
| Insert Size: 13 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Butterfly | |
| Manufacturer Grade: IC808 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Corner Radius (mm): 0.80 | |
| Number Of Cutting Edges: 4 | |
| Thickness (Decimal Inch – 4 Decimals): 0.5140 | |
| Coating/Finish: AlTiN; TiN; TiAlN | |
| Relief Angle: 0.000 | |
| Insert Size Code: 1306 | |
| Material Grade: Submicron | |
| Inscribed Circle (Decimal Inch): 0.2620 | |
| Thickness Range (Decimal Inch): 0.5000+ | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000 | |
| Length Range (Decimal Inch): 0.5000 to 0.6000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (mm): 12.50 | |
| Maximum Depth of Cut (Decimal Inch): 0.4920 | |
| Series: HELITANG | |
| Coating Process: PVD | |
| Cutting Edge Effective Length (Decimal Inch): 0.5409 | |
| Rake: Negative | |
| Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; H; K; M | |
| Secondary Workpiece Material Code: S; H | |
| Ansi Code: T490 LNMT 1306PNTR IC808 | |
| Iso Code: T490 LNMT 1306PNTR | |
| Standards: ISO 13399; ANSI | |
| Cutting Edge Style: Helical | |
| Manufacturers Catalog Number: T490 LNMT 1306PNTR IC808 | |
| Cutter Series Compatibility: T490 LNK13 | |
| Chip Breaker: PNTR | |
| UNSPSC Code: 23291601 | |
| Material Application: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: Sumotec PVD | |
| Single or Double Sided Insert: Double | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.2620 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.5409 | |
| Country of Origin: Israel |
| MSC# | 82753377 |
| Mfr# | 5606324 |
| Big Book# | 685 |
