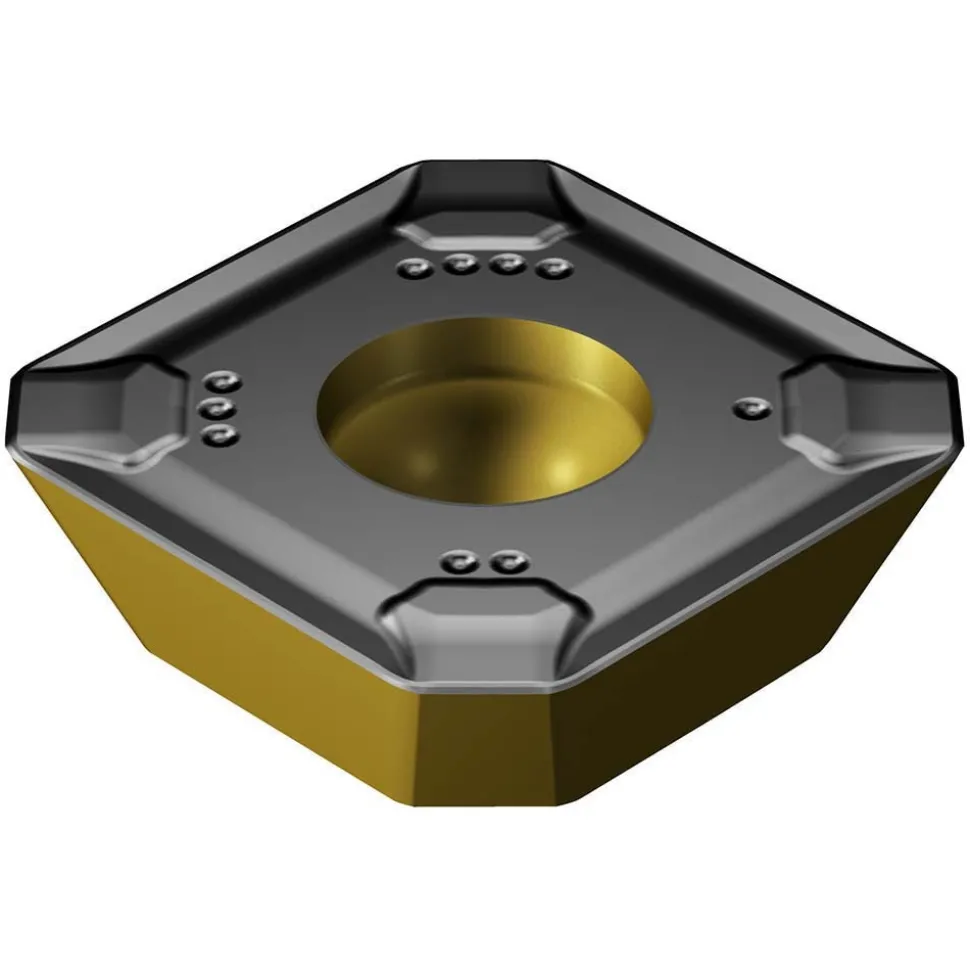

Milling Inserts: Insert Style: R245; Insert Size: 12; Insert Material: Solid Carbide; Insert Shape: Square
Original price was: 27,00 $.19,99 $Current price is: 19,99 $.
Specifications
| Insert Style: R245 | Insert Size: 12 |
| Insert Material: Solid Carbide | Insert Shape: Square |
| Manufacturer Grade: 4340 | Corner Radius (Decimal Inch): 0.0591 |
| Corner Radius (mm): 1.50 | Number Of Cutting Edges: 4 |
| Thickness (Decimal Inch – 4 Decimals): 0.1563 | Thickness (mm): 3.97 |
| Coating/Finish: TiCN; TiN; Al2O3 | Insert Size Code: 12T3 |
| Material Grade: K40; M40; P40 | Thickness (Inch): 5/32 |
| Inscribed Circle (Decimal Inch): 0.5276 | Inscribed Circle (mm): 13.40 |
| Thickness Range (Decimal Inch): 0.1500 to 0.1750 | Inscribed Circle Range (Decimal Inch): 0.5100 to 0.6000 |
| Length Range (Decimal Inch): 0.5000 to 0.6000 | Insert Hand: Right Hand |
| Maximum Depth of Cut (mm): 6.50 | Maximum Depth of Cut (Decimal Inch): 0.2559 |
| Series: R245 | Coating Process: CVD |
| Hole Diameter (Decimal Inch): 0.1614 | Rake: Positive |
| Primary Workpiece Material: Stainless Steel; Cast Iron; Steel | Primary Workpiece Material Code: P; K; M |
| Ansi Code: R245-12 T3 M-PM 4340 | Iso Code: R245-12 T3 M-PM 4340 |
| Standards: ISO; ANSI | Rake Angle: 15.000 |
| Cutting Edge Style: Corner Rounded | Manufacturers Catalog Number: R245-12 T3 M-PM 4340 |
| Cutter Series Compatibility: R245 | Chip Breaker: PM |
| UNSPSC Code: 23291601 | Material Application: Stainless Steel; Cast Iron; Steel |
| Insert Holding Method: Screw | Coating Classification: CVD |
| Single or Double Sided Insert: Single | Included Angle Degree: 90 |
| Width (Decimal Inch – 4 Decimals): 0.5276 | Multi-Use Tool: Yes |
| Length (Decimal Inch – 4 Decimals): 0.5276 | Country of Origin: VARIOUS |
| Insert Style: R245 | |
| Insert Size: 12 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Square | |
| Manufacturer Grade: 4340 | |
| Corner Radius (Decimal Inch): 0.0591 | |
| Corner Radius (mm): 1.50 | |
| Number Of Cutting Edges: 4 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1563 | |
| Thickness (mm): 3.97 | |
| Coating/Finish: TiCN; TiN; Al2O3 | |
| Insert Size Code: 12T3 | |
| Material Grade: K40; M40; P40 | |
| Thickness (Inch): 5/32 | |
| Inscribed Circle (Decimal Inch): 0.5276 | |
| Inscribed Circle (mm): 13.40 | |
| Thickness Range (Decimal Inch): 0.1500 to 0.1750 | |
| Inscribed Circle Range (Decimal Inch): 0.5100 to 0.6000 | |
| Length Range (Decimal Inch): 0.5000 to 0.6000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (mm): 6.50 | |
| Maximum Depth of Cut (Decimal Inch): 0.2559 | |
| Series: R245 | |
| Coating Process: CVD | |
| Hole Diameter (Decimal Inch): 0.1614 | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Cast Iron; Steel | |
| Primary Workpiece Material Code: P; K; M | |
| Ansi Code: R245-12 T3 M-PM 4340 | |
| Iso Code: R245-12 T3 M-PM 4340 | |
| Standards: ISO; ANSI | |
| Rake Angle: 15.000 | |
| Cutting Edge Style: Corner Rounded | |
| Manufacturers Catalog Number: R245-12 T3 M-PM 4340 | |
| Cutter Series Compatibility: R245 | |
| Chip Breaker: PM | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Cast Iron; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: CVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.5276 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.5276 | |
| Country of Origin: VARIOUS |
| MSC# | 11258340 |
| Mfr# | 7564442 |
