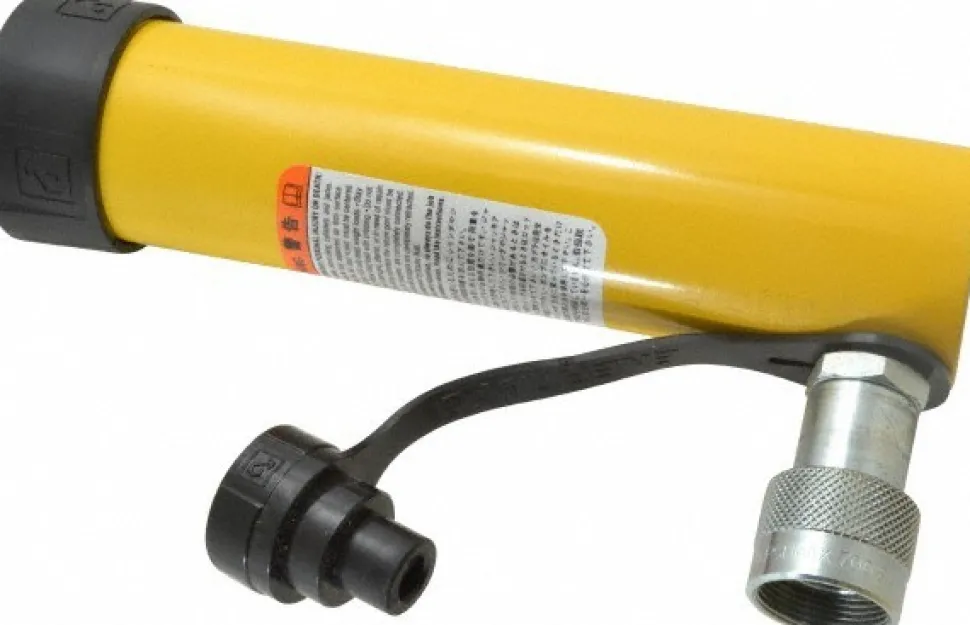

Portable Hydraulic Cylinder: 11 Ton, 6.13" Stroke, Single Acting, 13.70 cu in

Portable Hydraulic Cylinder: 11 Ton, 6.13″ Stroke, Single Acting, 13.70 cu in

Original price was: 904,00 $.Current price is: 122,89 $.

SKU: SKUPn5AhBljvv Categories: Hydraulics, Motion Control & Fluid Power, Shop All Products Tag: Enerpac Brand: Enerpac

Description
Reviews (0)

Specifications

Actuation: Single Acting	Load Capacity: 11 TON
Stroke Length: 6.13 in	Piston Stroke (Decimal Inch): 6.1300
Oil Capacity: 13.70 cu in	Cylinder Bore Diameter (Decimal Inch): 1.69
Cylinder Effective Area: 10.9	Lowered Height: 9.75
Retracted Length: 10 in	Extended Length: 15.88 in
Cushion Type: No Cushion	Bore Diameter: 1.6900 in
Outside Diameter: 2.25 in	Rod Diameter: 1.5000 in
Plunger Type: Solid	Body Material: Steel
Plunger Internal Thread Size: 1-8	Series: RC
Collar Thread: 2-1/4 – 14	Plunger Internal Thread Length: 0.75
Maximum Height (Inch): 15.8800	UNSPSC Code: 27121602
Country of Origin: China
Actuation: Single Acting
Load Capacity: 11 TON
Stroke Length: 6.13 in
Piston Stroke (Decimal Inch): 6.1300
Oil Capacity: 13.70 cu in
Cylinder Bore Diameter (Decimal Inch): 1.69
Cylinder Effective Area: 10.9
Lowered Height: 9.75
Retracted Length: 10 in
Extended Length: 15.88 in
Cushion Type: No Cushion
Bore Diameter: 1.6900 in
Outside Diameter: 2.25 in
Rod Diameter: 1.5000 in
Plunger Type: Solid
Body Material: Steel
Plunger Internal Thread Size: 1-8
Series: RC
Collar Thread: 2-1/4 – 14
Plunger Internal Thread Length: 0.75
Maximum Height (Inch): 15.8800
UNSPSC Code: 27121602
Country of Origin: China
