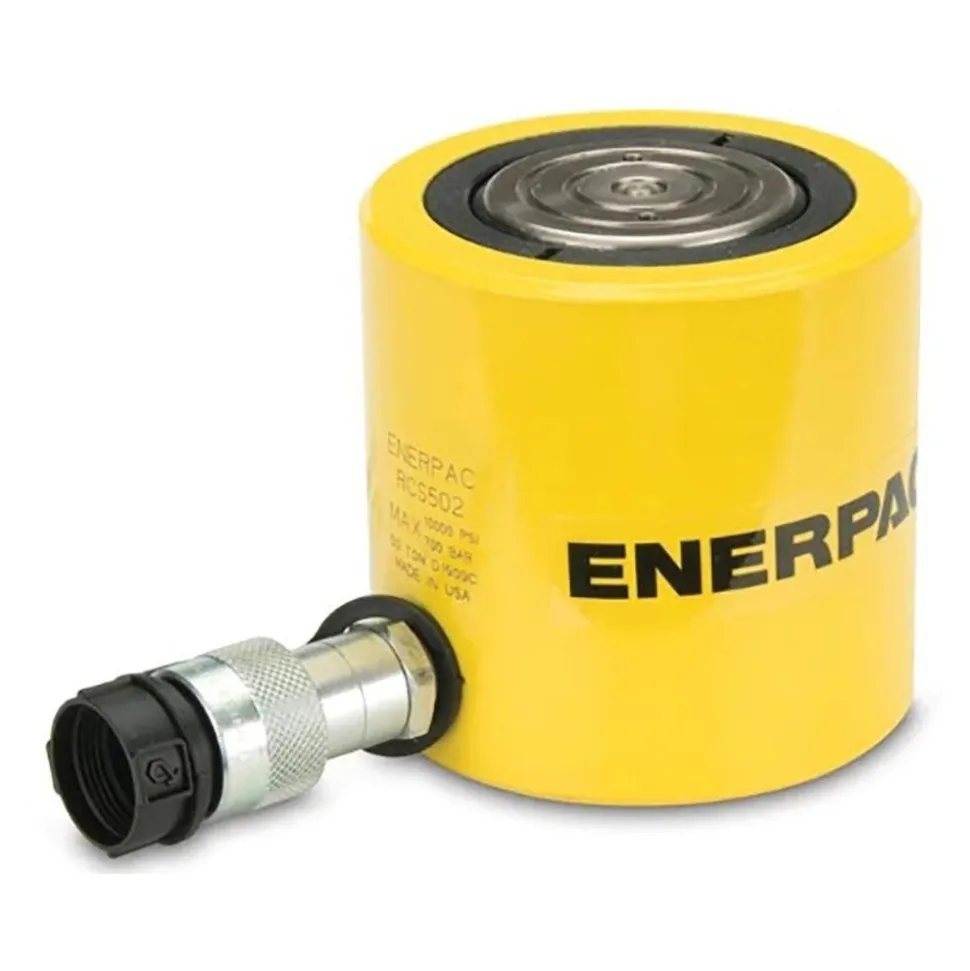

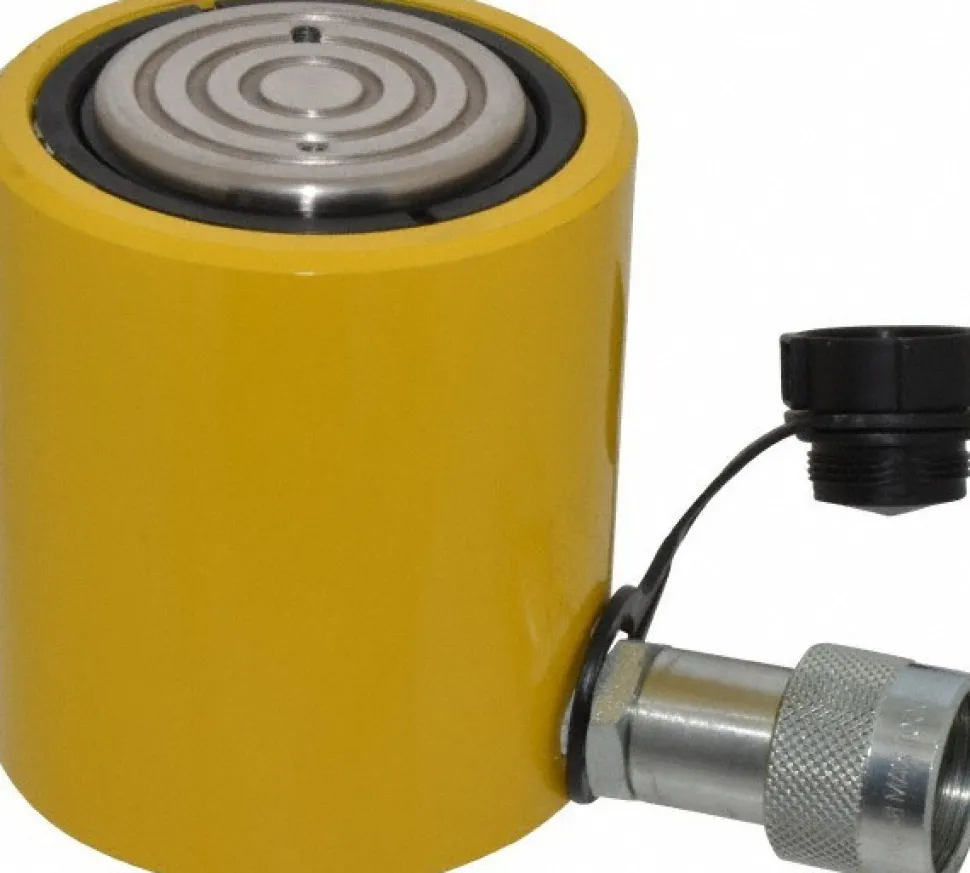

Portable Hydraulic Cylinder: 32 Ton, 2.44″ Stroke, Single Acting, 15.82 cu in
120,89 $
Specifications
| Actuation: Single Acting | Load Capacity: 32 TON |
| Stroke Length: 2.44 in | Piston Stroke (Decimal Inch): 2.4400 |
| Oil Capacity: 15.82 cu in | Cylinder Bore Diameter (Decimal Inch): 2.88 |
| Cylinder Effective Area: 18.58 | Lowered Height: 4.63 |
| Retracted Length: 5 in | Extended Length: 7.06 in |
| Cushion Type: No Cushion | Bore Diameter: 2.8800 in |
| Outside Diameter: 4 in | Rod Diameter: 2.6200 in |
| Plunger Type: Solid | Body Material: Steel |
| Plunger Internal Thread Size: M5 x 0.8 | Series: RCS |
| Plunger Internal Thread Length: 0.32 | Maximum Height (Inch): 7.0600 |
| UNSPSC Code: 27121602 | Country of Origin: China |
| Actuation: Single Acting | |
| Load Capacity: 32 TON | |
| Stroke Length: 2.44 in | |
| Piston Stroke (Decimal Inch): 2.4400 | |
| Oil Capacity: 15.82 cu in | |
| Cylinder Bore Diameter (Decimal Inch): 2.88 | |
| Cylinder Effective Area: 18.58 | |
| Lowered Height: 4.63 | |
| Retracted Length: 5 in | |
| Extended Length: 7.06 in | |
| Cushion Type: No Cushion | |
| Bore Diameter: 2.8800 in | |
| Outside Diameter: 4 in | |
| Rod Diameter: 2.6200 in | |
| Plunger Type: Solid | |
| Body Material: Steel | |
| Plunger Internal Thread Size: M5 x 0.8 | |
| Series: RCS | |
| Plunger Internal Thread Length: 0.32 | |
| Maximum Height (Inch): 7.0600 | |
| UNSPSC Code: 27121602 | |
| Country of Origin: China |
| MSC# | 80013543 |
| Mfr# | RCS302 |
| Big Book# | 3968 |
