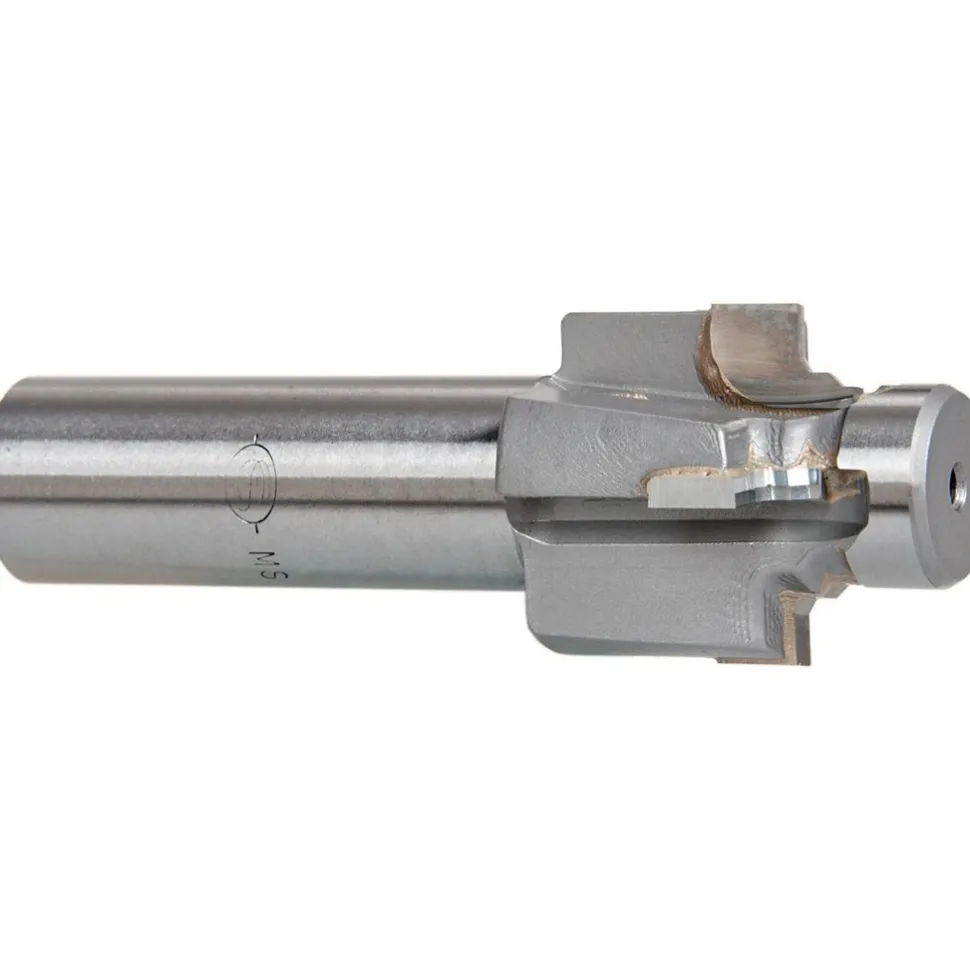

Porting Tool: 1.2400″ Spotface Dia, 1/2″ Tube OD, Plain, 3/4-16″ Port, Carbide-Tipped, Tube Dash # 8.000
Original price was: 259,00 $.130,99 $Current price is: 130,99 $.
Specifications
| Spotface Diameter (Decimal Inch): 1.2400 | Tube Outside Diameter Compatibility (Inch): 1/2 |
| Pilot Type: Plain | Port Thread Size (Decimal Inch): 3/4-16 |
| Tool Material: Carbide-Tipped | Tube Dash Number: 8.000 |
| Minimum Pilot Diameter (Decimal Inch): 0.6920 | Pilot Length: 0.4580 |
| Overall Length (Decimal Inch): 3.5700 | Number Of Flutes: 3 |
| Standards: AS5202; MS33649 | Shank Type: Straight |
| Identification Groove: No | Series: Standard |
| Seal Angle: 30 | Thread Type: UNJF |
| Flute Type: Straight | Shank Diameter (Inch): 3/4 |
| Shank Length (Decimal Inch): 2.1200 | Maximum Pilot Diameter (Decimal Inch): 0.7715 |
| Head Length (Decimal Inch): 1.4500 | Workpiece Compatibility: Tubes |
| Coating/Finish: Bright/Uncoated | UNSPSC Code: 23241603 |
| Country of Origin: UNITED STATES | |
| Spotface Diameter (Decimal Inch): 1.2400 | |
| Tube Outside Diameter Compatibility (Inch): 1/2 | |
| Pilot Type: Plain | |
| Port Thread Size (Decimal Inch): 3/4-16 | |
| Tool Material: Carbide-Tipped | |
| Tube Dash Number: 8.000 | |
| Minimum Pilot Diameter (Decimal Inch): 0.6920 | |
| Pilot Length: 0.4580 | |
| Overall Length (Decimal Inch): 3.5700 | |
| Number Of Flutes: 3 | |
| Standards: AS5202; MS33649 | |
| Shank Type: Straight | |
| Identification Groove: No | |
| Series: Standard | |
| Seal Angle: 30 | |
| Thread Type: UNJF | |
| Flute Type: Straight | |
| Shank Diameter (Inch): 3/4 | |
| Shank Length (Decimal Inch): 2.1200 | |
| Maximum Pilot Diameter (Decimal Inch): 0.7715 | |
| Head Length (Decimal Inch): 1.4500 | |
| Workpiece Compatibility: Tubes | |
| Coating/Finish: Bright/Uncoated | |
| UNSPSC Code: 23241603 | |
| Country of Origin: UNITED STATES |
| MSC# | 99247876 |
| Mfr# | AS5202-08S |
