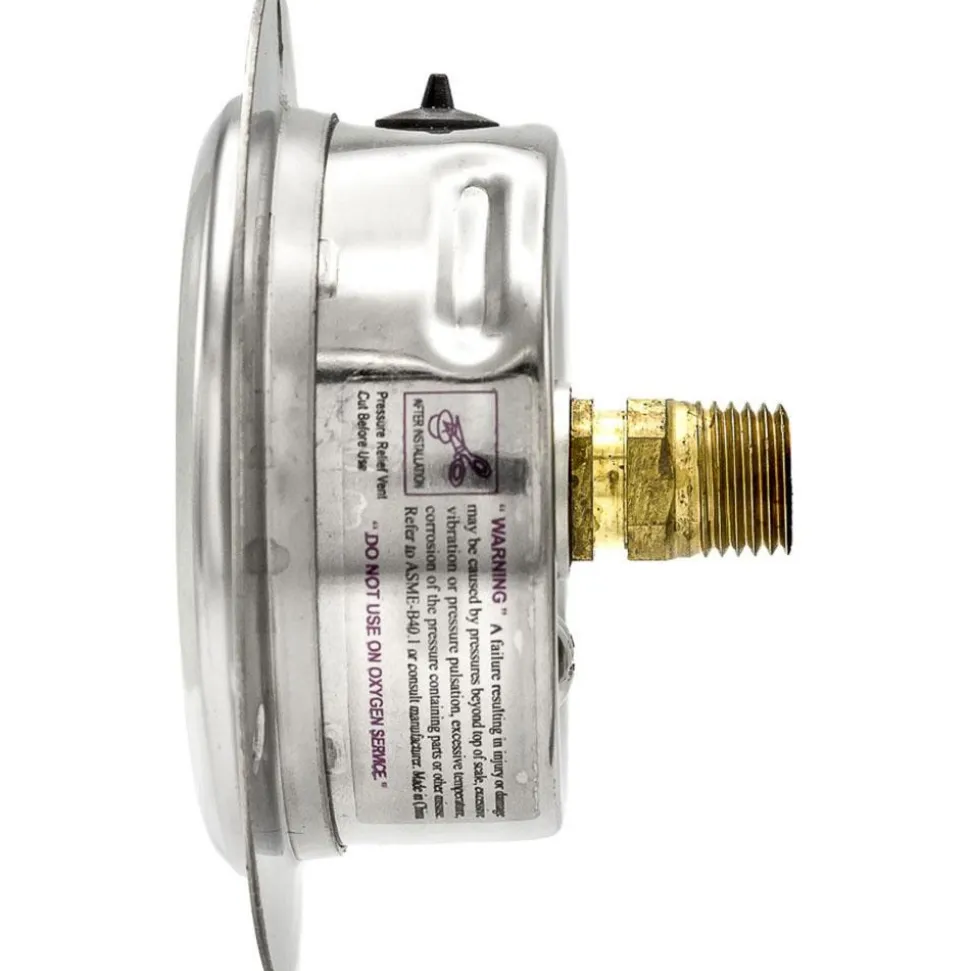

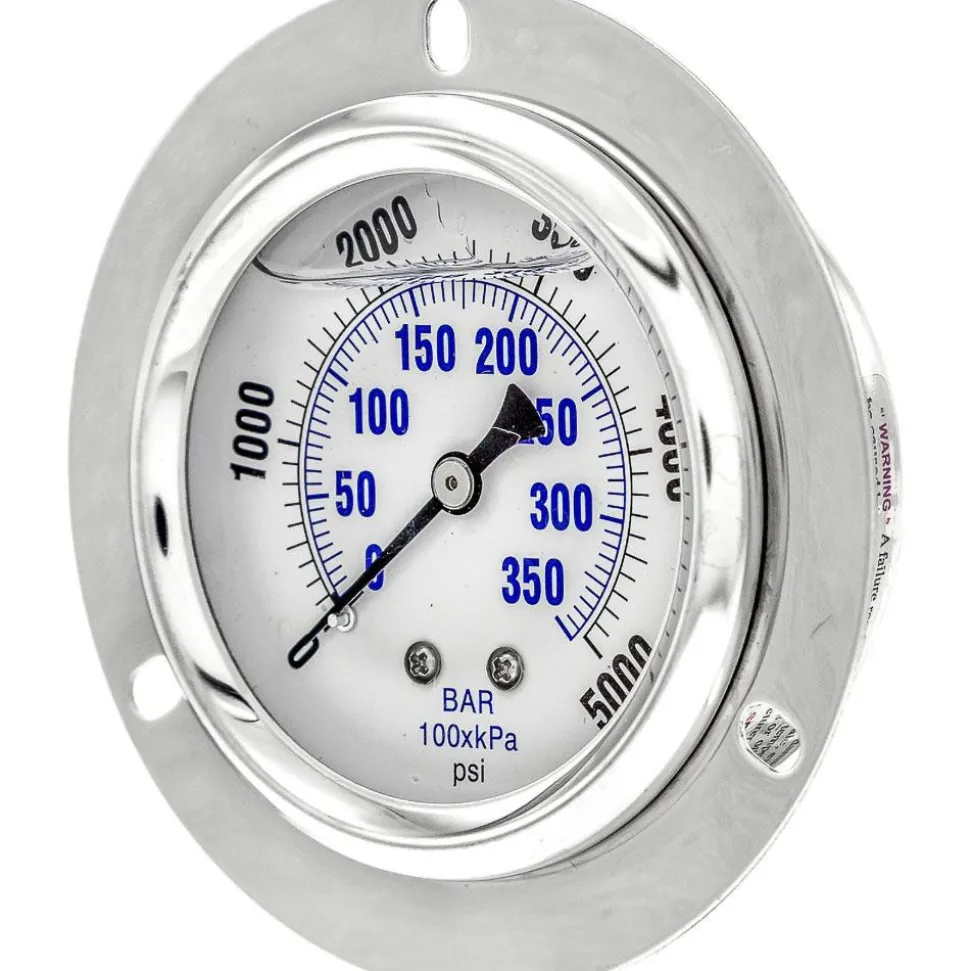

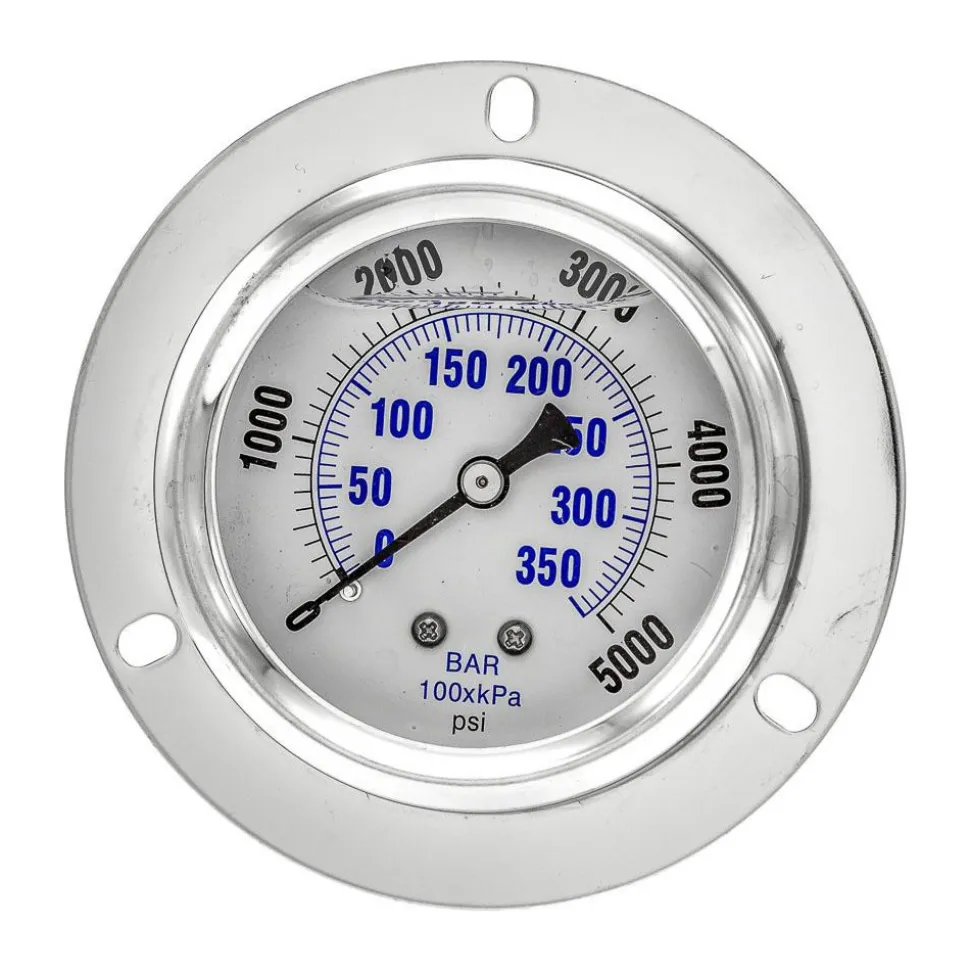

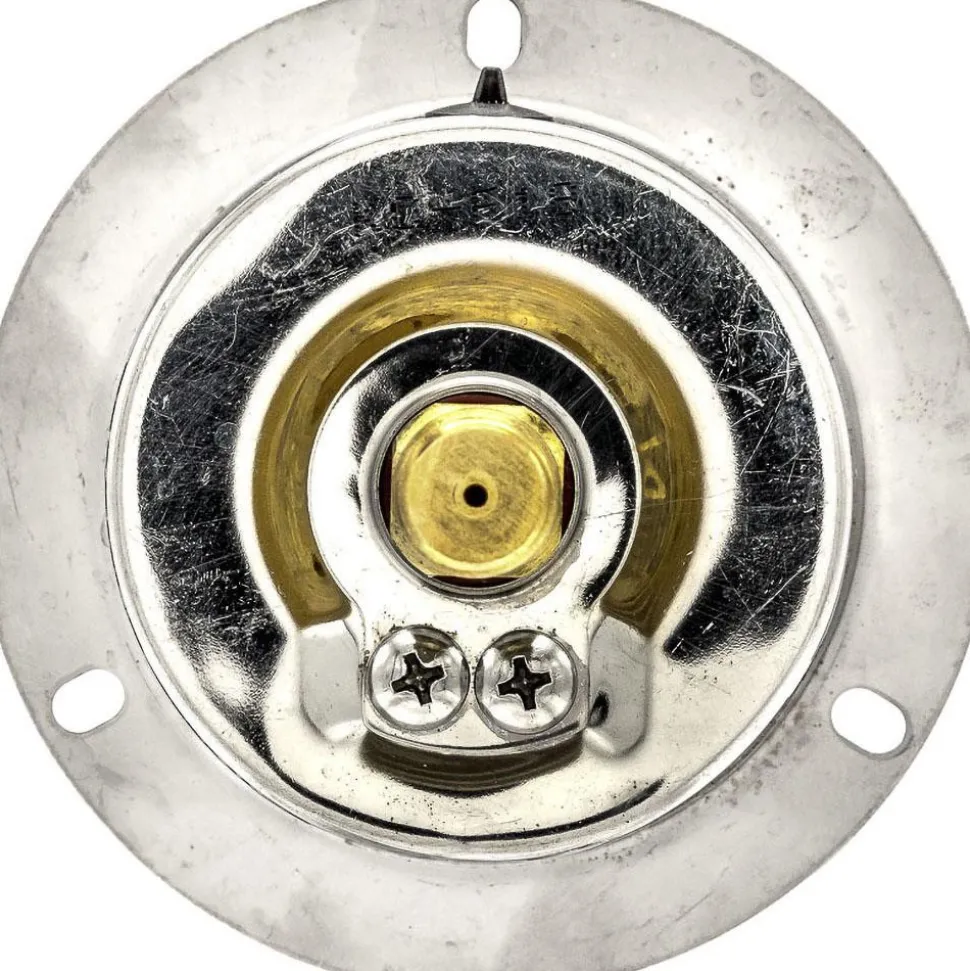

Pressure Gauge: 2-1/2" Dial Dia, 0 to 5,000 psi, 1/4" MNPT, Front Flange Panel & Center Back Mount

Pressure Gauge: 2-1/2″ Dial Dia, 0 to 5,000 psi, 1/4″ MNPT, Front Flange Panel & Center Back Mount

23,89 $

SKU: SKUsdZ0hpD5Jc Categories: Measuring & Inspecting, Pressure & Temperature Measuring Instruments, Shop All Products Tag: PIC Gauges Brand: PIC Gauges

Description
Reviews (0)

Specifications

Gauge Type: Industrial	Thread Size: 1/4
Pressure Range: 0 to 5000 psi	Scale Type: Dual
Accuracy (%): +/-2-1-2	Dial Type: Analog
Thread Type: MNPT	Bourdon Tube Material: Bronze
Type of Liquid Filler: Glycerin	Mount Type: Front Flange Panel; Center Back
Wetted Parts Material: Copper Alloy	Dial Diameter (Inch): 2-1/2
Case Material: Stainless Steel	Minimum Pressure PSI: 0
Maximum Pressure PSI: 5000	Liquid Filled: Yes
Lens Material: Polycarbonate	Minimum Working Temperature (Deg F): 30
Maximum Working Temperature (F): 160.000	Minimum Working Temperature (Deg C): -1
Maximum Working Temprature (Deg C): 71	UNSPSC Code: 41112412
Country of Origin: China
Gauge Type: Industrial
Thread Size: 1/4
Pressure Range: 0 to 5000 psi
Scale Type: Dual
Accuracy (%): +/-2-1-2
Dial Type: Analog
Thread Type: MNPT
Bourdon Tube Material: Bronze
Type of Liquid Filler: Glycerin
Mount Type: Front Flange Panel; Center Back
Wetted Parts Material: Copper Alloy
Dial Diameter (Inch): 2-1/2
Case Material: Stainless Steel
Minimum Pressure PSI: 0
Maximum Pressure PSI: 5000
Liquid Filled: Yes
Lens Material: Polycarbonate
Minimum Working Temperature (Deg F): 30
Maximum Working Temperature (F): 160.000
Minimum Working Temperature (Deg C): -1
Maximum Working Temprature (Deg C): 71
UNSPSC Code: 41112412
Country of Origin: China
