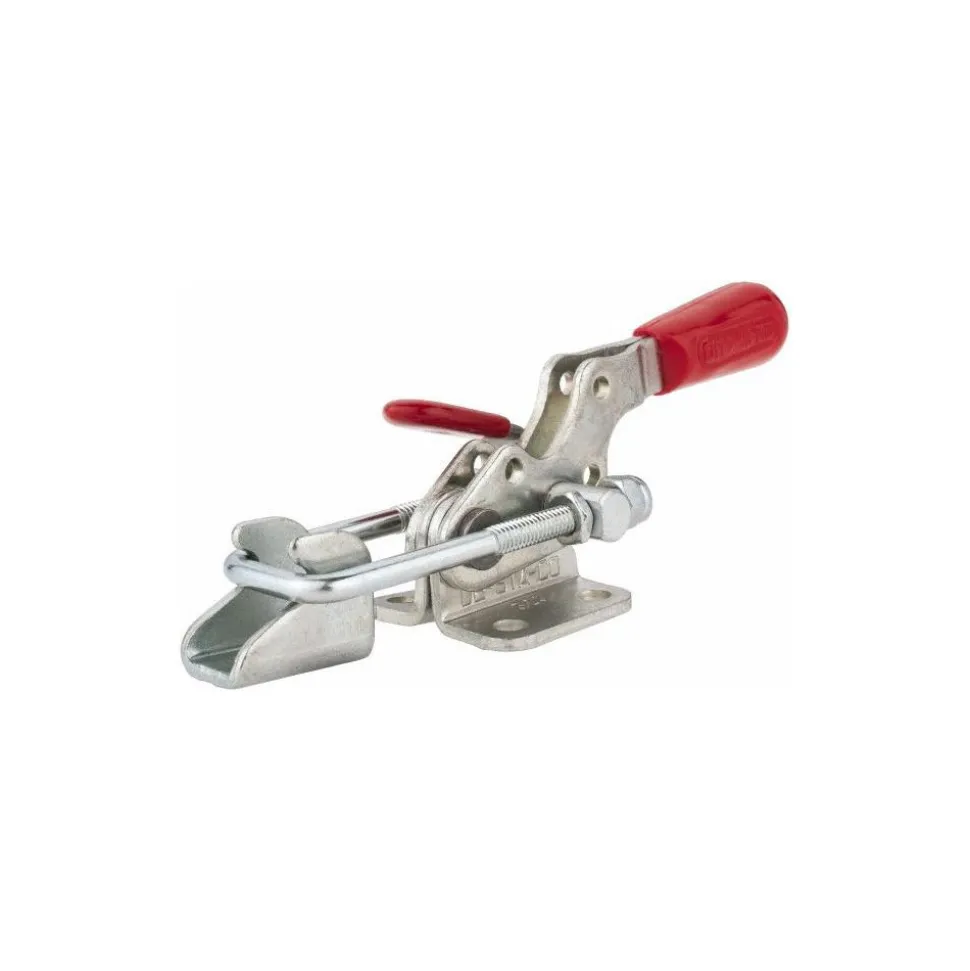

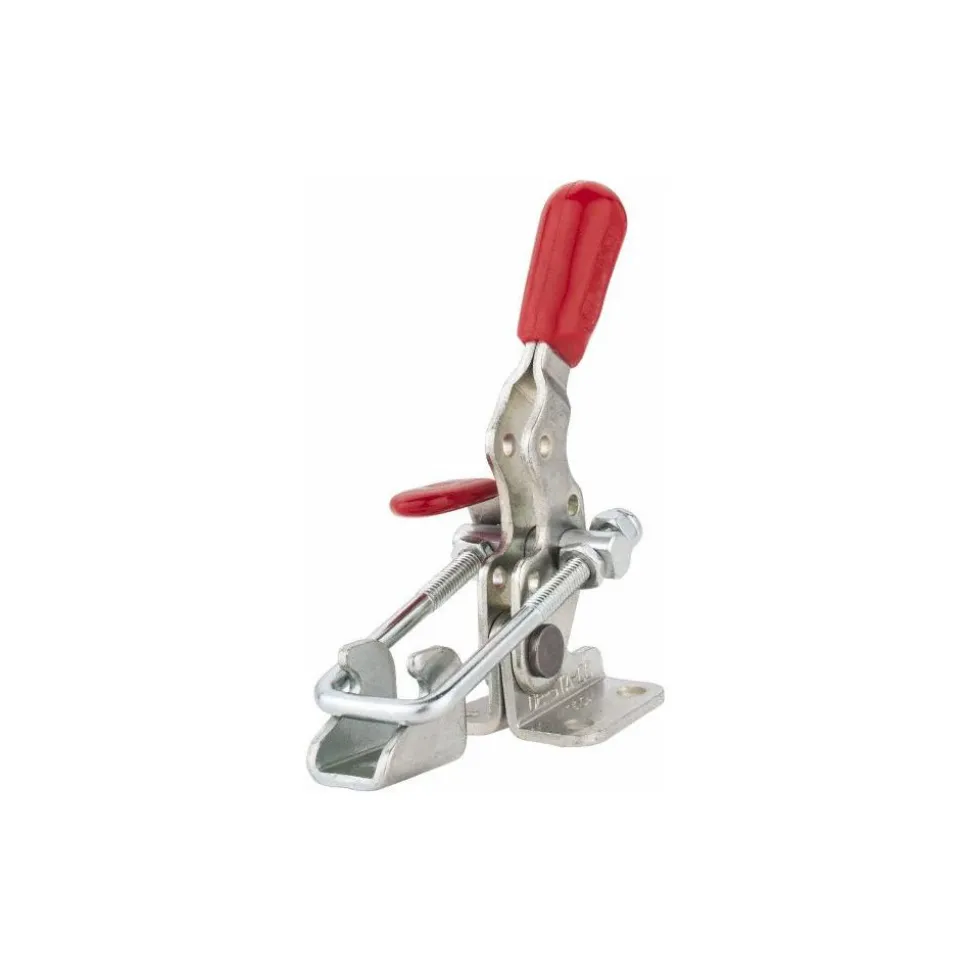

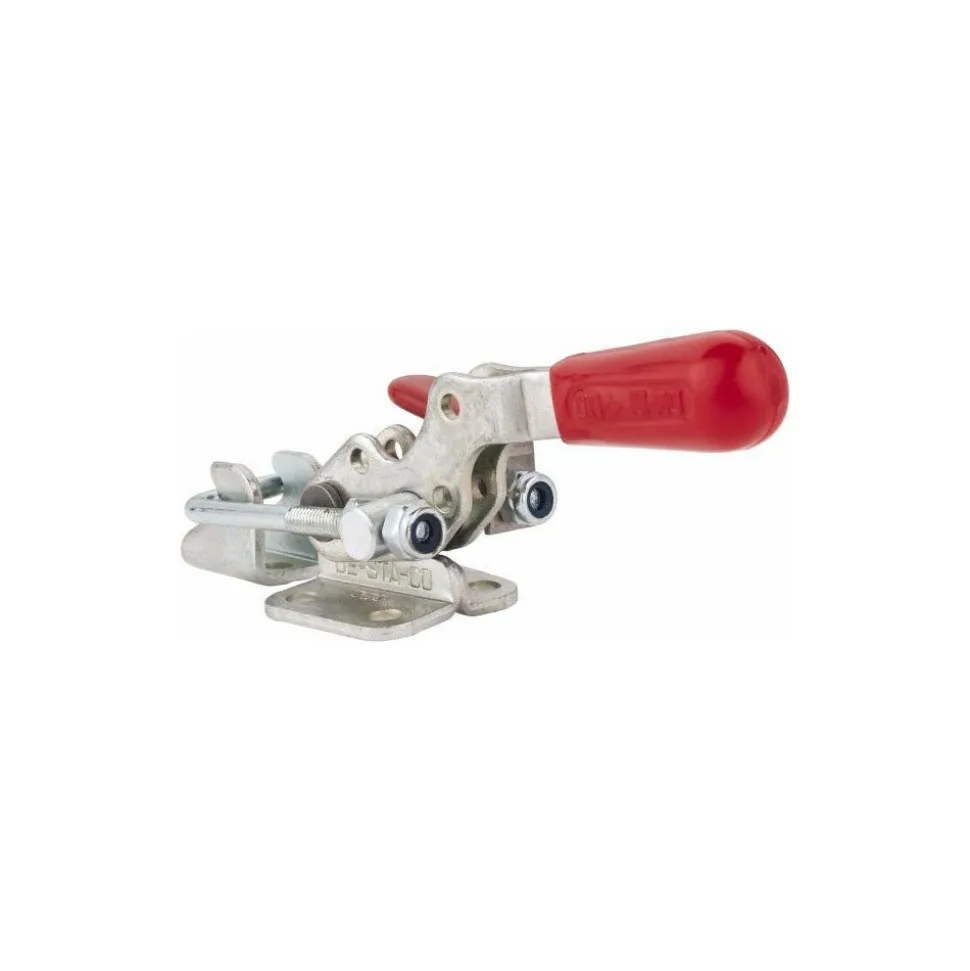

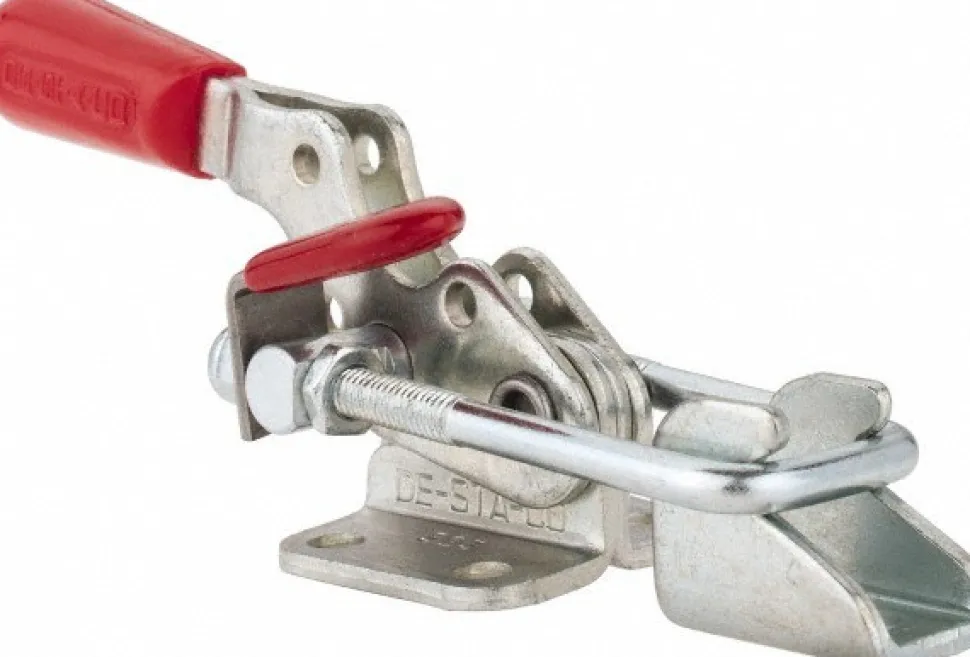

Pull-Action Latch Clamp: Horizontal, 360 lb, U-Hook, Flanged Base
13,89 $
Specifications
| Clamping Orientation: Horizontal | Bar Style: U-Hook |
| Load Capacity (N): 1601.36 | Load Capacity (Lb): 360.000 |
| Load Capacity (Kg): 163.00 | Load Capacity: 1601.36 N; 360 lb |
| Base Style: Flanged | Material: Carbon Steel |
| Body Material: Carbon Steel | Handle Style: Straight |
| Overall Length (Decimal Inch): 3.8800 | Overall Length (mm): 98.55 |
| Overall Height (mm): 30.23 | Overall Height (Decimal Inch): 1.1900 |
| Drawing Movement (mm): 29.97 | Drawing Movement (Inch – 2 Decimals): 1.18 |
| Handle Color: Red | Base Length: 1.0200 |
| Base Length (mm): 25.91 | Base Width (Inch): 1.1000 |
| Base Width (mm): 27.94 | Mounting Hole Diameter (mm): 4.32 |
| Mounting Hole Diameter: 0.1700 | Width Distance Between Mount Holes (Inch): 3/4 |
| Width Distance Between Mount Holes (mm): 19.05 | Length Distance Between Mount Holes (Decimal Inch): 0.6300 |
| Length Distance Between Mount Holes (mm): 16.00 | Bar Width (Decimal Inch): 0.7500 |
| Bar Width: 0.75 in; 19.05 mm | Bar Thickness (Decimal Inch): 0.1300 |
| Base to Center of Bar (mm): 11.94 | Base to Center of Bar (Decimal Inch): 0.4700 |
| Includes: Latch Plate; Threaded U-Hook; Patented Thumb Control Lever | Industry Number: 323 |
| Width Distance Between Mounting Holes: 0.7500 | UNSPSC Code: 31162900 |
| Country of Origin: VARIOUS | |
| Clamping Orientation: Horizontal | |
| Bar Style: U-Hook | |
| Load Capacity (N): 1601.36 | |
| Load Capacity (Lb): 360.000 | |
| Load Capacity (Kg): 163.00 | |
| Load Capacity: 1601.36 N; 360 lb | |
| Base Style: Flanged | |
| Material: Carbon Steel | |
| Body Material: Carbon Steel | |
| Handle Style: Straight | |
| Overall Length (Decimal Inch): 3.8800 | |
| Overall Length (mm): 98.55 | |
| Overall Height (mm): 30.23 | |
| Overall Height (Decimal Inch): 1.1900 | |
| Drawing Movement (mm): 29.97 | |
| Drawing Movement (Inch – 2 Decimals): 1.18 | |
| Handle Color: Red | |
| Base Length: 1.0200 | |
| Base Length (mm): 25.91 | |
| Base Width (Inch): 1.1000 | |
| Base Width (mm): 27.94 | |
| Mounting Hole Diameter (mm): 4.32 | |
| Mounting Hole Diameter: 0.1700 | |
| Width Distance Between Mount Holes (Inch): 3/4 | |
| Width Distance Between Mount Holes (mm): 19.05 | |
| Length Distance Between Mount Holes (Decimal Inch): 0.6300 | |
| Length Distance Between Mount Holes (mm): 16.00 | |
| Bar Width (Decimal Inch): 0.7500 | |
| Bar Width: 0.75 in; 19.05 mm | |
| Bar Thickness (Decimal Inch): 0.1300 | |
| Base to Center of Bar (mm): 11.94 | |
| Base to Center of Bar (Decimal Inch): 0.4700 | |
| Includes: Latch Plate; Threaded U-Hook; Patented Thumb Control Lever | |
| Industry Number: 323 | |
| Width Distance Between Mounting Holes: 0.7500 | |
| UNSPSC Code: 31162900 | |
| Country of Origin: VARIOUS |
| MSC# | 06966709 |
| Mfr# | 323 |
| Big Book# | 1316 |
