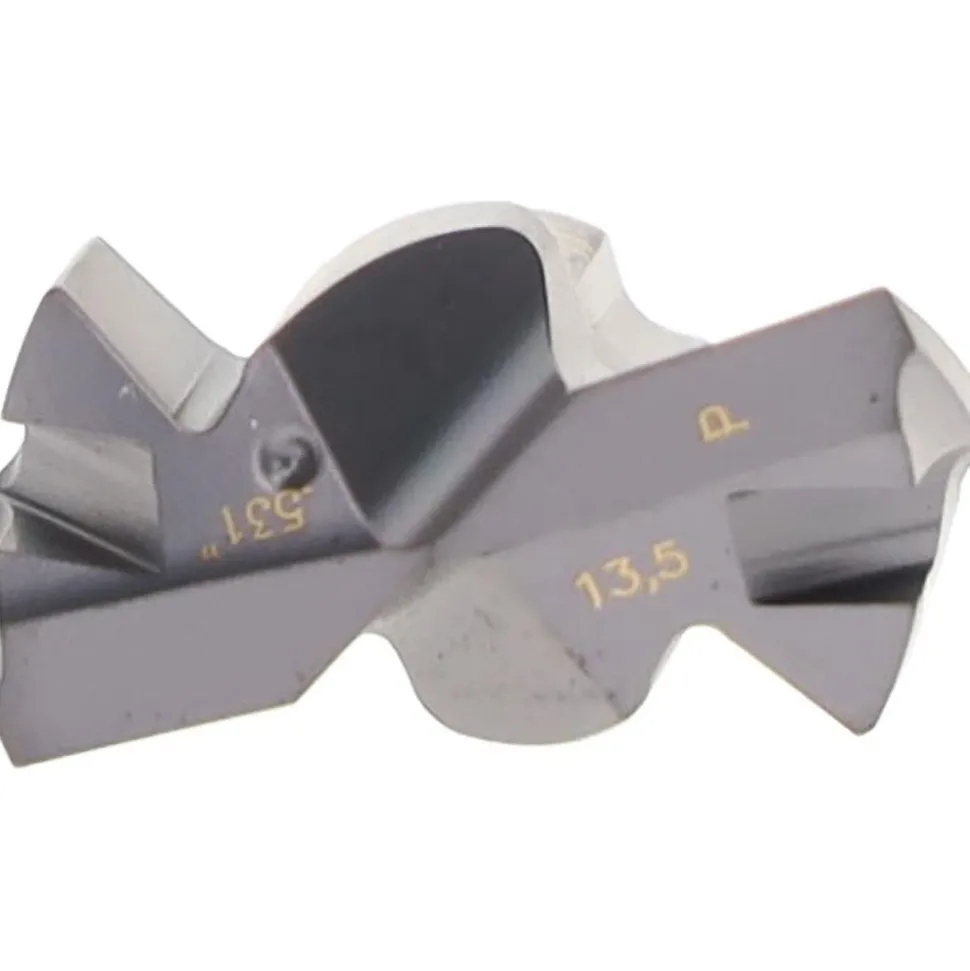

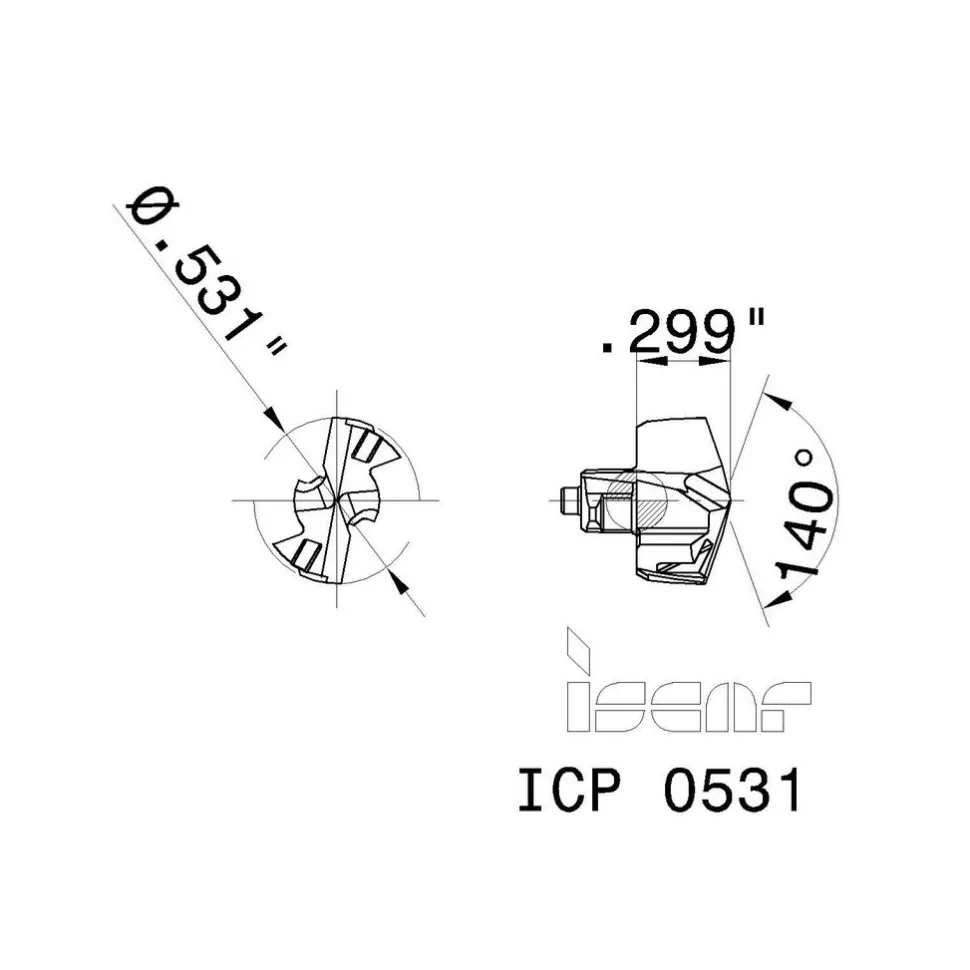

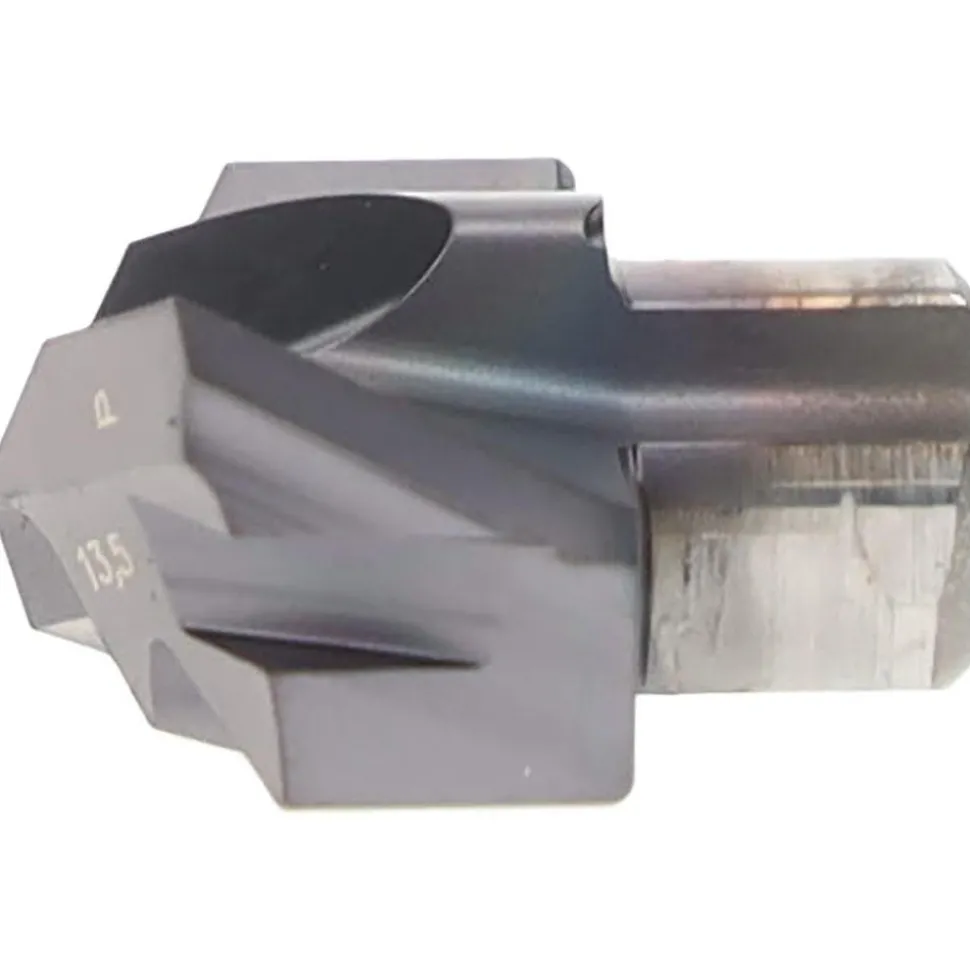

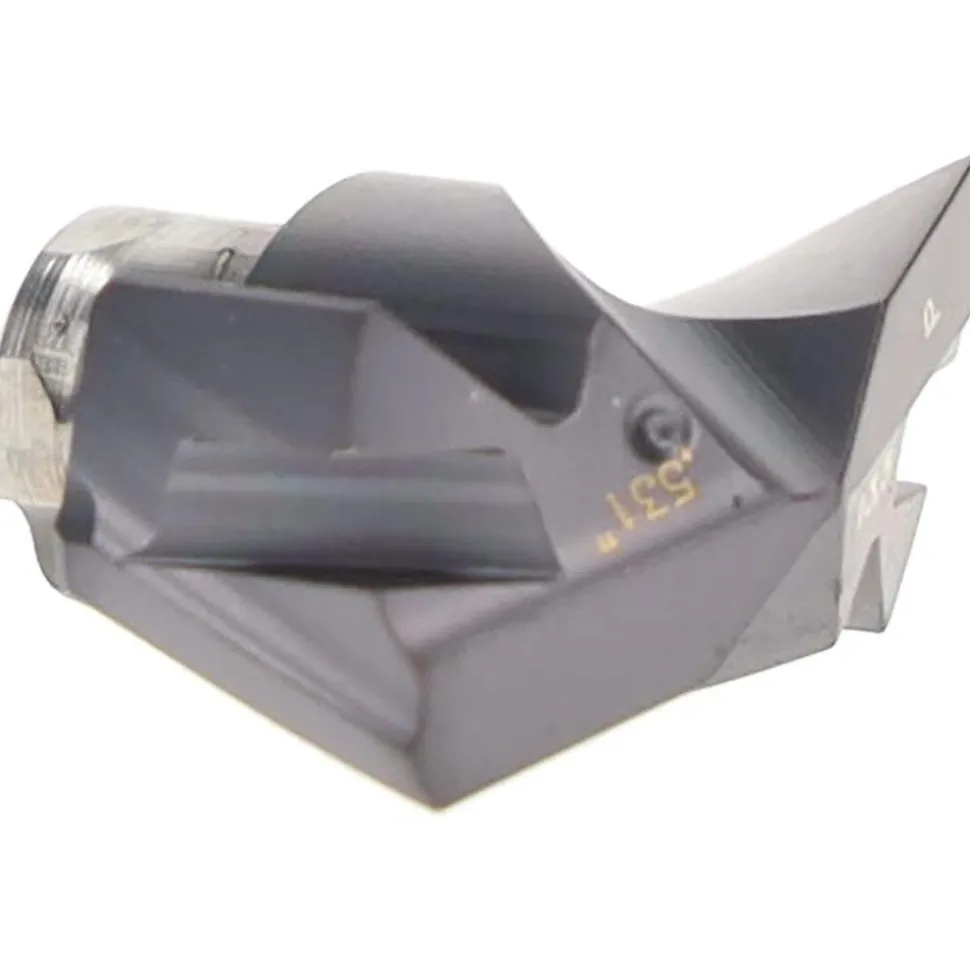

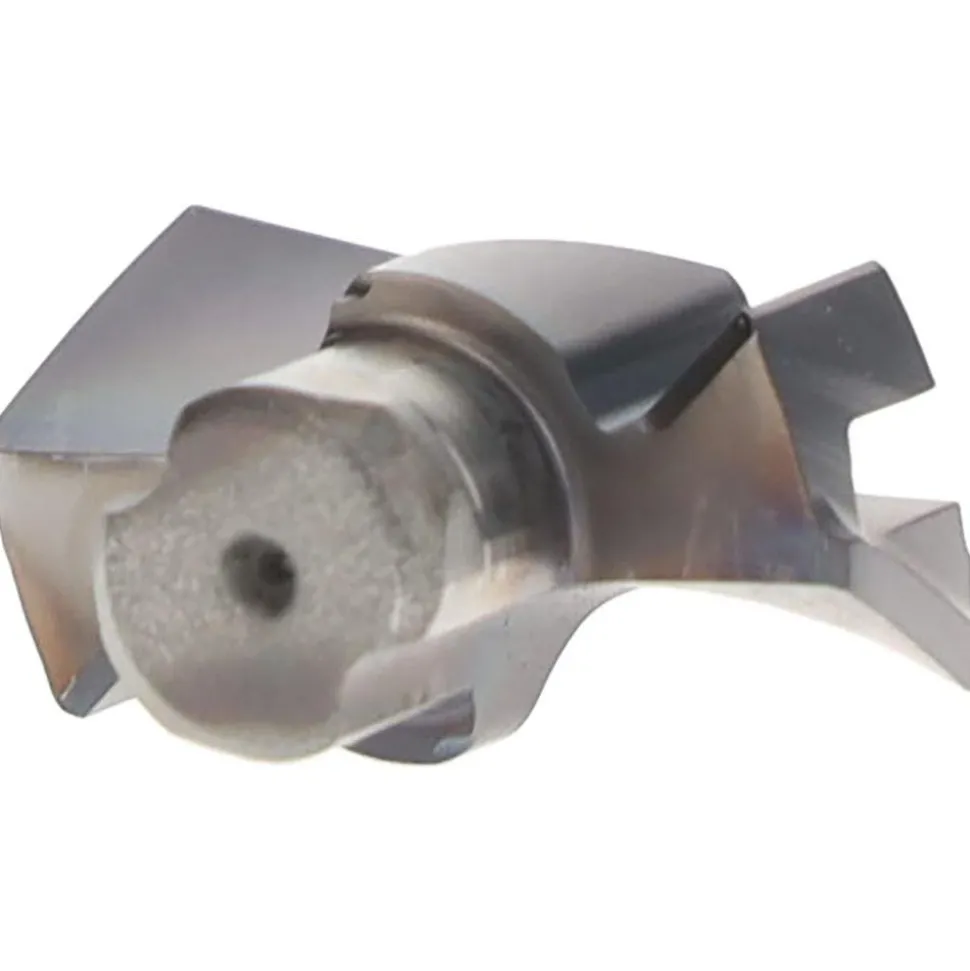

Replaceable Drill Tip: ICP0531 IC908, 0.5310″ Dia, 13.49 mm Dia, 140 deg Point
Original price was: 123,00 $.81,99 $Current price is: 81,99 $.
Specifications
| Cutting Diameter (Inch): 17/32 | Cutting Diameter (Decimal Inch): 0.5310 |
| Cutting Diameter (mm): 13.49 | Tip Material: Solid Carbide |
| Manufacturer Grade: IC908 | Material Grade: Submicron |
| Series: ICP | Coating Process: PVD |
| Insert Geometry: P | Insert Seat Size: 13 |
| Functional Length (Decimal Inch): 0.2187 | Primary Workpiece Material: Steel |
| Primary Workpiece Material Code: P | Secondary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code: S; H; K; M | Standards: ISO 13399 |
| Height (Decimal Inch): 0.2990 | Height (mm): 8.00 |
| Overall Length/Projection (Decimal Inch): 0.2995 | Web Thinning: Web Thinned |
| Drill Point Angle: 140 | Flute Type: Helical |
| Insert Holding Method: Clamp | ISO Number: ICP 135 |
| Coolant Through: No | Flute Length (mm): 6.00 |
| Point Type: Standard | Spiral Type: Regular Spiral |
| Style: ICP | Applications: Drilling; Chamfering; Gundrills; Hole Making |
| UNSPSC Code: 23242105 | Coating/Finish: TiAlN |
| Included Angle Degree: 140 | Number Of Flutes: 2 |
| Country of Origin: Israel | |
| Cutting Diameter (Inch): 17/32 | |
| Cutting Diameter (Decimal Inch): 0.5310 | |
| Cutting Diameter (mm): 13.49 | |
| Tip Material: Solid Carbide | |
| Manufacturer Grade: IC908 | |
| Material Grade: Submicron | |
| Series: ICP | |
| Coating Process: PVD | |
| Insert Geometry: P | |
| Insert Seat Size: 13 | |
| Functional Length (Decimal Inch): 0.2187 | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Secondary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium | |
| Secondary Workpiece Material Code: S; H; K; M | |
| Standards: ISO 13399 | |
| Height (Decimal Inch): 0.2990 | |
| Height (mm): 8.00 | |
| Overall Length/Projection (Decimal Inch): 0.2995 | |
| Web Thinning: Web Thinned | |
| Drill Point Angle: 140 | |
| Flute Type: Helical | |
| Insert Holding Method: Clamp | |
| ISO Number: ICP 135 | |
| Coolant Through: No | |
| Flute Length (mm): 6.00 | |
| Point Type: Standard | |
| Spiral Type: Regular Spiral | |
| Style: ICP | |
| Applications: Drilling; Chamfering; Gundrills; Hole Making | |
| UNSPSC Code: 23242105 | |
| Coating/Finish: TiAlN | |
| Included Angle Degree: 140 | |
| Number Of Flutes: 2 | |
| Country of Origin: Israel |
| MSC# | 63493829 |
| Mfr# | 5508399 |
