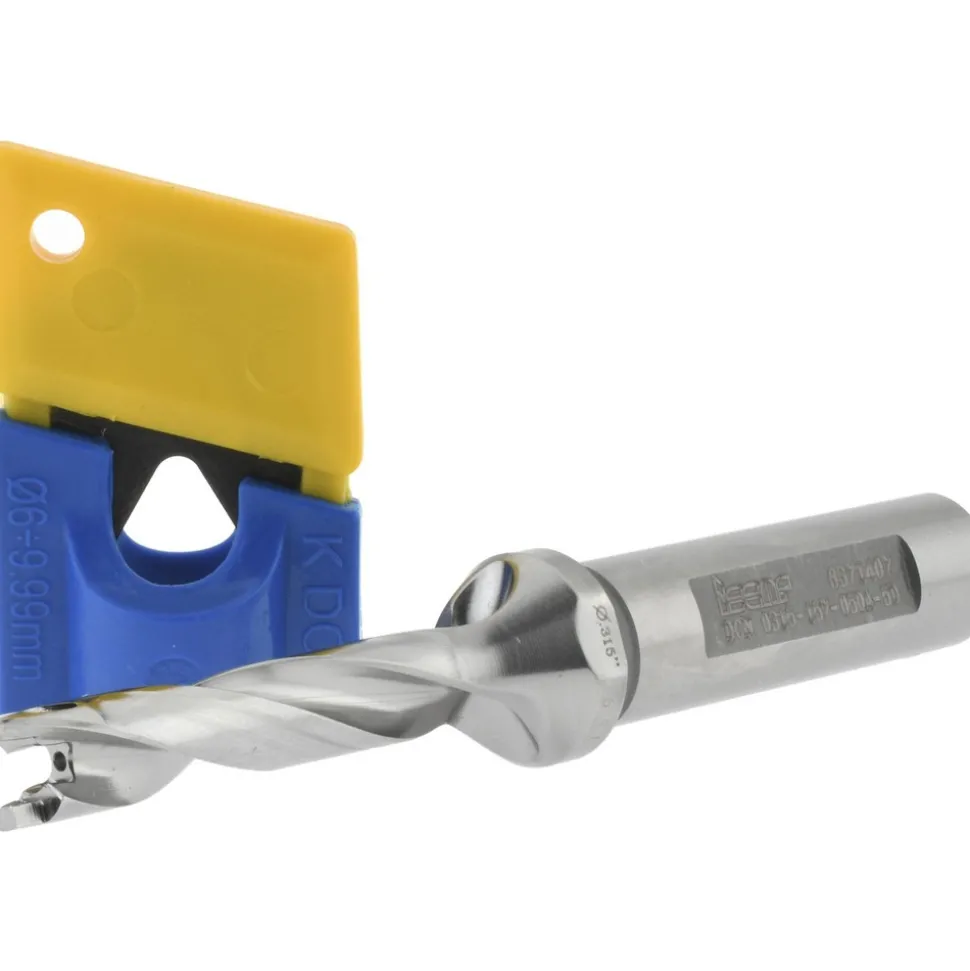

Replaceable-Tip Drill: 0.315 to 0.331″ Dia, 1.57″ Max Depth, 1/2″ Weldon Flat Shank
128,89 $
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.3150 | Maximum Drill Diameter (Decimal Inch): 0.3310 |
| Drill Depth by Diameter Ratio: 5xD | Maximum Drill Depth (Decimal Inch): 1.5700 |
| Shank Type: Weldon Flat | Shank Diameter (Inch): 1/2 |
| Shank Diameter (Decimal Inch): 0.5000 | Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICP |
| Overall Length (Decimal Inch): 3.9500 | Series: SumoCham |
| Toolholder Style: DCN | Standards: ISO 13399 |
| Coolant Through: Yes | UNSPSC Code: 23291502 |
| Country of Origin: Israel | |
| Minimum Drill Diameter (Decimal Inch): 0.3150 | |
| Maximum Drill Diameter (Decimal Inch): 0.3310 | |
| Drill Depth by Diameter Ratio: 5xD | |
| Maximum Drill Depth (Decimal Inch): 1.5700 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 1/2 | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICP | |
| Overall Length (Decimal Inch): 3.9500 | |
| Series: SumoCham | |
| Toolholder Style: DCN | |
| Standards: ISO 13399 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: Israel |
| MSC# | 62113923 |
| Mfr# | 3202291 |
