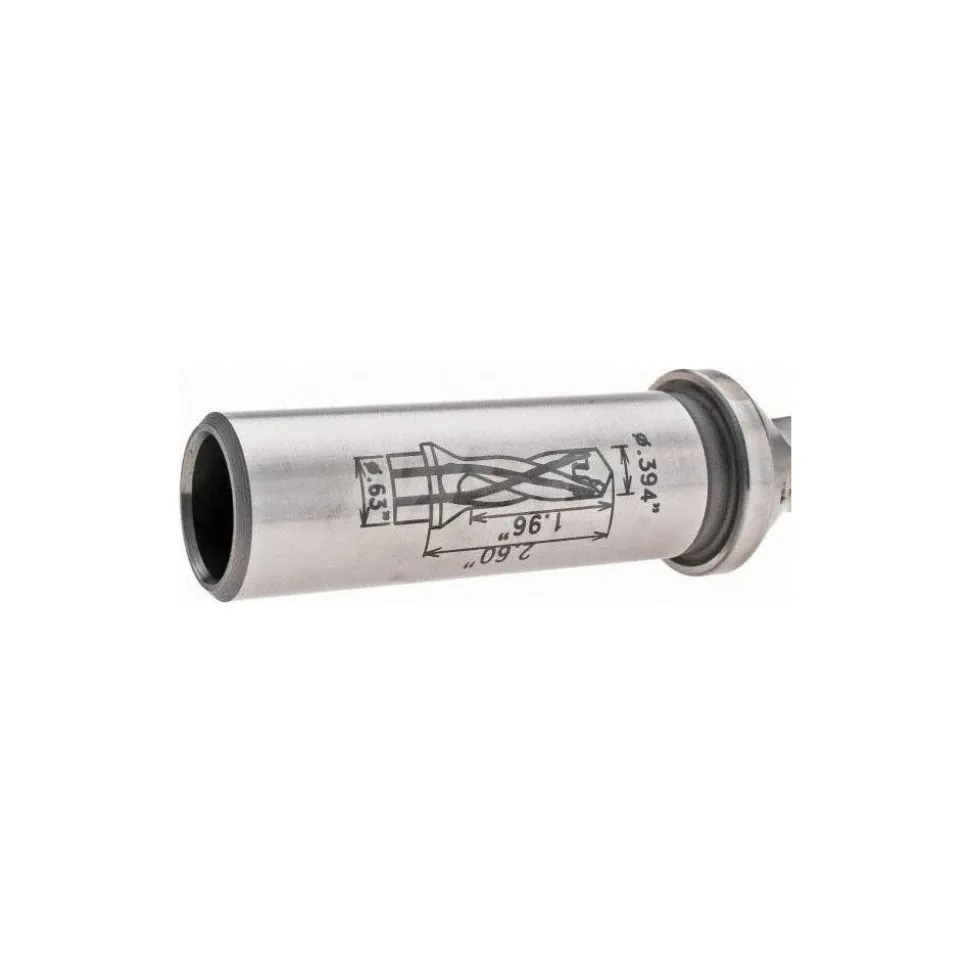

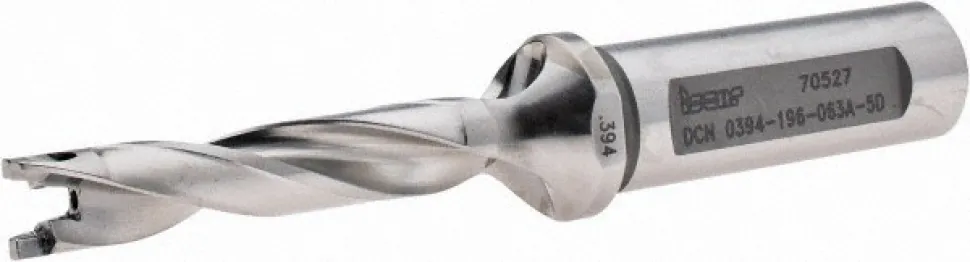

Replaceable-Tip Drill: 0.394 to 0.409″ Dia, 1.96″ Max Depth, 5/8″ Weldon Flat Shank
122,89 $
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.3940 | Maximum Drill Diameter (Decimal Inch): 0.4090 |
| Drill Depth by Diameter Ratio: 5xD | Maximum Drill Depth (Decimal Inch): 1.9600 |
| Shank Type: Weldon Flat | Shank Diameter (Inch): 5/8 |
| Shank Diameter (Decimal Inch): 0.6250 | Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICP |
| Overall Length (Decimal Inch): 4.5000 | Series: SumoCham |
| Toolholder Style: DCN | Standards: ISO 13399 |
| Coolant Through: Yes | UNSPSC Code: 23291502 |
| Country of Origin: Israel | |
| Minimum Drill Diameter (Decimal Inch): 0.3940 | |
| Maximum Drill Diameter (Decimal Inch): 0.4090 | |
| Drill Depth by Diameter Ratio: 5xD | |
| Maximum Drill Depth (Decimal Inch): 1.9600 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 5/8 | |
| Shank Diameter (Decimal Inch): 0.6250 | |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICP | |
| Overall Length (Decimal Inch): 4.5000 | |
| Series: SumoCham | |
| Toolholder Style: DCN | |
| Standards: ISO 13399 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: Israel |
| MSC# | 63105472 |
| Mfr# | 3260111 |
