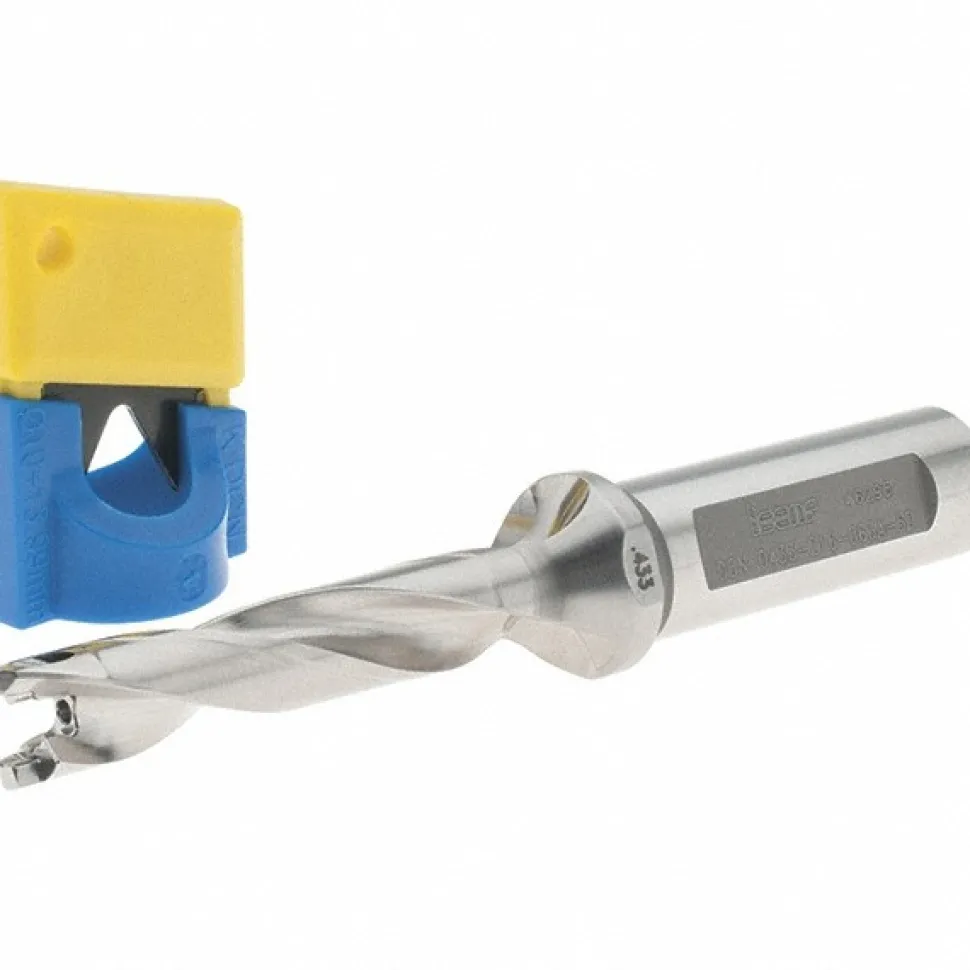

Replaceable-Tip Drill: 0.433 to 0.449″ Dia, 2.24″ Max Depth, 5/8″ Flatted Shank
140,89 $
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.4330 | Maximum Drill Diameter (Decimal Inch): 0.4490 |
| Maximum Drill Depth (Decimal Inch): 2.2400 | Shank Type: Flatted |
| Shank Diameter (Decimal Inch): 0.6250 | Compatible Insert Style: ICK; FCP; HCP-IQ; ICM; ICK-2M; ICP-2M; ICN; ICP; QCP-2M |
| Overall Length (Decimal Inch): 4.7100 | Series: SumoCham |
| Toolholder Style: DCN A-5D | Standards: ISO 13399 |
| Coolant Through: Yes | UNSPSC Code: 23291502 |
| Country of Origin: Israel | |
| Minimum Drill Diameter (Decimal Inch): 0.4330 | |
| Maximum Drill Diameter (Decimal Inch): 0.4490 | |
| Maximum Drill Depth (Decimal Inch): 2.2400 | |
| Shank Type: Flatted | |
| Shank Diameter (Decimal Inch): 0.6250 | |
| Compatible Insert Style: ICK; FCP; HCP-IQ; ICM; ICK-2M; ICP-2M; ICN; ICP; QCP-2M | |
| Overall Length (Decimal Inch): 4.7100 | |
| Series: SumoCham | |
| Toolholder Style: DCN A-5D | |
| Standards: ISO 13399 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: Israel |
| MSC# | 73975823 |
| Mfr# | 3202445 |
