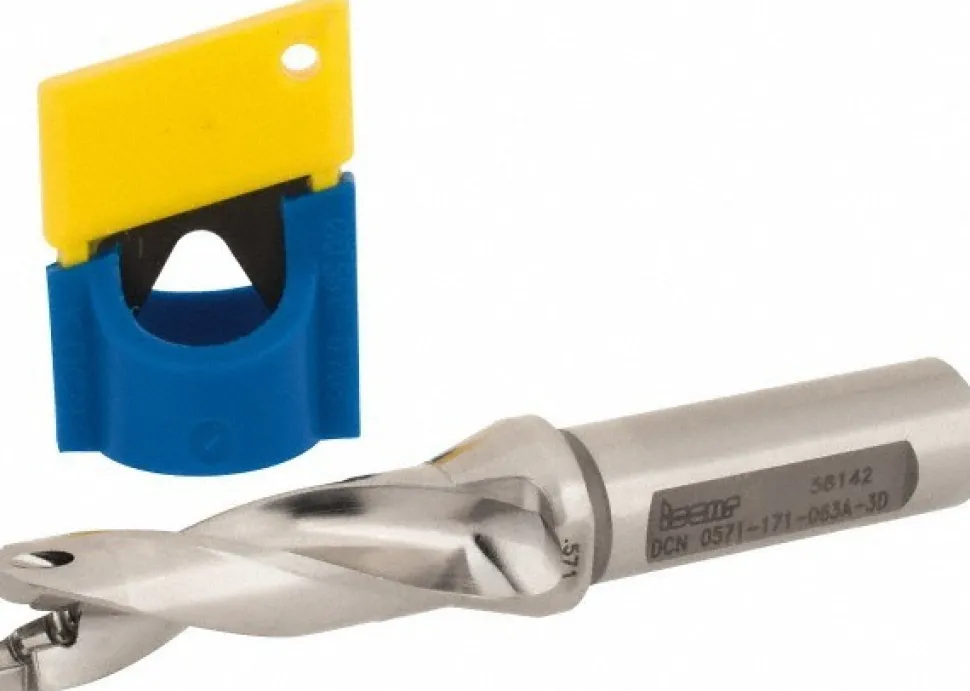

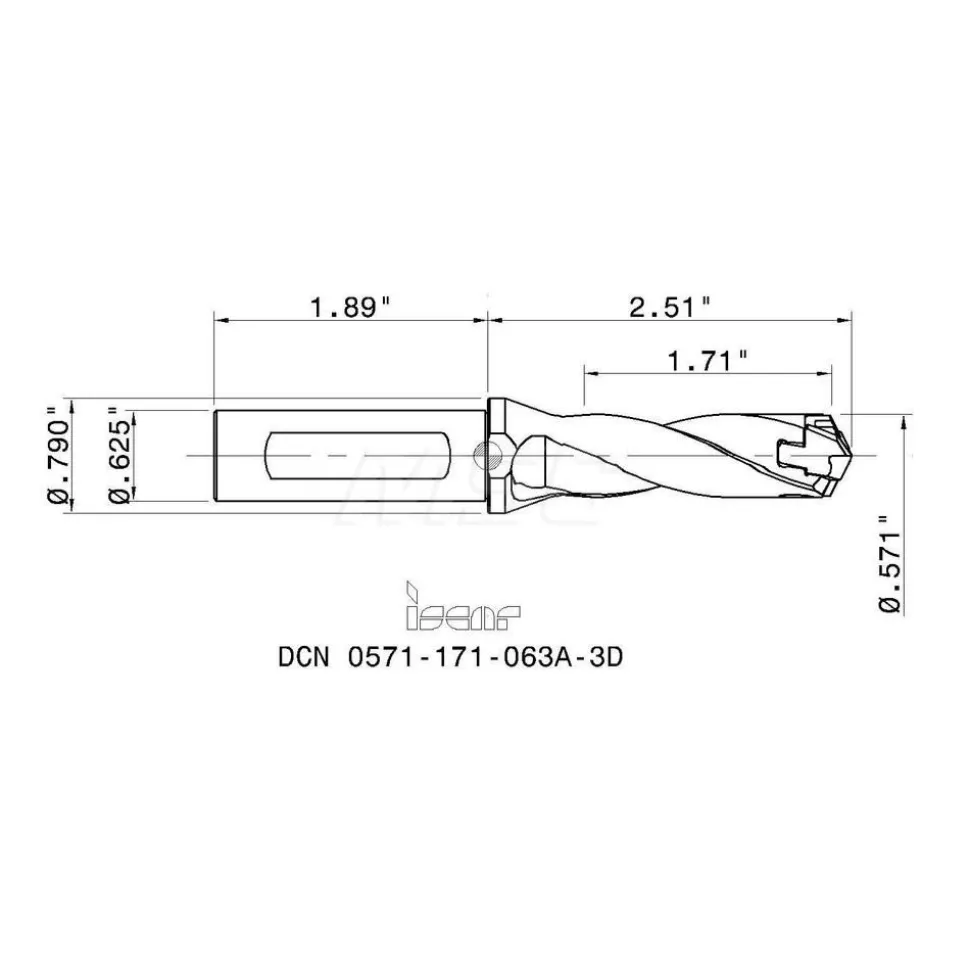

Replaceable-Tip Drill: 0.571 to 0.587″ Dia, 1.71″ Max Depth, 5/8″ Weldon Flat Shank
134,89 $
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.5710 | Maximum Drill Diameter (Decimal Inch): 0.5870 |
| Drill Depth by Diameter Ratio: 3xD | Maximum Drill Depth (Decimal Inch): 1.7100 |
| Shank Type: Weldon Flat | Shank Diameter (Inch): 5/8 |
| Shank Diameter (Decimal Inch): 0.6250 | Insert Seat Size: 14 |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | Overall Length (Decimal Inch): 4.4000 |
| Series: SumoCham | Toolholder Style: DCN |
| Standards: ISO 13399 | Coolant Through: Yes |
| UNSPSC Code: 23291502 | Country of Origin: Israel |
| Minimum Drill Diameter (Decimal Inch): 0.5710 | |
| Maximum Drill Diameter (Decimal Inch): 0.5870 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Maximum Drill Depth (Decimal Inch): 1.7100 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 5/8 | |
| Shank Diameter (Decimal Inch): 0.6250 | |
| Insert Seat Size: 14 | |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | |
| Overall Length (Decimal Inch): 4.4000 | |
| Series: SumoCham | |
| Toolholder Style: DCN | |
| Standards: ISO 13399 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: Israel |
| MSC# | 45391729 |
| Mfr# | 3202459 |
