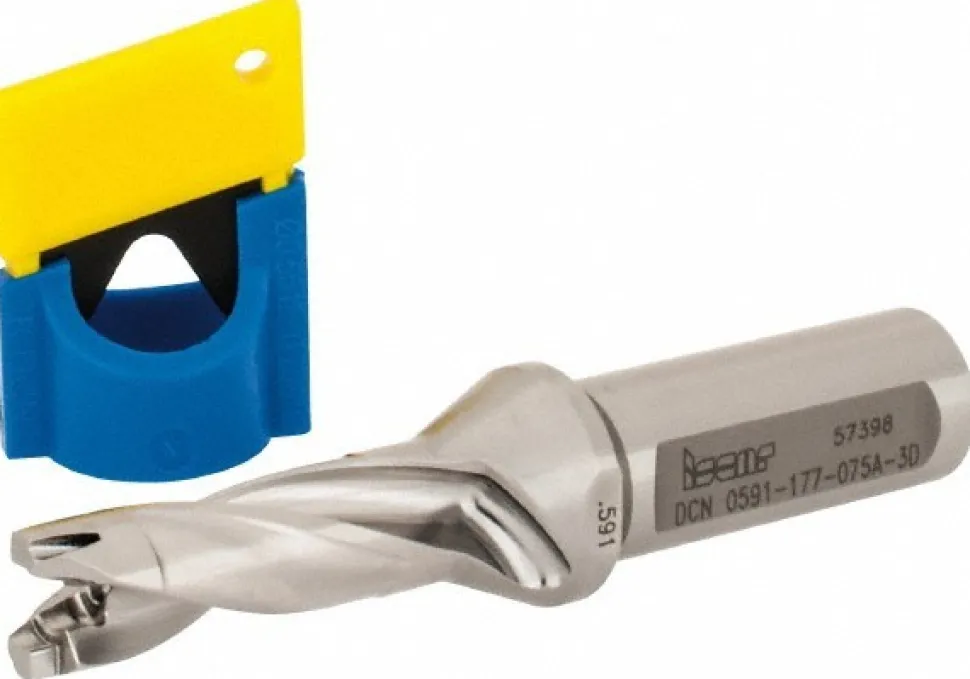

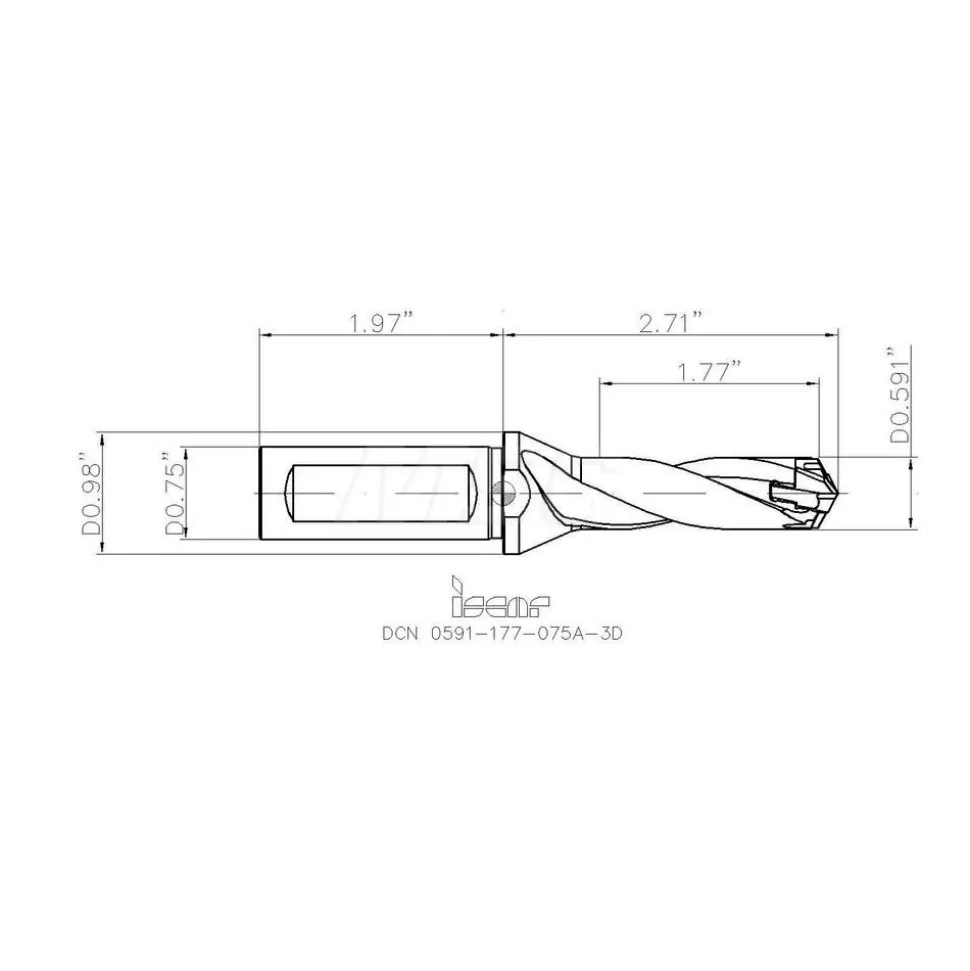

Replaceable-Tip Drill: 0.591 to 0.626″ Dia, 1.77″ Max Depth, 3/4″ Weldon Flat Shank
124,89 $
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.5910 | Maximum Drill Diameter (Decimal Inch): 0.6260 |
| Drill Depth by Diameter Ratio: 3xD | Maximum Drill Depth (Decimal Inch): 1.7700 |
| Shank Type: Weldon Flat | Shank Diameter (Inch): 3/4 |
| Shank Diameter (Decimal Inch): 0.7500 | Insert Seat Size: 15 |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | Overall Length (Decimal Inch): 4.6800 |
| Series: SumoCham | Toolholder Style: DCN |
| Standards: ISO 13399 | Coolant Through: Yes |
| UNSPSC Code: 23291502 | Country of Origin: Israel |
| Minimum Drill Diameter (Decimal Inch): 0.5910 | |
| Maximum Drill Diameter (Decimal Inch): 0.6260 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Maximum Drill Depth (Decimal Inch): 1.7700 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Insert Seat Size: 15 | |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | |
| Overall Length (Decimal Inch): 4.6800 | |
| Series: SumoCham | |
| Toolholder Style: DCN | |
| Standards: ISO 13399 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: Israel |
| MSC# | 56616923 |
| Mfr# | 3202450 |
