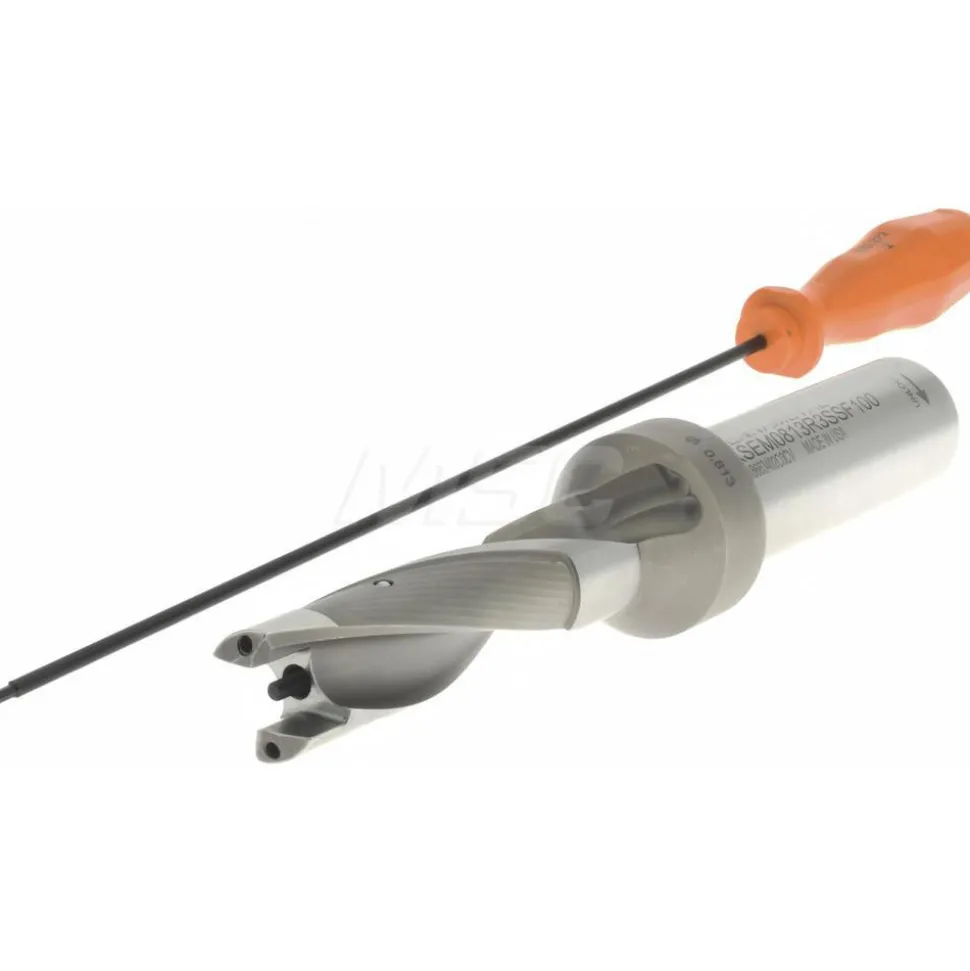

Replaceable-Tip Drill: 20.64 to 21.14 mm Dia, 66 mm Max Depth, 25.4 mm Weldon Flat Shank
130,99 $
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.8126 | Minimum Drill Diameter (mm): 20.64 |
| Maximum Drill Diameter (mm): 21.14 | Maximum Drill Diameter (Decimal Inch): 0.8323 |
| Drill Depth by Diameter Ratio: 3xD | Maximum Drill Depth (mm): 66.00 |
| Maximum Drill Depth (Decimal Inch): 2.6000 | Shank Type: Weldon Flat |
| Insert Seat Size: 3 | Shank Diameter (mm): 25.40 |
| Compatible Insert Style: KSEM0813 | Overall Length (mm): 190.50 |
| Overall Length (Decimal Inch): 7.5000 | Series: KSEM |
| Coolant Through: Yes | UNSPSC Code: 23291502 |
| Country of Origin: UNITED STATES | |
| Minimum Drill Diameter (Decimal Inch): 0.8126 | |
| Minimum Drill Diameter (mm): 20.64 | |
| Maximum Drill Diameter (mm): 21.14 | |
| Maximum Drill Diameter (Decimal Inch): 0.8323 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Maximum Drill Depth (mm): 66.00 | |
| Maximum Drill Depth (Decimal Inch): 2.6000 | |
| Shank Type: Weldon Flat | |
| Insert Seat Size: 3 | |
| Shank Diameter (mm): 25.40 | |
| Compatible Insert Style: KSEM0813 | |
| Overall Length (mm): 190.50 | |
| Overall Length (Decimal Inch): 7.5000 | |
| Series: KSEM | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: UNITED STATES |
| MSC# | 02734697 |
| Mfr# | 1505115 |
| Big Book# | 166 |
