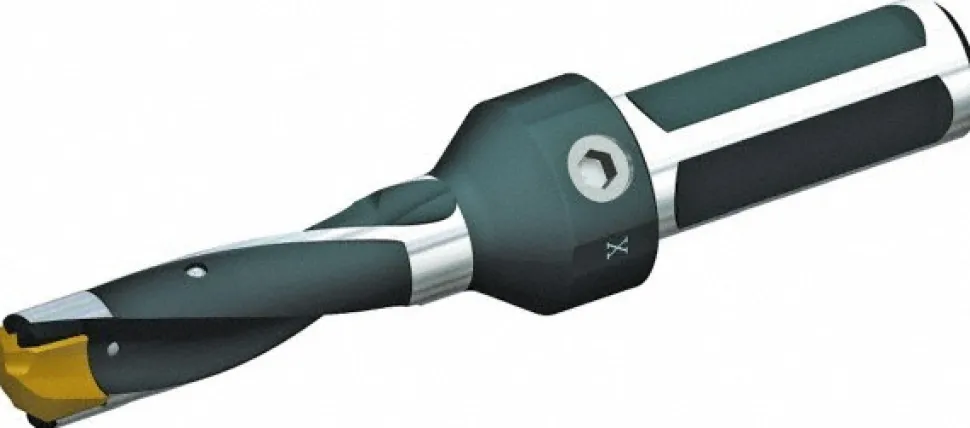

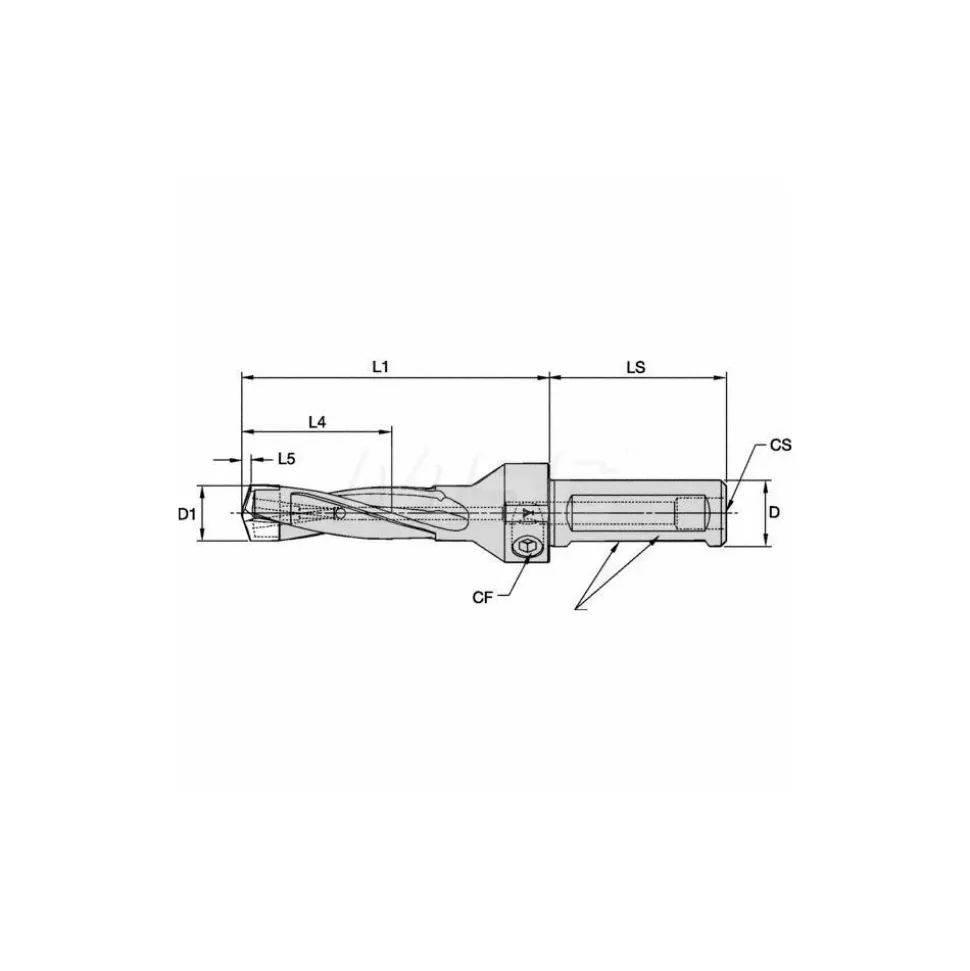

Replaceable-Tip Drill: 28.58 to 29.08 mm Dia, 90 mm Max Depth, 31.75 mm Weldon Flat Shank
122,99 $
Specifications
| Minimum Drill Diameter (Decimal Inch): 1.1252 | Minimum Drill Diameter (mm): 28.58 |
| Maximum Drill Diameter (mm): 29.08 | Maximum Drill Diameter (Decimal Inch): 1.1449 |
| Drill Depth by Diameter Ratio: 3xD | Maximum Drill Depth (mm): 90.00 |
| Maximum Drill Depth (Decimal Inch): 3.5400 | Shank Type: Weldon Flat |
| Insert Seat Size: 7 | Shank Diameter (mm): 31.75 |
| Compatible Insert Style: KSEM1125 | Overall Length (mm): 228.60 |
| Overall Length (Decimal Inch): 9.0000 | Series: KSEM |
| Coolant Through: Yes | UNSPSC Code: 23291502 |
| Country of Origin: UNITED STATES | |
| Minimum Drill Diameter (Decimal Inch): 1.1252 | |
| Minimum Drill Diameter (mm): 28.58 | |
| Maximum Drill Diameter (mm): 29.08 | |
| Maximum Drill Diameter (Decimal Inch): 1.1449 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Maximum Drill Depth (mm): 90.00 | |
| Maximum Drill Depth (Decimal Inch): 3.5400 | |
| Shank Type: Weldon Flat | |
| Insert Seat Size: 7 | |
| Shank Diameter (mm): 31.75 | |
| Compatible Insert Style: KSEM1125 | |
| Overall Length (mm): 228.60 | |
| Overall Length (Decimal Inch): 9.0000 | |
| Series: KSEM | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: UNITED STATES |
| MSC# | 02734788 |
| Mfr# | 1505127 |
