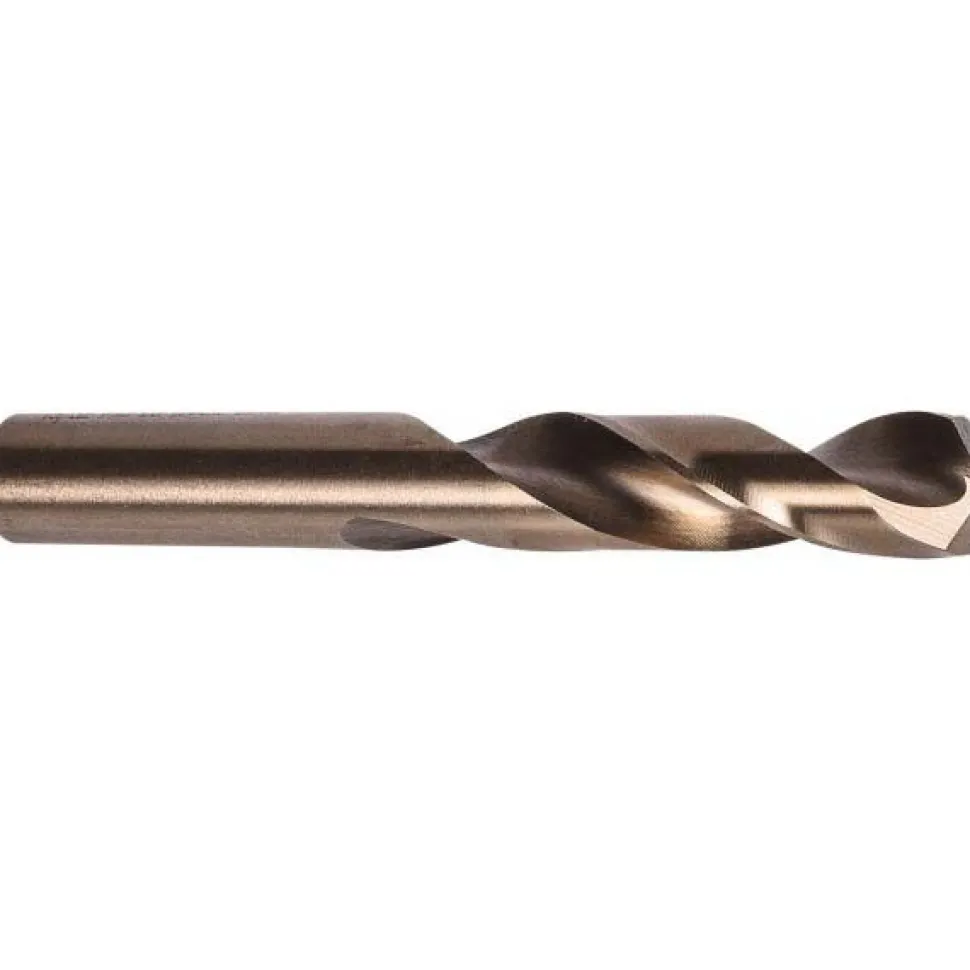

Screw Machine Drill Bit: 1/4″ (0.2500) Dia, 135 deg, Cobalt
5,89 $
Specifications
| Drill Bit Size (Inch): 1/4 | Drill Bit Size (Letter): E |
| Drill Bit Size (Decimal Inch): 0.2500 | Tool Material: Cobalt |
| Cutting Direction: Right Hand | Coating/Finish: Straw |
| Number Of Flutes: 2 | Spiral Type: Regular |
| Flute Type: Regular Spiral | Flute Length (Decimal Inch): 1.3750 |
| Drill Point Angle: 135 | Coolant Through: No |
| Shank Type: Straight | Point Type: Split Point |
| Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials | Shank Diameter (Decimal Inch): 0.2500 |
| Overall Length (Inch): 2-1/2 | Series: M40CO |
| Web Thinning: Web-Thinned | Proprietary Coating/Finish: Bronze Oxide |
| Web Configuration: Tapered | Drill Length Type: Screw Machine |
| Flute By Diameter Ratio: 2.5xD | Tool Performance: High Performance |
| Standards: ANSI | Flute Length (Inch): 1-3/8 |
| Drill Bit Grade: Heavy Duty | Drill Bit Size Range (Decimal Inch): 0.2500 to 0.3000 |
| Specification Designation: ANSI | Material Grade: M40 |
| UNSPSC Code: 23241635 | Country of Origin: Brazil |
| Drill Bit Size (Inch): 1/4 | |
| Drill Bit Size (Letter): E | |
| Drill Bit Size (Decimal Inch): 0.2500 | |
| Tool Material: Cobalt | |
| Cutting Direction: Right Hand | |
| Coating/Finish: Straw | |
| Number Of Flutes: 2 | |
| Spiral Type: Regular | |
| Flute Type: Regular Spiral | |
| Flute Length (Decimal Inch): 1.3750 | |
| Drill Point Angle: 135 | |
| Coolant Through: No | |
| Shank Type: Straight | |
| Point Type: Split Point | |
| Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials | |
| Shank Diameter (Decimal Inch): 0.2500 | |
| Overall Length (Inch): 2-1/2 | |
| Series: M40CO | |
| Web Thinning: Web-Thinned | |
| Proprietary Coating/Finish: Bronze Oxide | |
| Web Configuration: Tapered | |
| Drill Length Type: Screw Machine | |
| Flute By Diameter Ratio: 2.5xD | |
| Tool Performance: High Performance | |
| Standards: ANSI | |
| Flute Length (Inch): 1-3/8 | |
| Drill Bit Grade: Heavy Duty | |
| Drill Bit Size Range (Decimal Inch): 0.2500 to 0.3000 | |
| Specification Designation: ANSI | |
| Material Grade: M40 | |
| UNSPSC Code: 23241635 | |
| Country of Origin: Brazil |
| MSC# | 78543899 |
| Mfr# | 5996137 |
| Big Book# | 46 |
