Sale!

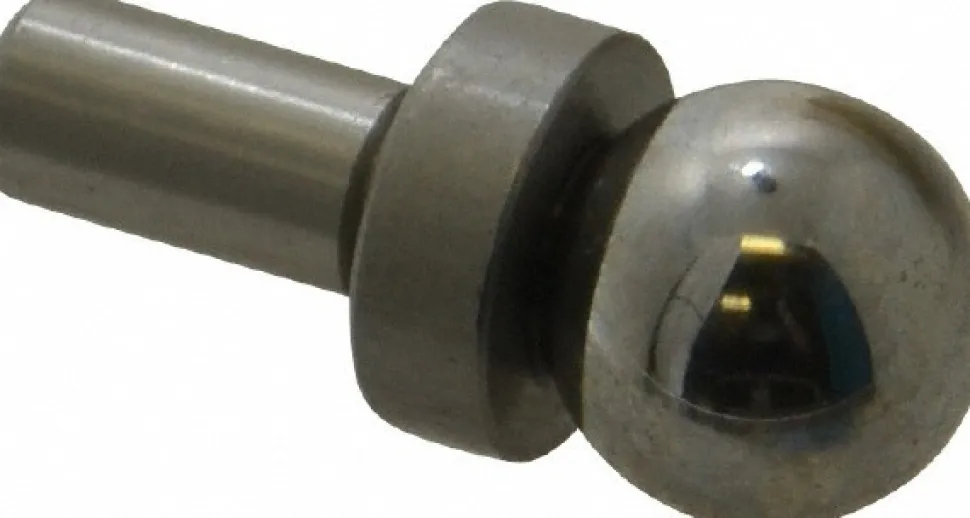

Shoulder Tooling Ball: Checking, 1/2″ Ball Dia, 0.2497″ Shank Dia
Original price was: 56,00 $.38,89 $Current price is: 38,89 $.
Specifications
| Tooling Ball Style: Checking | Shoulder: Yes |
| Breakaway: Yes | Tapped Shank: Yes |
| Heat-treated: Yes | Material: Stainless Steel |
| Shank Diameter (Decimal Inch): 0.2497 | Shank Diameter (mm): 6.34 |
| Shank Diameter: 0.2362 | Shank Tolerance (Decimal Inch): -0.0002; +0.0000 |
| Ball Diameter (Decimal Inch): 0.5000 | Ball Diameter (Inch): 1/2 |
| Ball Diameter (mm): 12.70 | Ball Center to Shank Bottom (Decimal Inch): 0.9400 |
| Ball Tolerance (Decimal Inch): ±0.0002 | Shoulder Diameter (Decimal Inch): 0.5000 |
| Ball Center to Shoulder Bottom (Decimal Inch): 0.4000 | Ball Center to Shoulder Tolerance (Decimal Inch): ±0.0002 |
| Ball and Shank Concentricity (Decimal Inch): 0.0002 | UNSPSC Code: 27112818 |
| Country of Origin: UNITED STATES | |
| Tooling Ball Style: Checking | |
| Shoulder: Yes | |
| Breakaway: Yes | |
| Tapped Shank: Yes | |
| Heat-treated: Yes | |
| Material: Stainless Steel | |
| Shank Diameter (Decimal Inch): 0.2497 | |
| Shank Diameter (mm): 6.34 | |
| Shank Diameter: 0.2362 | |
| Shank Tolerance (Decimal Inch): -0.0002; +0.0000 | |
| Ball Diameter (Decimal Inch): 0.5000 | |
| Ball Diameter (Inch): 1/2 | |
| Ball Diameter (mm): 12.70 | |
| Ball Center to Shank Bottom (Decimal Inch): 0.9400 | |
| Ball Tolerance (Decimal Inch): ±0.0002 | |
| Shoulder Diameter (Decimal Inch): 0.5000 | |
| Ball Center to Shoulder Bottom (Decimal Inch): 0.4000 | |
| Ball Center to Shoulder Tolerance (Decimal Inch): ±0.0002 | |
| Ball and Shank Concentricity (Decimal Inch): 0.0002 | |
| UNSPSC Code: 27112818 | |
| Country of Origin: UNITED STATES |
| MSC# | 97236178 |
| Mfr# | 29013 |
