Sale!

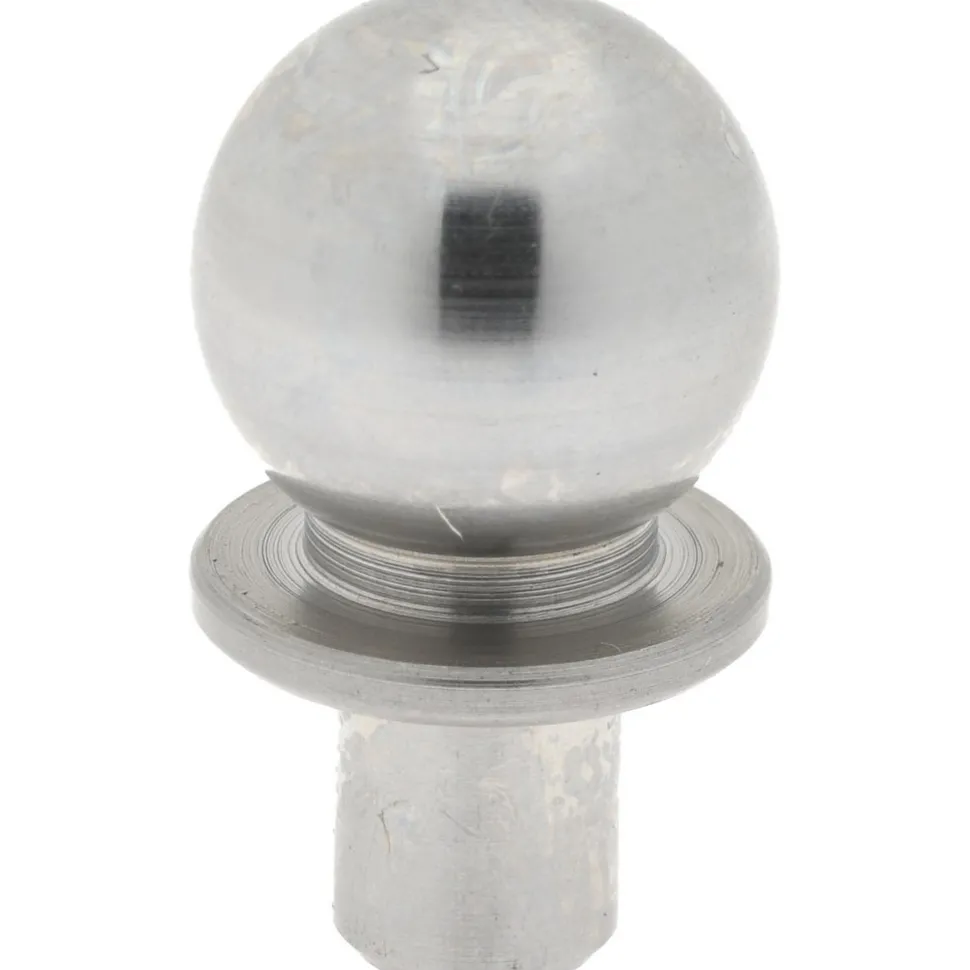

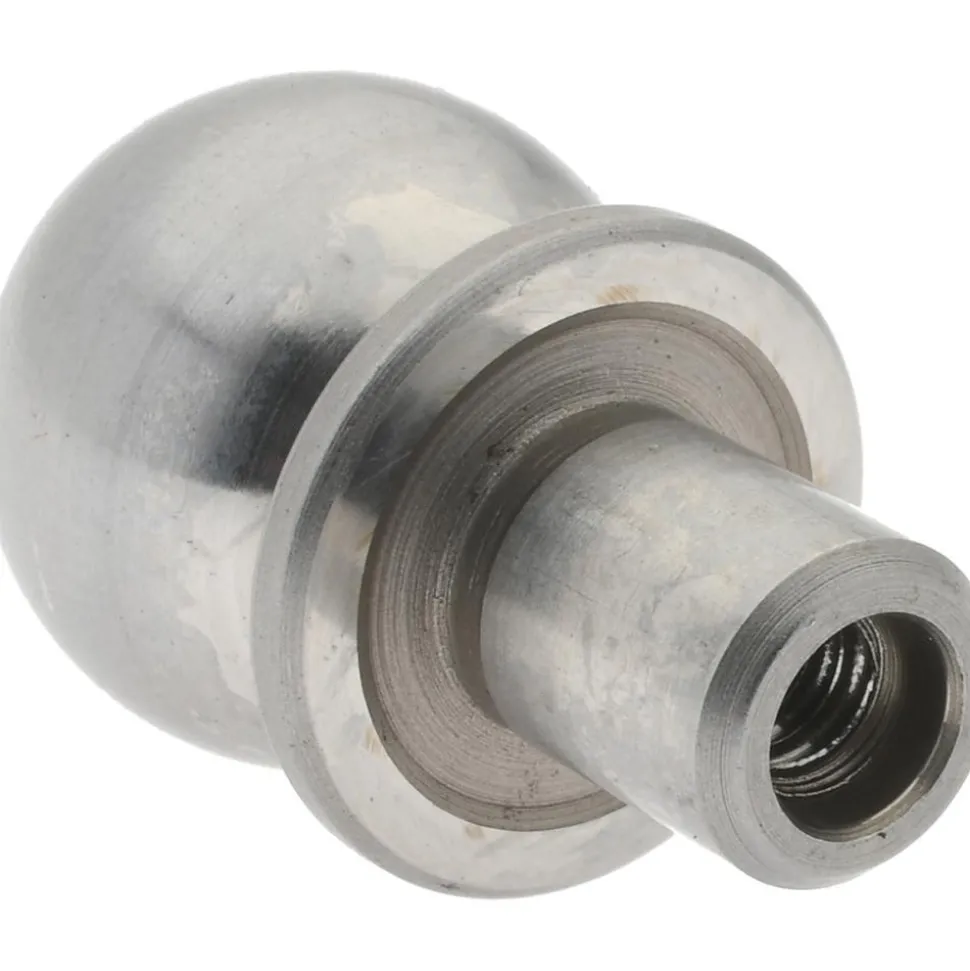

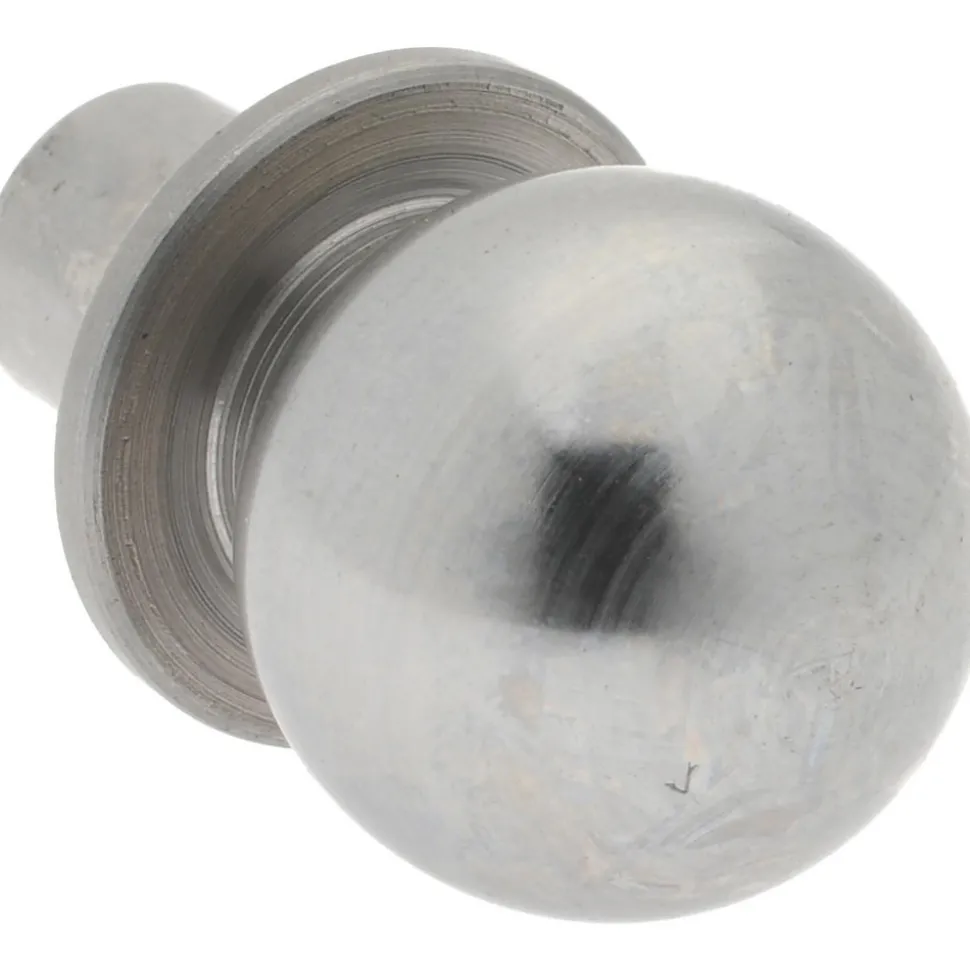

Shoulder Tooling Ball: Inspection, 1/2″ Ball Dia, 1/4″ Shank Dia, Thread
Original price was: 53,00 $.38,99 $Current price is: 38,99 $.
Specifications
| Tooling Ball Style: Inspection | Shoulder: Yes |
| Breakaway: No | Tapped Shank: Yes |
| Heat-treated: Yes | Material: Steel |
| Shank Diameter (Inch): 1/4 | Shank Diameter (Decimal Inch): 0.2500 |
| Shank Diameter: 1.7490 | Shank Attachment Type: Thread |
| Ball Diameter (Decimal Inch): 0.5000 | Ball Diameter (Inch): 1/2 |
| Ball Center to Shank Bottom (Inch): 5/8 | Shoulder Diameter (Decimal Inch): 0.4900 |
| Hole Thread Size: 6-32 | Hole Depth (Inch): 1/4 |
| Ball Center to Shoulder Bottom (Decimal Inch): 0.3125 | Ball and Shank Concentricity (Decimal Inch): 0.0002 |
| UNSPSC Code: 27112818 | Country of Origin: China |
| Tooling Ball Style: Inspection | |
| Shoulder: Yes | |
| Breakaway: No | |
| Tapped Shank: Yes | |
| Heat-treated: Yes | |
| Material: Steel | |
| Shank Diameter (Inch): 1/4 | |
| Shank Diameter (Decimal Inch): 0.2500 | |
| Shank Diameter: 1.7490 | |
| Shank Attachment Type: Thread | |
| Ball Diameter (Decimal Inch): 0.5000 | |
| Ball Diameter (Inch): 1/2 | |
| Ball Center to Shank Bottom (Inch): 5/8 | |
| Shoulder Diameter (Decimal Inch): 0.4900 | |
| Hole Thread Size: 6-32 | |
| Hole Depth (Inch): 1/4 | |
| Ball Center to Shoulder Bottom (Decimal Inch): 0.3125 | |
| Ball and Shank Concentricity (Decimal Inch): 0.0002 | |
| UNSPSC Code: 27112818 | |
| Country of Origin: China |
| MSC# | 64254899 |
| Mfr# | 826875-G |
| Big Book# | 1362 |
