Sale!

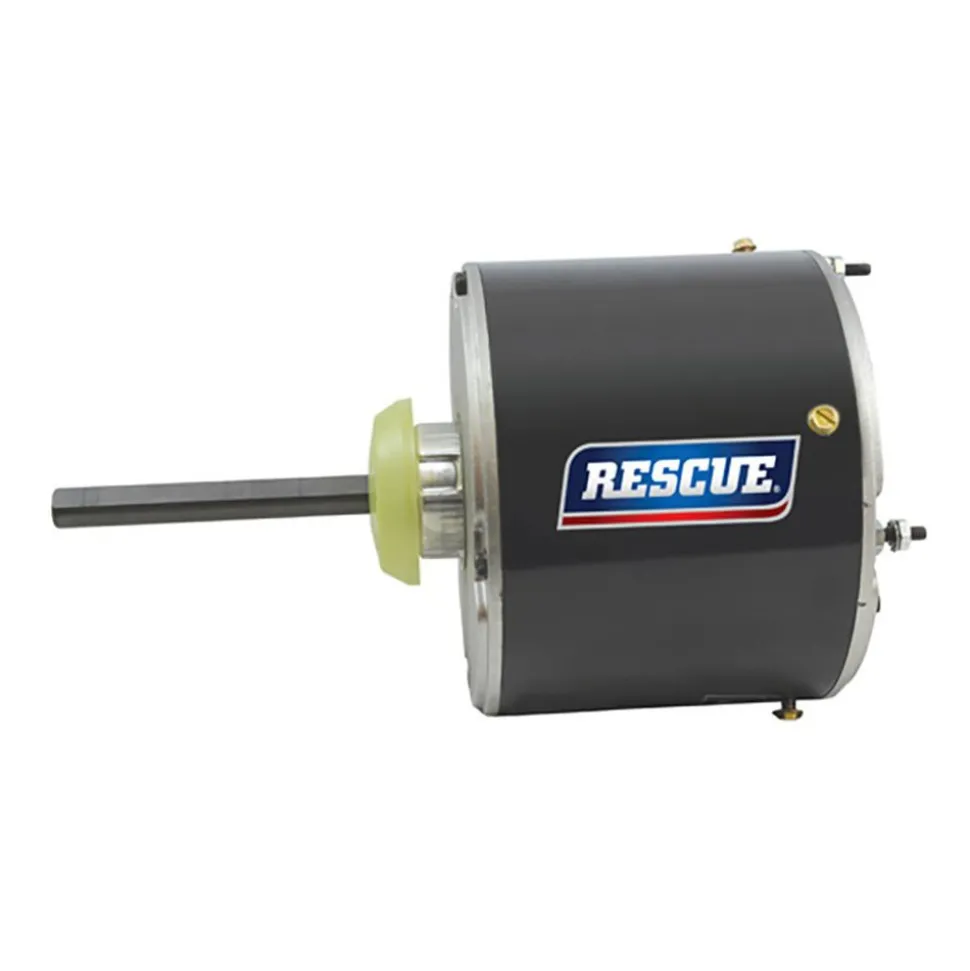

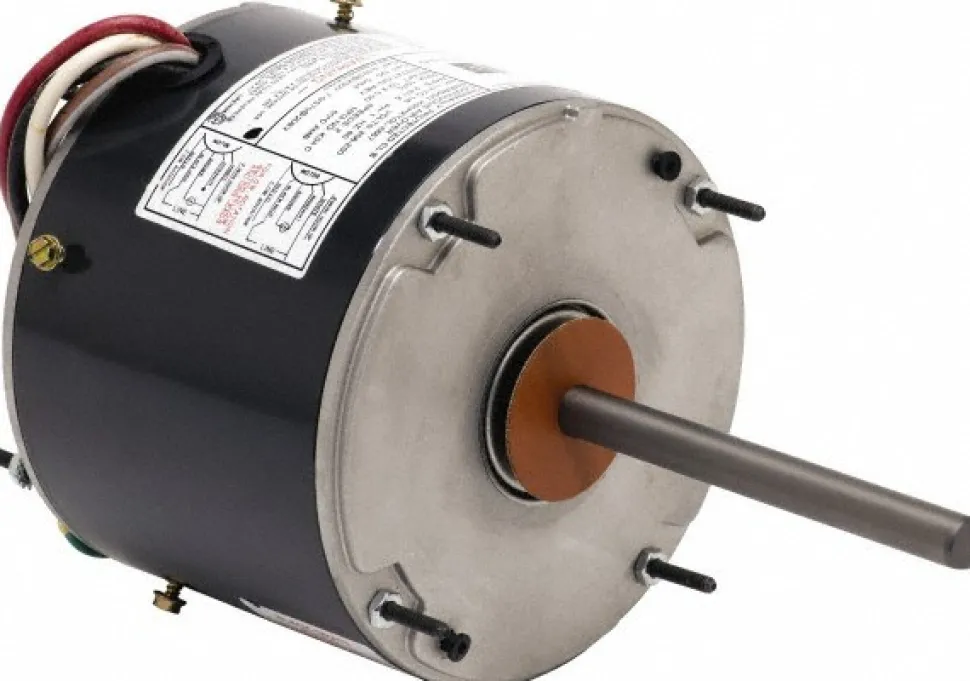

Single Phase Permanent Split Capacitor (PSC) AC Motor: TEAO Enclosure
Original price was: 164,00 $.109,99 $Current price is: 109,99 $.
Specifications
| Motor Type: Single Phase Permanent Split Capacitor (PSC) | Phase: Single |
| Enclosure Style: TEAO | Horsepower: 1/3; 1/4; 1/5; 1/6 |
| Name Plate RPMs: 1075 | Voltage: 208-230V |
| Frequency (Hz – 0 Decimals): 60 | Frame Size: 48YZ |
| Mount Style: Stud; Band | Mount Type: Stud; Band |
| Bearing Type: Ball | Number Of Phases: 1 |
| Full Load Amperage: 2.6/1.8 | Insulation Class: B |
| Shaft Diameter x Length: 1/2 x 5 in | Full Load Efficiency Rating: 63.30 |
| Service Factor Rating: 1.00 | Motor Rotation: Reversible |
| Applications: HVAC | Overall Length (Decimal Inch): 9.6000 |
| Dayton Part Number: – | Ambient Operating Temperature (F): 60 |
| Thermal Protection: Auto | Number Of Speeds: 2 |
| Type: TEAO | UNSPSC Code: 26111600 |
| Product Service Code: 6105 | |
| Motor Type: Single Phase Permanent Split Capacitor (PSC) | |
| Phase: Single | |
| Enclosure Style: TEAO | |
| Horsepower: 1/3; 1/4; 1/5; 1/6 | |
| Name Plate RPMs: 1075 | |
| Voltage: 208-230V | |
| Frequency (Hz – 0 Decimals): 60 | |
| Frame Size: 48YZ | |
| Mount Style: Stud; Band | |
| Mount Type: Stud; Band | |
| Bearing Type: Ball | |
| Number Of Phases: 1 | |
| Full Load Amperage: 2.6/1.8 | |
| Insulation Class: B | |
| Shaft Diameter x Length: 1/2 x 5 in | |
| Full Load Efficiency Rating: 63.30 | |
| Service Factor Rating: 1.00 | |
| Motor Rotation: Reversible | |
| Applications: HVAC | |
| Overall Length (Decimal Inch): 9.6000 | |
| Dayton Part Number: – | |
| Ambient Operating Temperature (F): 60 | |
| Thermal Protection: Auto | |
| Number Of Speeds: 2 | |
| Type: TEAO | |
| UNSPSC Code: 26111600 | |
| Product Service Code: 6105 |
| MSC# | 58757675 |
| Mfr# | 5462 |
| Big Book# | 3866 |
