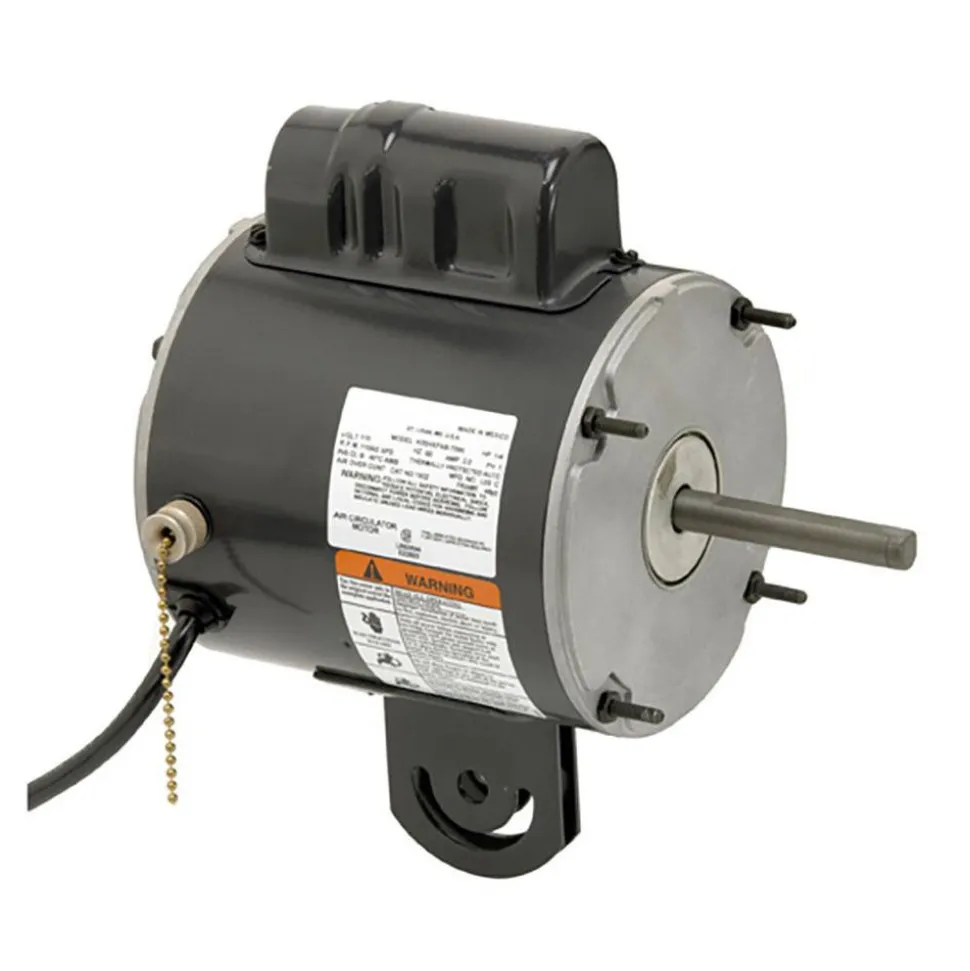

Single Phase Permanent Split Capacitor (PSC) AC Motor: TEAO Enclosure
Original price was: 549,00 $.132,89 $Current price is: 132,89 $.
Specifications
| Motor Type: Single Phase Permanent Split Capacitor (PSC) | Phase: Single |
| Enclosure Style: TEAO | Horsepower: 1/2 |
| Name Plate RPMs: 1075 | Voltage: 115V |
| Frequency (Hz – 0 Decimals): 60 | Frame Size: 48YZ |
| Mount Style: Yoke | Mount Type: Yoke |
| Bearing Type: Ball | Number Of Phases: 1 |
| Full Load Amperage: 7.2 | Insulation Class: B |
| Shaft Diameter x Length: 5/8 x 2-1/2 in | Full Load Efficiency Rating: 68.70 |
| Service Factor Rating: 1.00 | Motor Rotation: Reversible |
| Applications: HVAC | Overall Length (Decimal Inch): 10.8000 |
| Dayton Part Number: 4M197 | Ambient Operating Temperature (F): 40 |
| Thermal Protection: Auto | Number Of Speeds: 2 |
| Type: TEAO | UNSPSC Code: 26111600 |
| Product Service Code: 6105 | |
| Motor Type: Single Phase Permanent Split Capacitor (PSC) | |
| Phase: Single | |
| Enclosure Style: TEAO | |
| Horsepower: 1/2 | |
| Name Plate RPMs: 1075 | |
| Voltage: 115V | |
| Frequency (Hz – 0 Decimals): 60 | |
| Frame Size: 48YZ | |
| Mount Style: Yoke | |
| Mount Type: Yoke | |
| Bearing Type: Ball | |
| Number Of Phases: 1 | |
| Full Load Amperage: 7.2 | |
| Insulation Class: B | |
| Shaft Diameter x Length: 5/8 x 2-1/2 in | |
| Full Load Efficiency Rating: 68.70 | |
| Service Factor Rating: 1.00 | |
| Motor Rotation: Reversible | |
| Applications: HVAC | |
| Overall Length (Decimal Inch): 10.8000 | |
| Dayton Part Number: 4M197 | |
| Ambient Operating Temperature (F): 40 | |
| Thermal Protection: Auto | |
| Number Of Speeds: 2 | |
| Type: TEAO | |
| UNSPSC Code: 26111600 | |
| Product Service Code: 6105 |
| MSC# | 04176921 |
| Mfr# | 1924 |
| Big Book# | 3867 |
