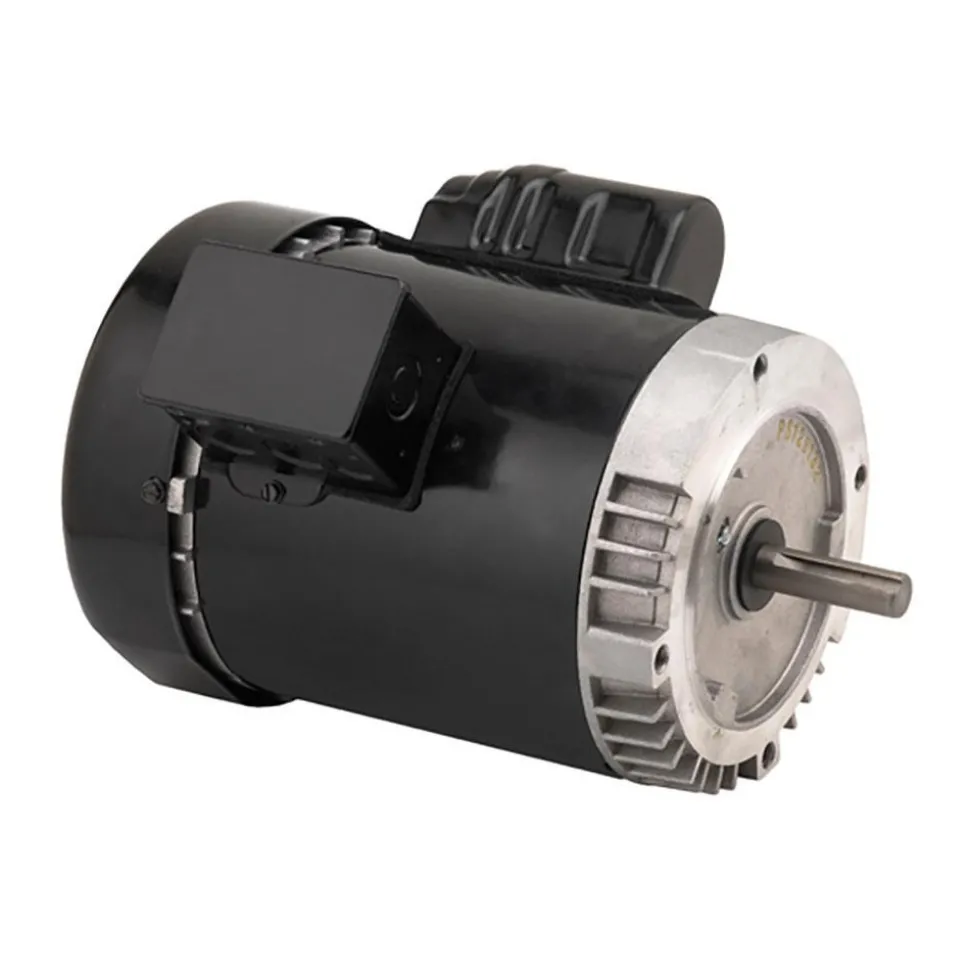

Single Phase Permanent Split Capacitor (PSC) AC Motor: TEFC Enclosure
130,89 $
Specifications
| Motor Type: Single Phase Permanent Split Capacitor (PSC) | Phase: Single |
| Enclosure Style: TEFC | Horsepower: 1/4 |
| Name Plate RPMs: 1725 | Voltage: 115V; 208-230V |
| Frequency (Hz – 0 Decimals): 60 | Frame Size: 56C |
| Mount Style: C-Face | Mount Type: C-Face |
| Bearing Type: Ball | Number Of Phases: 1 |
| Insulation Class: B | Shaft Diameter x Length: 5/8 x 2-1/16 in |
| Full Load Efficiency Rating: 59.30 | Service Factor Rating: 1.15 |
| Motor Rotation: Reversible | Applications: General Purpose |
| Overall Length (Decimal Inch): 11.5300 | Dayton Part Number: 6K975 |
| Ambient Operating Temperature (F): 40 | Thermal Protection: None |
| Number Of Speeds: 1 | Type: TEFC |
| UNSPSC Code: 26111600 | Product Service Code: 6105 |
| Motor Type: Single Phase Permanent Split Capacitor (PSC) | |
| Phase: Single | |
| Enclosure Style: TEFC | |
| Horsepower: 1/4 | |
| Name Plate RPMs: 1725 | |
| Voltage: 115V; 208-230V | |
| Frequency (Hz – 0 Decimals): 60 | |
| Frame Size: 56C | |
| Mount Style: C-Face | |
| Mount Type: C-Face | |
| Bearing Type: Ball | |
| Number Of Phases: 1 | |
| Insulation Class: B | |
| Shaft Diameter x Length: 5/8 x 2-1/16 in | |
| Full Load Efficiency Rating: 59.30 | |
| Service Factor Rating: 1.15 | |
| Motor Rotation: Reversible | |
| Applications: General Purpose | |
| Overall Length (Decimal Inch): 11.5300 | |
| Dayton Part Number: 6K975 | |
| Ambient Operating Temperature (F): 40 | |
| Thermal Protection: None | |
| Number Of Speeds: 1 | |
| Type: TEFC | |
| UNSPSC Code: 26111600 | |
| Product Service Code: 6105 |
| MSC# | 76507268 |
| Mfr# | T14C2JCR |
| Big Book# | 3862 |
