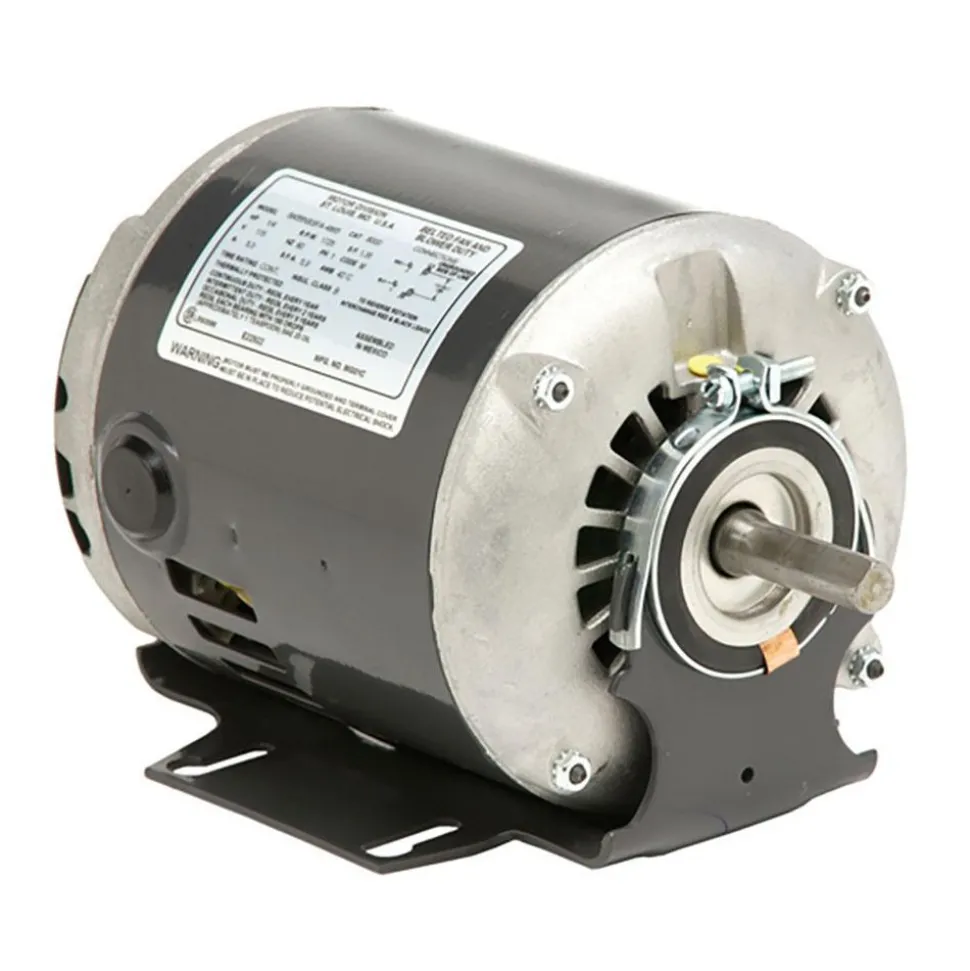

Single Phase Split Phase AC Motor: ODP Enclosure

120,89 $

Specifications

Motor Type: Single Phase Split Phase	Phase: Single
Enclosure Style: ODP	Horsepower: 1/6
Name Plate RPMs: 1725	Voltage: 115V; 208-230V
Frequency (Hz – 0 Decimals): 60	Frame Size: 48Y
Mount Style: Cradle; Cradle Base	Mount Type: Cradle
Bearing Type: Ball	Number Of Phases: 1
Full Load Amperage: 3.6/1.7 – 1.8	Insulation Class: B
Shaft Diameter x Length: 1/2 x 1-1/2 in	Full Load Efficiency Rating: 58.40
Service Factor Rating: 1.35	Motor Rotation: Reversible
Applications: HVAC	Overall Length (Decimal Inch): 8.4400
Dayton Part Number: 3M009	Ambient Operating Temperature (F): 40
Thermal Protection: Auto	Number Of Speeds: 1
Type: ODP	UNSPSC Code: 26111600
Product Service Code: 6105
Motor Type: Single Phase Split Phase
Phase: Single
Enclosure Style: ODP
Horsepower: 1/6
Name Plate RPMs: 1725
Voltage: 115V; 208-230V
Frequency (Hz – 0 Decimals): 60
Frame Size: 48Y
Mount Style: Cradle; Cradle Base
Mount Type: Cradle
Bearing Type: Ball
Number Of Phases: 1
Full Load Amperage: 3.6/1.7 – 1.8
Insulation Class: B
Shaft Diameter x Length: 1/2 x 1-1/2 in
Full Load Efficiency Rating: 58.40
Service Factor Rating: 1.35
Motor Rotation: Reversible
Applications: HVAC
Overall Length (Decimal Inch): 8.4400
Dayton Part Number: 3M009
Ambient Operating Temperature (F): 40
Thermal Protection: Auto
Number Of Speeds: 1
Type: ODP
UNSPSC Code: 26111600
Product Service Code: 6105
